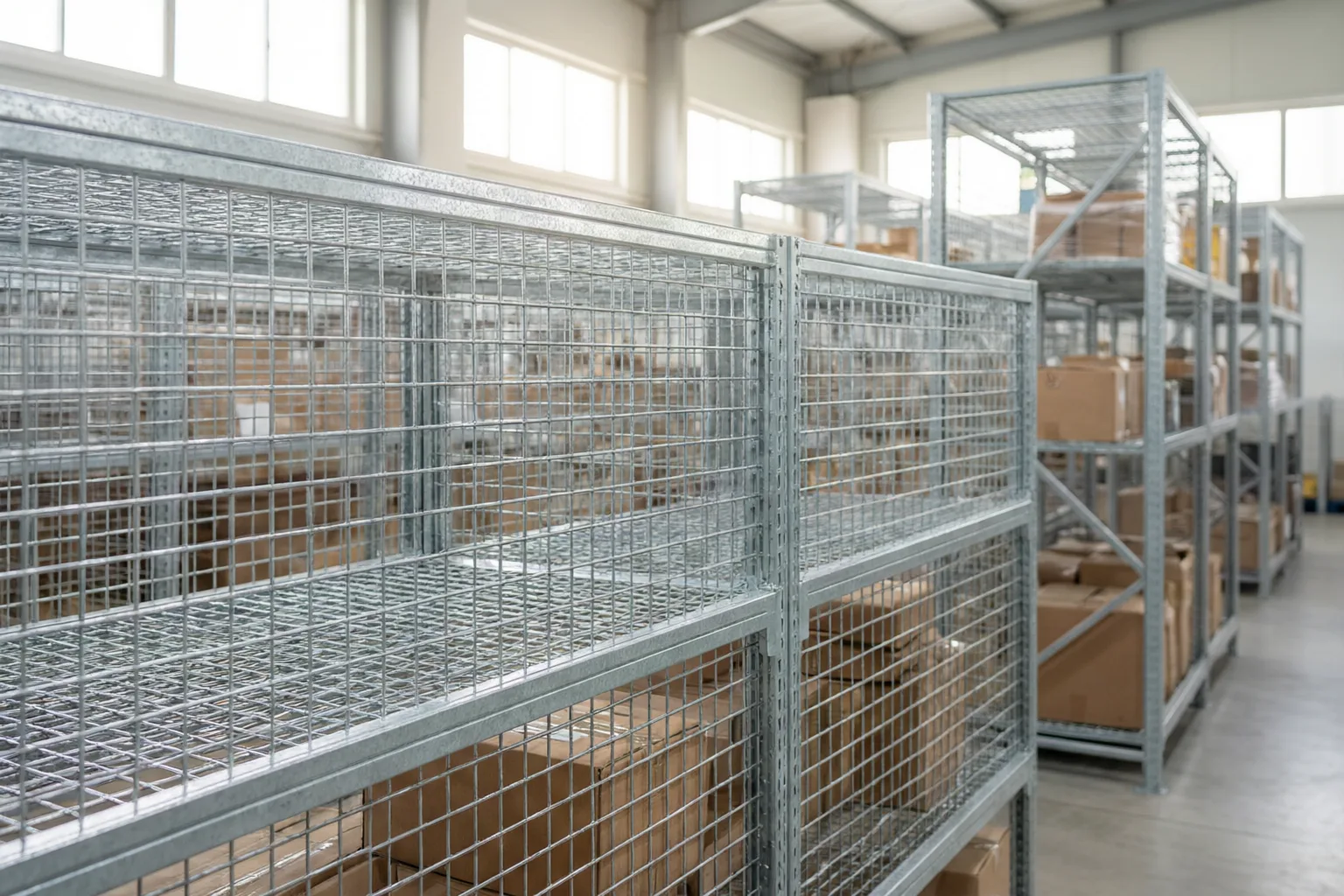

Wire Mesh Storage: Galvanized Shelving Panels & Racks
Source wire mesh storage panels and cages in galvanized, PVC-coated, or stainless steel. Compare mesh size, wire gauge, and load ratings. Get a factory quote.
View SpecificationsWire Mesh Storage Specifications
Wire mesh storage is defined by five variables: opening size, wire diameter, material, finish, and panel format. State all five in every RFQ so the panel matches your rack, load, and environment the first time.
Square openings from 25x25 mm to 150x150 mm, plus rectangular apertures, chosen so items stay on the shelf and never slip through a wire mesh storage panel
1.2-6.0 mm low-carbon steel wire for welded wire mesh storage panels, sized to the intended shelf load
Low-carbon steel wire as standard; 304 and 316 stainless steel for hygienic, wet, or food-contact storage
Electro galvanized, hot-dip galvanized, and PVC-coated wire mesh storage routes for indoor or outdoor duty
Flat panels, angle-edge shelf inserts, embossed decking, bin boxes, and roll stock cut to rack dimensions; flattened and embossed anti-slip surfaces available for vibrating or inclined shelves
Galvanized wire per ASTM A641, welded steel wire fabric per ASTM A185, and hot-dip coating per ISO 1461
Select one or more specifications. Your choices will be included in the quote request.
0 specs selected
| Opening size | Wire diameter | Typical shelf load | Best for and RFQ note | |
|---|---|---|---|---|
| 25x25 mm | 1.2-2.0 mm | Light, up to 40 kg per panel | Small parts and tool storage where items must not fall through. State panel length, width, and load in the RFQ. | |
| 50x50 mm | 2.0-3.0 mm | Medium, up to 100 kg per panel | General warehouse wire mesh storage shelving. The most common opening for rack decking. | |
| 75x75 mm | 2.5-4.0 mm | Medium-heavy, up to 180 kg per panel | Boxes, cartons, and bulk storage where airflow and visibility matter more than small-part retention. | |
| 100x100 mm | 3.0-5.0 mm | Heavy, up to 300 kg per panel | Pallet support, heavy cartons, and industrial racking for wire mesh storage. Confirm beam spacing in the RFQ. | |
| 150x150 mm | 4.0-6.0 mm | Extra heavy, up to 500 kg per panel | Structural wire mesh storage cages and heavy-duty rack decks with welded frame edges. |
Common Panel Sizes: Wire Mesh Storage Shelving
Typical stock wire mesh storage shelf panels in welded construction. Custom lengths, widths, and edge styles are available at MOQ; confirm tolerance and finish at RFQ.
| Panel size (mm) | Opening (mm) | Wire (mm) | Typical load | Common use | |
|---|---|---|---|---|---|
| 900 x 400 | 50x50 | 2.5 | 80 kg | Standard warehouse shelf deck | |
| 900 x 500 | 50x50 | 3.0 | 100 kg | General rack shelf insert | |
| 1200 x 400 | 75x75 | 3.0 | 140 kg | Long-span storage shelving | |
| 1200 x 600 | 100x100 | 4.0 | 220 kg | Heavy carton and bin storage | |
| 1500 x 600 | 100x100 | 5.0 | 300 kg | Industrial rack decking | |
| 1800 x 600 | 150x150 | 5.0 | 400 kg | Structural storage cage floor |
Choosing the Finish for Wire Mesh Storage
Finish decides rust resistance, appearance, and price. Match the coating to the environment before ordering wire mesh storage panels.
| Finish | Coating | Environment fit | Typical storage duty | |
|---|---|---|---|---|
| Electro galvanized | Zinc plating, thin and smooth | Indoor, low-humidity warehouses | Low-cost wire mesh storage shelving where the air is dry | |
| Hot-dip galvanized | Thick zinc layer, 40-85 micron | Outdoor, humid, and wash-down areas | Outdoor wire mesh storage cages, yard storage, and farms | |
| PVC coated | PVC fused over zinc | Indoor and outdoor with rough handling | Home and garage storage racks, retail displays, coated mesh bins | |
| Stainless steel | No coating, alloy protected | Wet, hygienic, food-contact duty | Cold rooms, clean rooms, and food industry storage |
Wire Mesh Storage by Application
A practical starting point for choosing opening size and finish for wire mesh storage by use case. Confirm the stored item size and load before finalizing the panel.
| Application | Opening size | Finish | Why | |
|---|---|---|---|---|
| Warehouse rack decking | 50x50 or 100x100 mm | Electro or hot-dip galvanized | Airflow, sprinkler penetration, and visible stock levels | |
| Garage and workshop | 25x25 or 50x50 mm | PVC coated or electro galvanized | Small parts stay put; coated mesh resists scuffs | |
| Home and kitchen | 25x25 mm | PVC coated or stainless | Safe for food-adjacent storage and easy to wipe clean | |
| Retail display | 25x25 or 50x50 mm | PVC coated | Clean appearance and quick shelf restocking | |
| Outdoor yard storage | 50x50 or 75x75 mm | Hot-dip galvanized | Rust resistance through rain and humidity | |
| Industrial cages | 100x100 or 150x150 mm | Hot-dip galvanized | Heavy loads with structural welded frames |
Wire Mesh Storage vs. Alternative Shelving
Compare shelf materials by load, moisture resistance, visibility, and cost. Wire mesh storage wins where airflow, visibility, and cleanability matter.
| Option | Load and durability | Moisture and rust | Visibility and airflow | Relative cost | |
|---|---|---|---|---|---|
| Solid wood shelving | Good short-term load, warps and splits with moisture; susceptible to insects | Poor; swells, molds, and rots in damp spaces | None; blocks sight lines and airflow | Low to medium, plus replacement cycles | |
| Plastic shelving | Limited load; stiffeners crack and shelves sag over time | Good moisture resistance but degrades in sunlight and heat | Solid or perforated; limited airflow | Low upfront, short service life | |
| Solid steel shelving | High load with heavy material cost | Good when painted or coated; rusts at scratches and edges | None; heavy panels hide stock and trap dust | High material and freight weight | |
| Welded wire mesh storage | High load per weight with welded joints that hold under vibration | Galvanized, PVC-coated, or stainless routes resist rust for years | Full visibility and airflow; sprinkler-compatible | Medium; low freight from nested packing |
Panel Weight & Open Area Reference
Estimate panel weight and open area for your wire mesh storage panels when calculating freight, container loading, and airflow. Values are estimates; confirm the exact weight per drawing before ordering.
| Opening size | Wire diameter (mm) | Open area (%) | Panel weight (kg/m²) | Typical use | |
|---|---|---|---|---|---|
| 25x25 mm | 1.2 | 66 | 1.8 | Light small-part storage | |
| 25x25 mm | 2.0 | 58 | 4.0 | Standard small-part shelves | |
| 50x50 mm | 2.0 | 76 | 2.6 | General warehouse decking | |
| 50x50 mm | 3.0 | 68 | 5.0 | Heavier general-purpose shelves | |
| 75x75 mm | 3.0 | 79 | 3.6 | Carton and bulk storage | |
| 100x100 mm | 4.0 | 82 | 4.8 | Heavy-duty rack decking | |
| 150x150 mm | 5.0 | 86 | 5.4 | Structural storage cage floors |
Coating Thickness & Salt Spray Reference
Coating thickness sets rust life for wire mesh storage. Ask for the zinc weight in g/m2 and the salt spray test hours on the certificate before accepting a galvanized panel.
| Finish | Coating thickness | Salt spray resistance | Typical service life | Best for | |
|---|---|---|---|---|---|
| Electro galvanized | 5-10 micron zinc plating | 24-72 hours | 3-5 years indoor | Dry warehouses and shops | |
| Hot-dip galvanized | 40-85 micron (275-610 g/m2) | 500+ hours | 15-25 years outdoor | Outdoor yards, farms, humid sites | |
| PVC coated | 0.3-0.5 mm PVC over zinc | 500+ hours | 10-15 years mixed duty | Homes, garages, retail display | |
| Stainless 304/316 | No coating; alloy protected | Not applicable | 20+ years | Food plants, cold rooms, coastal sites |
Quick Load Guide by Shelf Span
Select the wire diameter from the clear span between rack beams for wire mesh storage shelves. Capacities assume evenly distributed loads; reduce them by 50% for point loads or dynamic impact.
| Shelf span (mm) | Opening (mm) | Recommended wire (mm) | Est. capacity (kg) | Note | |
|---|---|---|---|---|---|
| 800 | 50x50 | 2.0 | 90 | Even load, light duty | |
| 1000 | 50x50 | 2.5 | 110 | General warehouse shelves | |
| 1200 | 75x75 | 3.0 | 150 | Carton and bin storage | |
| 1500 | 100x100 | 4.0 | 260 | Heavy rack decking | |
| 1800 | 100x100 | 5.0 | 360 | Use angle-edge frame panels |
Wire Mesh Storage Types We Source
Three construction routes cover almost every storage duty. Compare rigidity, finish, and price before you specify wire mesh storage.
Welded wire mesh shelf panels
The workhorse of wire mesh storage: square-grid welded panels from 25x25 mm to 150x150 mm, cut to rack size with plain or angle edges.
Galvanized storage cages and bins
Hot-dip galvanized wire mesh storage cages, bin boxes, and security lockers with welded frames for heavy duty wire mesh storage of bulky or valuable stock.
PVC-coated mesh for indoor storage
PVC-coated wire mesh storage racks and bins with a soft, scuff-resistant surface for homes, retail, and dry warehouses.
Related in-depth guides
How to Select the Right Wire Mesh Storage
Start from the stored item and the load, then fix opening size, wire diameter, finish, and panel format. A complete wire mesh storage RFQ avoids re-quotes.
By stored item size
Small parts and tools need 25x25 mm openings; boxes and cartons suit 50x50 to 100x100 mm. Choose the opening that keeps every stored item on a wire mesh storage shelf.
By load per shelf
Estimate the heaviest shelf, divide by the panel area, and pick the wire diameter from the load table. Heavier wire costs little more than a collapse.
Indoor or outdoor
Electro galvanized wire mesh storage suits dry indoor air; hot-dip galvanized or stainless handles humidity, rain, and wash-down areas.
Plain or angle edge
Plain panels drop into existing rack beams; angle-edge shelf inserts sit on beams without clips. Match the edge style to your rack.
Open area and visibility
Larger openings mean lighter panels and better airflow, but items fall through. Balance visibility against the smallest item you store.
Coating weight and salt spray
Coating thickness sets rust life. Ask for the zinc weight per square meter and the salt spray hours before approving a galvanized panel.
Custom sizes and cutouts
Racks with columns, sprinkler heads, or odd spans need cutouts and partial panels. Send the rack drawing and we cut wire mesh storage to fit.
Stainless for hygiene
Cold rooms, food plants, and clean rooms should use 304 or 316 stainless wire mesh storage that survives wash-down without coating damage.
Welded frame or mesh only
Light shelves use mesh panels alone; heavy and security storage needs panels welded into angle frames with gussets.
Sample and batch consistency
Confirm opening tolerance, wire diameter, and coating on a sample, then lock the inspection standard before mass production so bulk wire mesh storage matches.
Quantity and MOQ
Stock panel sizes start from low minimums; custom cutouts and stainless routes carry higher minimums. Share quantity and destination for a confirmed schedule.
Anti-slip surface
Smooth wire lets small boxes slide on steep or vibrating shelves. Specify embossed or flattened mesh when slip is a risk.
Why Buyers Choose Wire Mesh Storage
Wire mesh storage remains the default shelving material in warehouses and homes for honest reasons: visibility, strength, and ventilation.
Full visibility of stored stock
Open mesh lets staff see inventory levels from the aisle, so picking and cycle counts take less time.
Strength without weight
Welded wire mesh storage panels carry heavy loads while staying light enough for one person to fit and move.
Dust-free and cleanable
Open panels let dust fall through instead of collecting, and coated wire mesh storage wipes down in minutes.
Airflow and fire safety
Mesh shelving circulates air around stored goods and lets sprinkler water reach lower racks in a fire.
Rust resistance that lasts
Hot-dip galvanized and PVC-coated wire mesh storage survives humid warehouses, garages, and outdoor yards for years.
Any size, cut to fit
Panels, cages, and bins are cut and welded to rack drawings with cutouts for columns and sprinklers.
Easy installation
Drop-in shelf inserts and bolt-together cages install without special tools or skilled labor, and panels and cages relocate just as easily when the storage layout changes.
Recyclable and durable
Steel wire mesh storage outlasts particleboard and plastic shelving and is fully recyclable at end of life.
Export-ready supply
Nested packing, coating certificates, and pre-shipment inspection support container delivery of wire mesh storage to any destination.
Where Wire Mesh Storage Is Used
Choose wire mesh storage when you need visible, ventilated, and cleanable shelving that keeps inventory findable and floors dust-free.
Warehouse and distribution
Wire mesh storage shelf panels deck racks, let sprinkler water through, and keep stock visible from the aisle for faster picking.
Garage and workshop
Galvanized and PVC-coated wire mesh storage holds tools, fasteners, and parts on wall shelves and mobile carts without dust buildup.
Home and kitchen
Compact wire mesh storage racks organize pantry goods, utensils, and linens with airflow that keeps stored items fresher.
Retail display
Open wire mesh storage shelving gives shops a clean backroom and display look while keeping pack quantities visible to staff.
Industrial racking
Heavy-duty wire mesh storage cages, bin boxes, and rack decks carry castings, spares, and work-in-progress in plants.
Agricultural and outdoor
Hot-dip galvanized wire mesh storage keeps feed, tools, and produce off the ground in barns, yards, and greenhouses.
Wire Mesh Storage Buying Mistakes to Avoid
Seven errors that cause sagging shelves, rust, or fit problems. Every one is avoidable at the RFQ stage.
Underestimating the load
A 50x50 mm panel with 2.0 mm wire is not a heavy-duty deck. State the worst-case shelf load, not the average, in the wire mesh storage RFQ.
Choosing thin electro galvanizing outdoors
Electro zinc plating rusts quickly in humidity and rain. Outdoor wire mesh storage needs hot-dip galvanized or stainless steel.
Oversized openings for small parts
Screws, fittings, and small boxes vanish through 100x100 mm mesh. Pick the opening from the smallest item, then confirm the load with thicker wire.
Ignoring panel-to-rack fit
A panel 10 mm too wide jams between beams; one too narrow drops through. Measure the clear span between beams before ordering.
Skipping the frame for heavy duty
Heavy or security storage needs panels welded into angle frames. Mesh-only wire mesh storage panels sag under concentrated loads.
Not verifying coating weight
"Galvanized" means little without the zinc weight. Confirm g/m2 and salt spray hours, or the coating may fail before the first year.
Overlooking weld quality
Weak welds open at the joints under vibration and overload. Check weld shear strength and require a weld test report for structural panels.
Measure, fit, secure, and inspect wire mesh storage panels correctly to protect loads and extend shelf life.

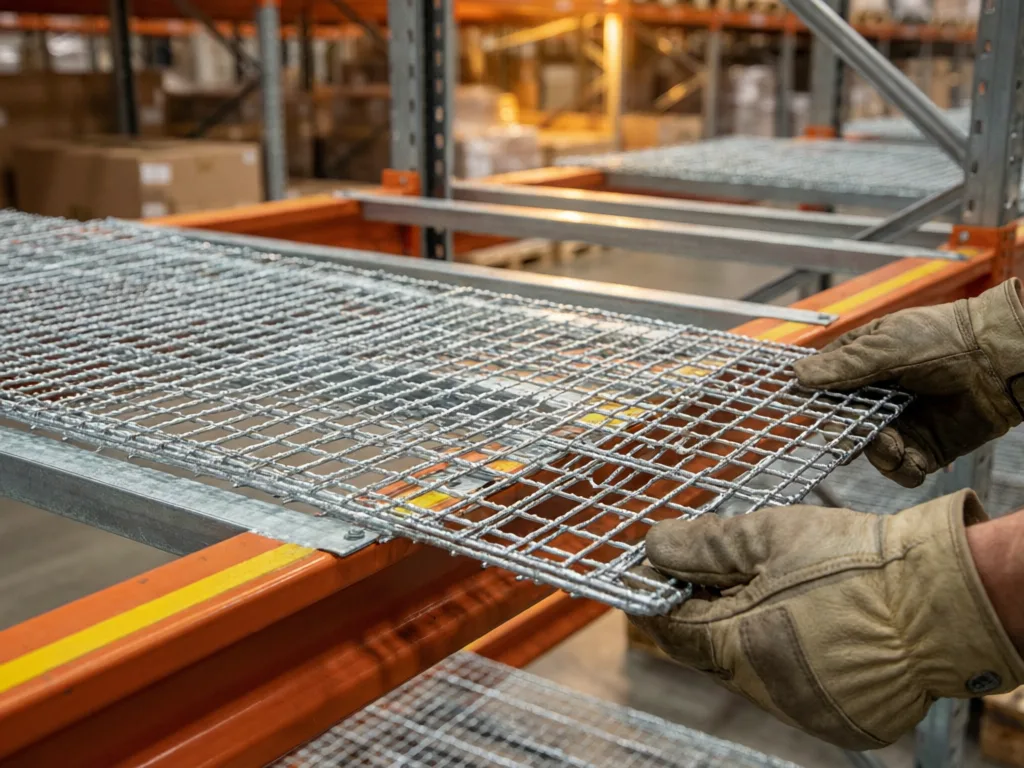

Installing Wire Mesh Storage
Measure the rack span
Measure the clear distance between beams in both directions. Panels should overlap the beam by at least 25 mm each side.
Fit and secure the panel
Drop the wire mesh storage panel onto the beam flanges, or clip angle-edge inserts, and secure with clips or ties where the rack is mobile.
Load evenly
Spread weight across the panel and keep point loads off the center span. Heavy items sit at the beam ends, not mid-panel.
Inspect and maintain
Check welds, coating, and sag after the first heavy load and every six months. Repair damaged coating promptly on outdoor wire mesh storage.
Wire Mesh Storage Packing for Export
Packing keeps panels flat, coating intact, and edges protected through transit and receiving inspection.
Flat-stacked and protected
Wire mesh storage panels are stacked flat with separators, edge guards, and waterproof wrapping to prevent crushing and coating scuffs; flat and nested stacking minimizes container volume, cutting freight cost per panel.
Rolls wound on cores
Mesh rolls are wound on cores with kraft paper between layers and strapped against unwinding.
Palletized for container loading
Stacks and cartons pack to the container plan on pallets with corner guards and steel strapping.
Label by specification
Every package carries opening size, wire diameter, finish, dimensions, quantity, and production lot.
Certificates on request
Material certificates, zinc coating reports, and weld test reports accompany wire mesh storage shipments; SGS, BV, or TUV inspection is available.
Wire Mesh Storage in Service
Use scenarios show how opening size, finish, and format change by duty; they are not customer claims.

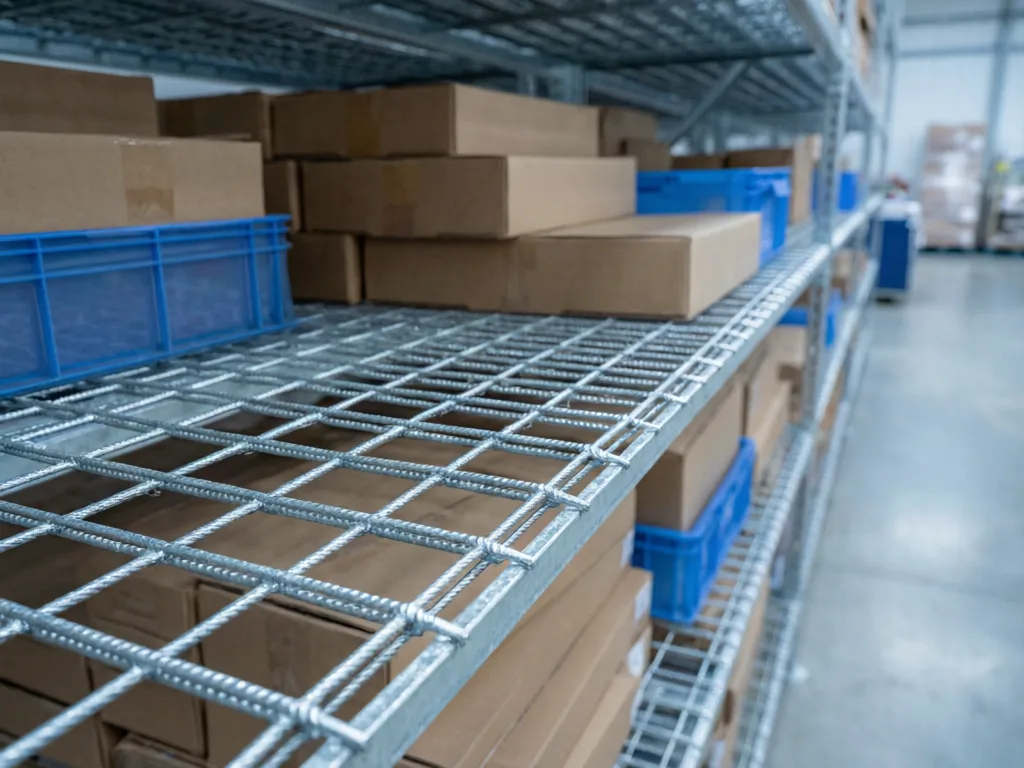

Warehouse rack decking
Hot-dip galvanized wire mesh rack decking in 1,200 x 600 mm panels, 100x100 mm opening with 4.0 mm wire carrying 250 kg per shelf, decking three-level racks for cartons and spares with sprinkler clearance.

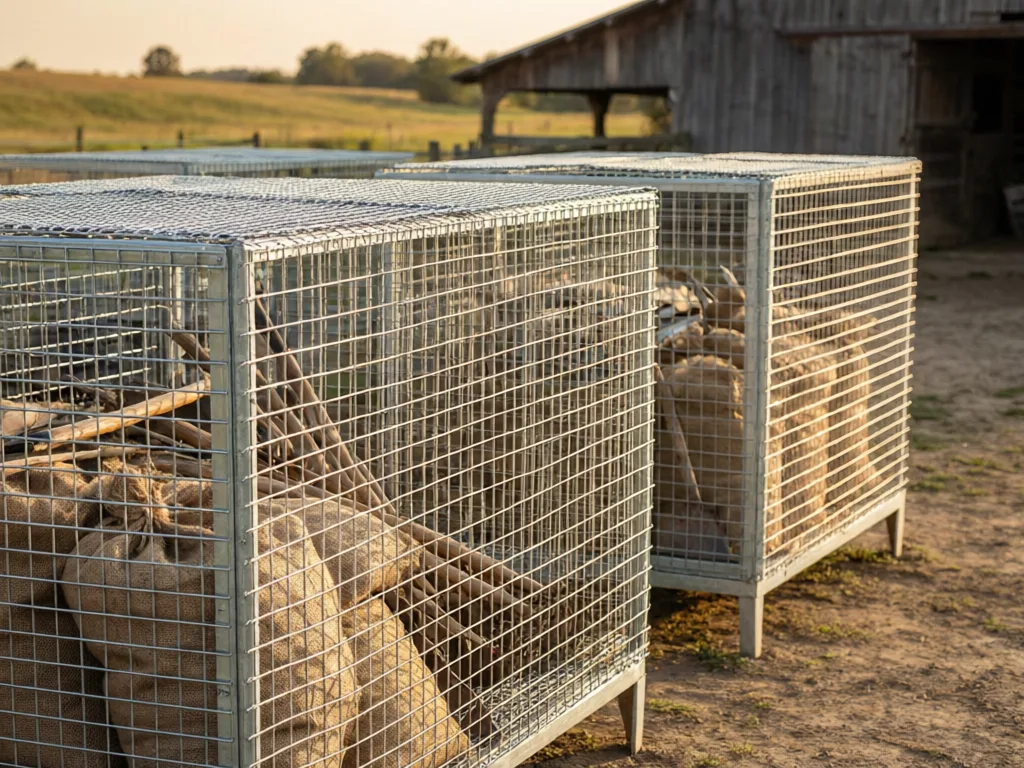

Farm and yard storage
Galvanized wire mesh storage cages in 2,000 x 1,000 mm panels, 75x75 mm opening with 3.0 mm wire holding feed bags and tools off the ground, with coated mesh lids against rain.

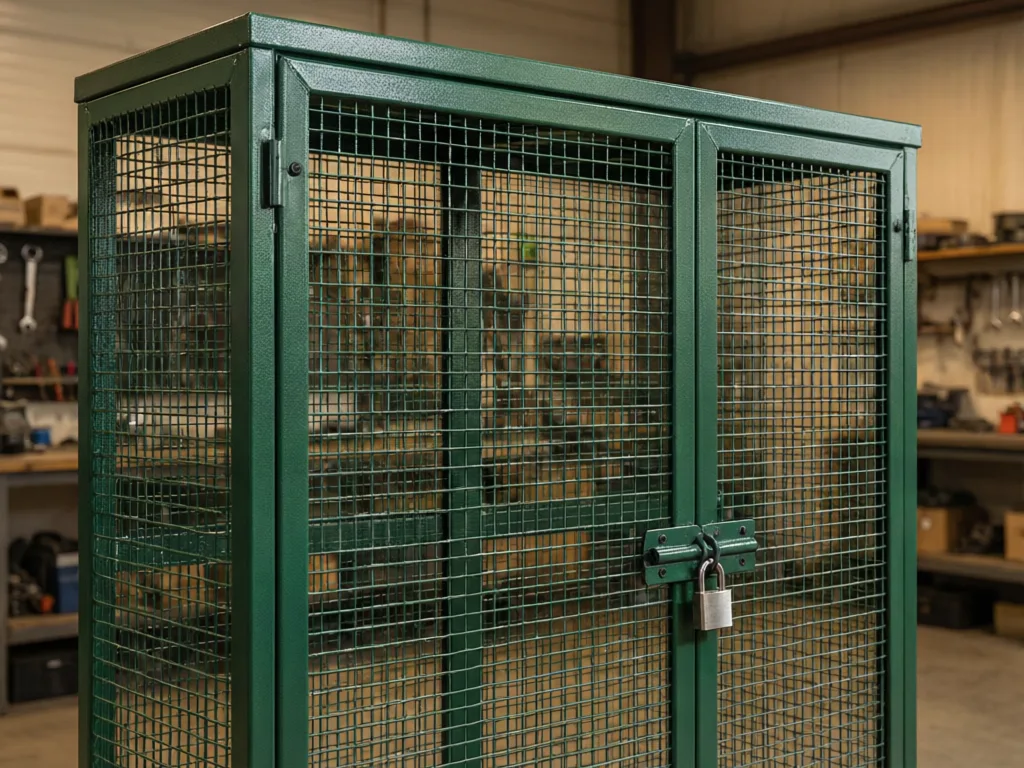

Security storage locker
PVC-coated wire mesh storage lockers at 1,800 x 900 x 400 mm with 50x50 mm opening, 3.0 mm wire, welded frames, and padlock hasps, storing tools and valuables in a shared workshop.

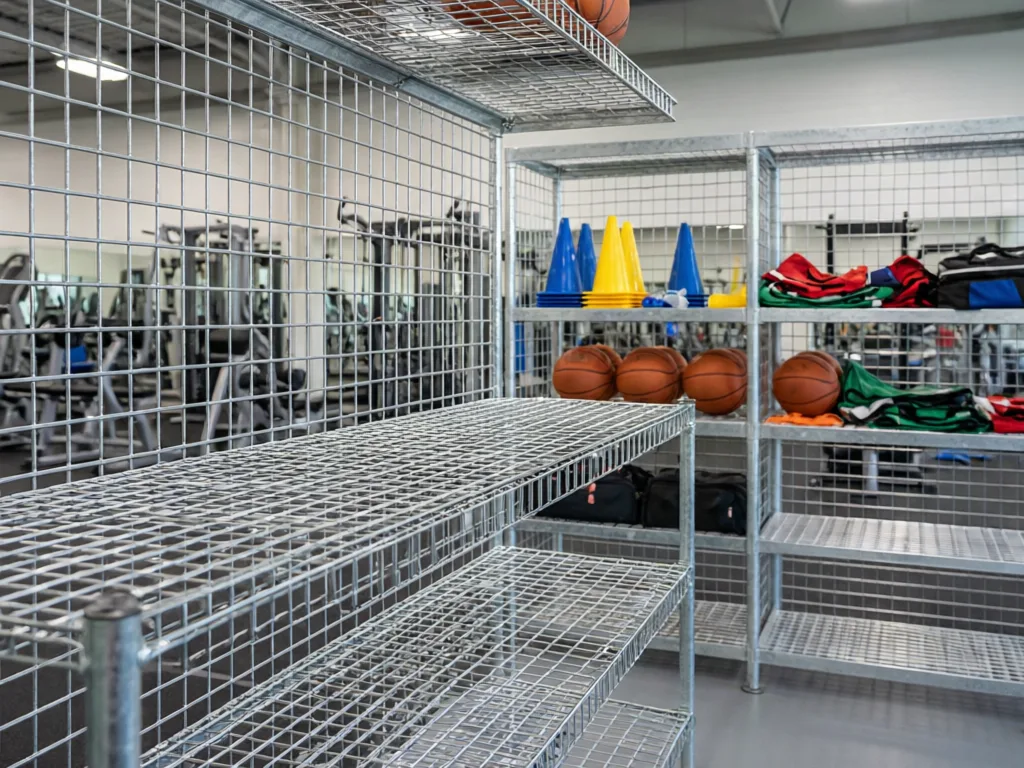

Sports facility equipment room
Electro galvanized wire mesh storage shelving in 900 x 400 mm shelves, 25x25 mm opening with 2.0 mm wire for balls, cones, and kit, keeping the equipment room ventilated and tidy.
Wire Mesh Storage Sourcing Resources
Compare welded mesh products, finishes, and related categories. Confirm dimensions and coating requirements before ordering.
