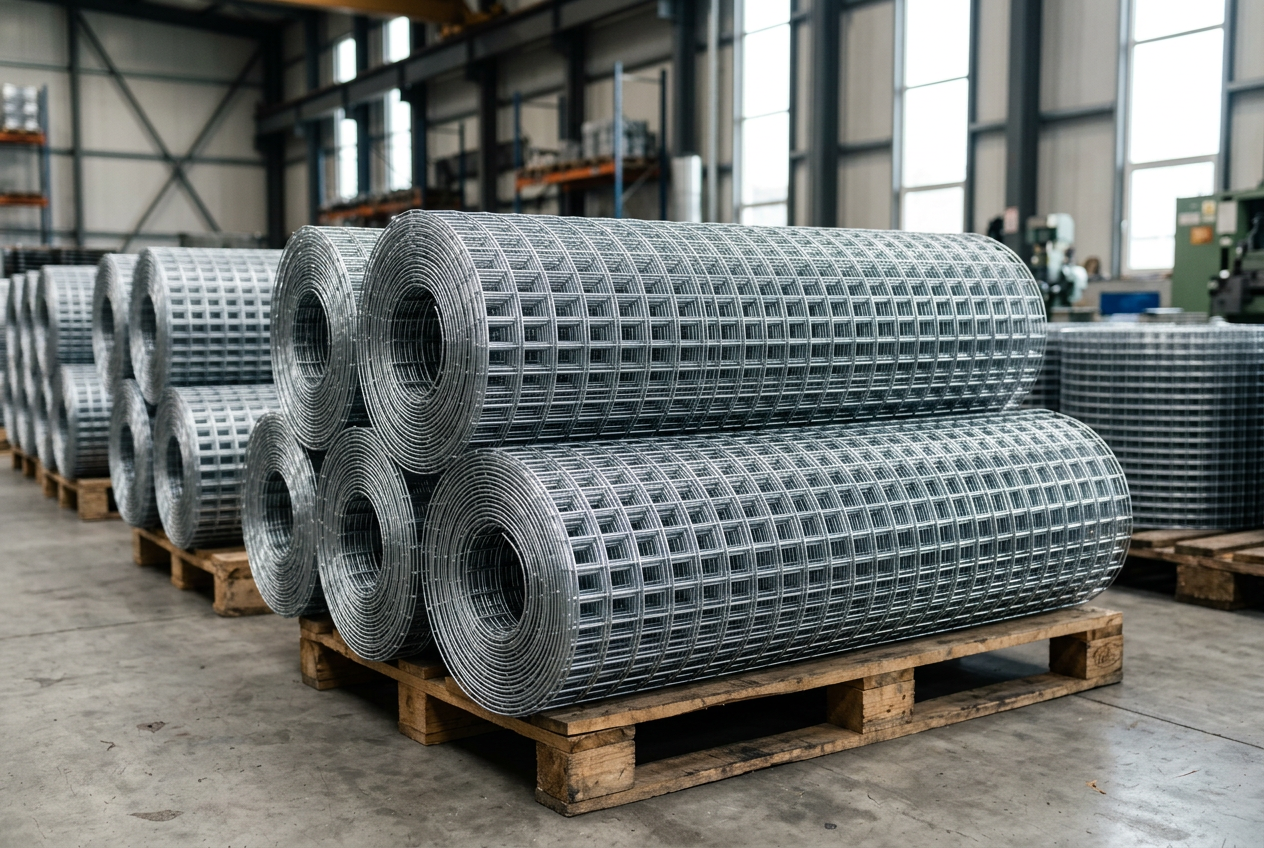

Galvanized Wire Mesh: Hot-Dip & Electro Zinc-Coated Supplier
Source galvanized wire mesh in hot-dip and electro zinc coatings. Compare welded and woven constructions, check coating weights, and request a factory quote.
View SpecificationsGalvanized Wire Mesh Coatings and Specifications
ASTM A641 and EN 10244-2 define zinc coatings on steel wire, while ASTM A123 and ISO 1461 cover hot-dip coatings on fabricated mesh. State the coating type, construction, mesh opening, wire diameter, dimensions, and quantity in every galvanized wire mesh RFQ.
Electro galvanized or hot-dip galvanized (GBW or GAW) per ASTM A641 and EN 10244-2
Welded, woven, crimped, or hexagonal galvanized wire mesh
Welded mesh from 1/4 inch upward; woven cloth from 2 to 60 mesh; hexagonal netting 1/2 to 2 inch
0.5 mm light netting wire through 4 mm heavy fence and gabion wire
Rolls 1 m or 48 in wide by 30 m long, panels, and cut-to-size pieces
Electro 10-30 g/m2 typical; hot-dip 45-300 g/m2 by wire diameter and standard class
Select one or more specifications. Your choices will be included in the quote request.
0 specs selected
| Coating route | Typical zinc mass | Expected service | Typical use and RFQ note | |
|---|---|---|---|---|
| Electro galvanized | 10-30 g/m2, bright smooth finish | Indoor and short-term outdoor; months to a few years outdoors | Economical galvanized wire mesh for indoor guards, shelving, and hardware cloth. State ASTM A641 class in the RFQ. | |
| Hot-dip galvanized after welding (GAW) | 45-300 g/m2, matte spangle finish | Long outdoor service; years to decades by environment | Fences, gabions, and agricultural mesh. The finished mesh is dipped, so zinc seals every weld joint. | |
| Galvanized wire before welding (GBW) | Coated wire per ASTM A641 Class 1 or 3; weld points lose zinc | Moderate outdoor service; welds may rust first | Lower-cost welded rolls for cages and fences. Accept light weld rust or specify GAW instead. | |
| PVC over galvanized core | Zinc core plus 0.4-0.8 mm PVC jacket | Extended outdoor and coastal service with color | Green or black fence mesh. Name the core coating class and jacket thickness in the RFQ. |
Common Stock Sizes: Galvanized Welded Wire Mesh
Typical stock specifications in electro and hot-dip finishes. Rolls are commonly 1 m or 48 in wide by 30 m long; panels typically 1 m x 2 m or 4 ft x 8 ft. Confirm wire diameter tolerance and coating mass at RFQ.
| Opening | Wire diameter (mm) | Gauge (approx.) | Form | Common finish | |
|---|---|---|---|---|---|
| 1/4 in x 1/4 in | 0.63 | 23 ga | Rolls | Electro galvanized hardware cloth | |
| 1/2 in x 1/2 in | 0.63-1.02 | 19-23 ga | Rolls | Electro or hot-dip | |
| 1 in x 1 in | 1.02-1.65 | 16-19 ga | Rolls and panels | Electro or hot-dip | |
| 1 in x 2 in | 1.65-2.11 | 14-16 ga | Rolls and panels | Hot-dip GAW for fencing | |
| 2 in x 2 in | 2.11-3.05 | 11-14 ga | Panels and rolls | Hot-dip GAW for fences and cages | |
| 2 in x 4 in | 2.5-4.0 | 8-12 ga | Panels | Hot-dip GAW for security and gabions |
Zinc Coating Standards Quick Reference
Match the standard to the product form: the wire before weaving or welding, or the fabricated mesh after. Confirm the standard edition and class in the purchase order.
| Standard | Scope | Coating basis | RFQ note | |
|---|---|---|---|---|
| ASTM A641 | Zinc-coated (galvanized) carbon steel wire | Coating mass by wire diameter, Class 1 and Class 3 | The default wire standard for GBW galvanized wire mesh | |
| EN 10244-2 | Steel wire zinc and zinc-alloy coatings | Coating mass classes by wire diameter | Common in European and export specifications | |
| ASTM A123 | Hot-dip zinc coatings on fabricated iron and steel products | Minimum coating thickness by material category | Applies to GAW mesh and fabricated frames | |
| ISO 1461 | Hot-dip galvanized coatings on fabricated articles | Coating thickness by steel thickness | International alternative to ASTM A123 | |
| ASTM A90 | Weight of coating test on zinc-coated articles | Weigh-strip-weigh method | Reference this test for coating verification on arrival |
How Long Does Galvanized Wire Mesh Last? Service Life by Environment
Reference years to first maintenance, based on typical zinc corrosion rates in ISO 14713. Life scales with coating mass; microclimate, trapped moisture, and abrasion shorten it. Confirm the coating mass class at RFQ.
| Coating level | Rural air | Suburban / urban | Industrial | Coastal / marine | |
|---|---|---|---|---|---|
| Electro galvanized 10-20 g/m2 | 1-3 years | 0.5-2 years | Under 1 year | Under 1 year | |
| Hot-dip light 60-100 g/m2 | 10-20 years | 5-12 years | 3-7 years | 2-5 years | |
| Hot-dip medium 150-250 g/m2 | 20-40 years | 12-25 years | 7-15 years | 5-10 years | |
| Hot-dip heavy 300+ g/m2 | 40-70+ years | 25-45 years | 15-25 years | 10-18 years |
Galvanized Welded Wire Mesh Weight Chart
Theoretical weight for freight and handling estimates: kg/m2 = d(mm)^2 x 0.00617 x (1000/pitch1 + 1000/pitch2). Zinc coating and tolerances add a few percent; confirm exact weight on the packing list.
| Opening | Wire diameter (mm) | Weight (kg/m2) | 1 m x 30 m roll (kg) | |
|---|---|---|---|---|
| 1/4 in x 1/4 in | 0.63 | 0.77 | 23 | |
| 1/2 in x 1/2 in | 0.80 | 0.62 | 19 | |
| 1/2 in x 1/2 in | 1.02 | 1.01 | 30 | |
| 1 in x 1 in | 1.65 | 1.32 | 40 | |
| 1 in x 2 in | 2.11 | 1.62 | 49 | |
| 2 in x 2 in | 2.50 | 1.52 | 46 | |
| 2 in x 2 in | 3.05 | 2.26 | 68 | |
| 2 in x 4 in | 4.00 | 2.92 | 88 |
Galvanized vs PVC-Coated vs Stainless Steel Wire Mesh
The three mainstream corrosion-protection routes for wire mesh. Start from the environment and the service-life target, then let cost decide between candidates.
| Factor | Galvanized | PVC-coated (galvanized core) | Stainless 304 / 316 | |
|---|---|---|---|---|
| First cost | Lowest | Low to medium | 3-5x galvanized | |
| Outdoor service life | 2-25+ years by coating mass | 10-25 years; the jacket shields the zinc | Decades; no coating to fail | |
| Coastal and chloride exposure | Shortened; heavy hot-dip only | Good; the jacket sheds salt | Best; choose 316 or 316L | |
| Hygiene and washdown | Not for food contact | Limited; jacket can trap grime at cuts | The food and pharmaceutical standard | |
| Appearance | Bright silver that dulls to matte gray | Green, black, or custom colors | Bright metallic that stays clean | |
| Repair and maintenance | Zinc-rich paint on cut ends | Patch the jacket and the zinc beneath | Passivate after welding or cutting | |
| Best for | Fences, farms, construction, gabions, guards | Decorative and coastal perimeters | Marine, food, chemical, and architectural duty |
Constructions We Source in Galvanized Steel
One coating family, many constructions. Compare welded, woven, crimped, and hexagonal galvanized wire mesh before you specify.
Galvanized welded wire mesh
Rigid fused-grid rolls and panels; the workhorse for fences, cages, guards, and reinforcement.
Galvanized woven wire mesh
Plain weave cloth for screening, sizing, and vent covers from 2 to 60 mesh.
Galvanized crimped wire mesh
Pre-crimped heavier wires lock openings for quarry screens and sizing decks on a budget.
Galvanized hexagonal netting
Chicken wire and gabion netting; double-twist hexagons conform to slopes and shapes.
Galvanized Wire Mesh Products
View all products

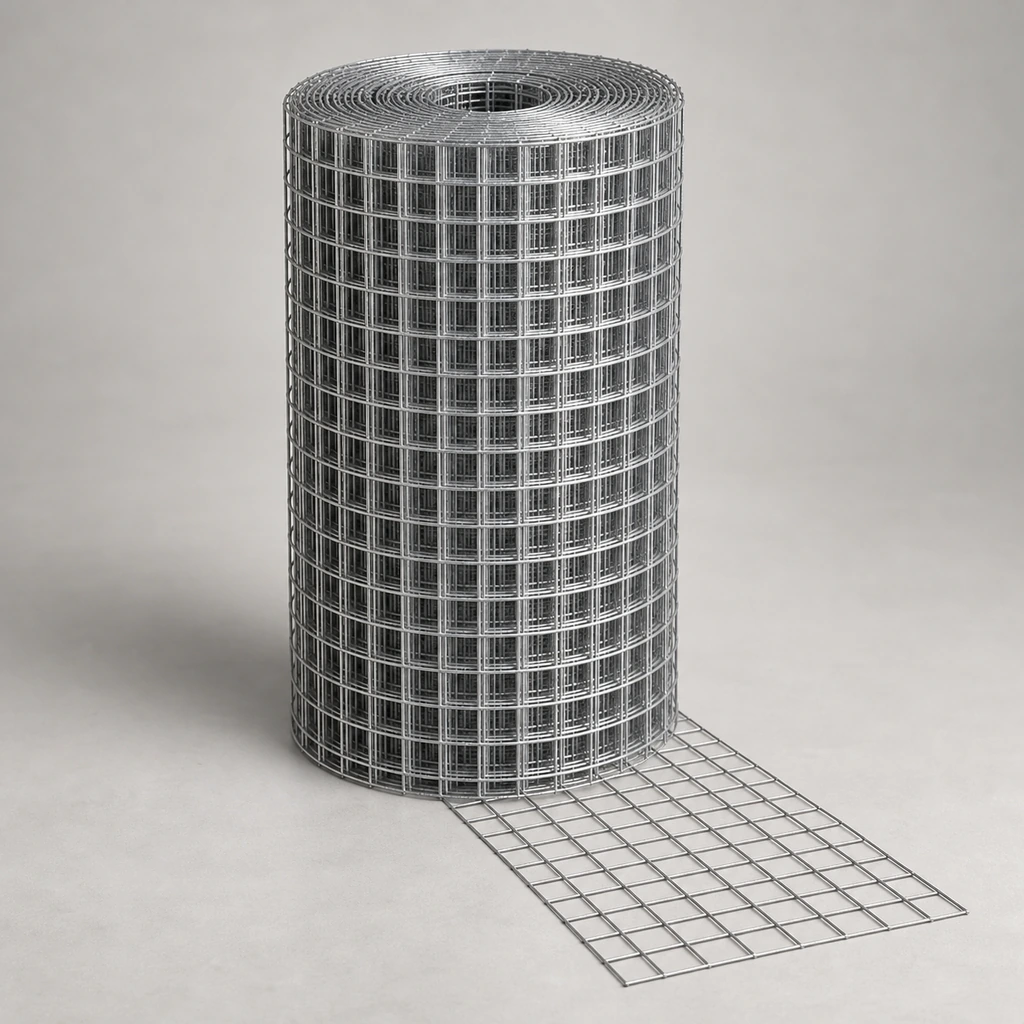

Electro Galvanized Welded Wire Mesh Roll
Electro Galvanized Steel · 2–8 mesh

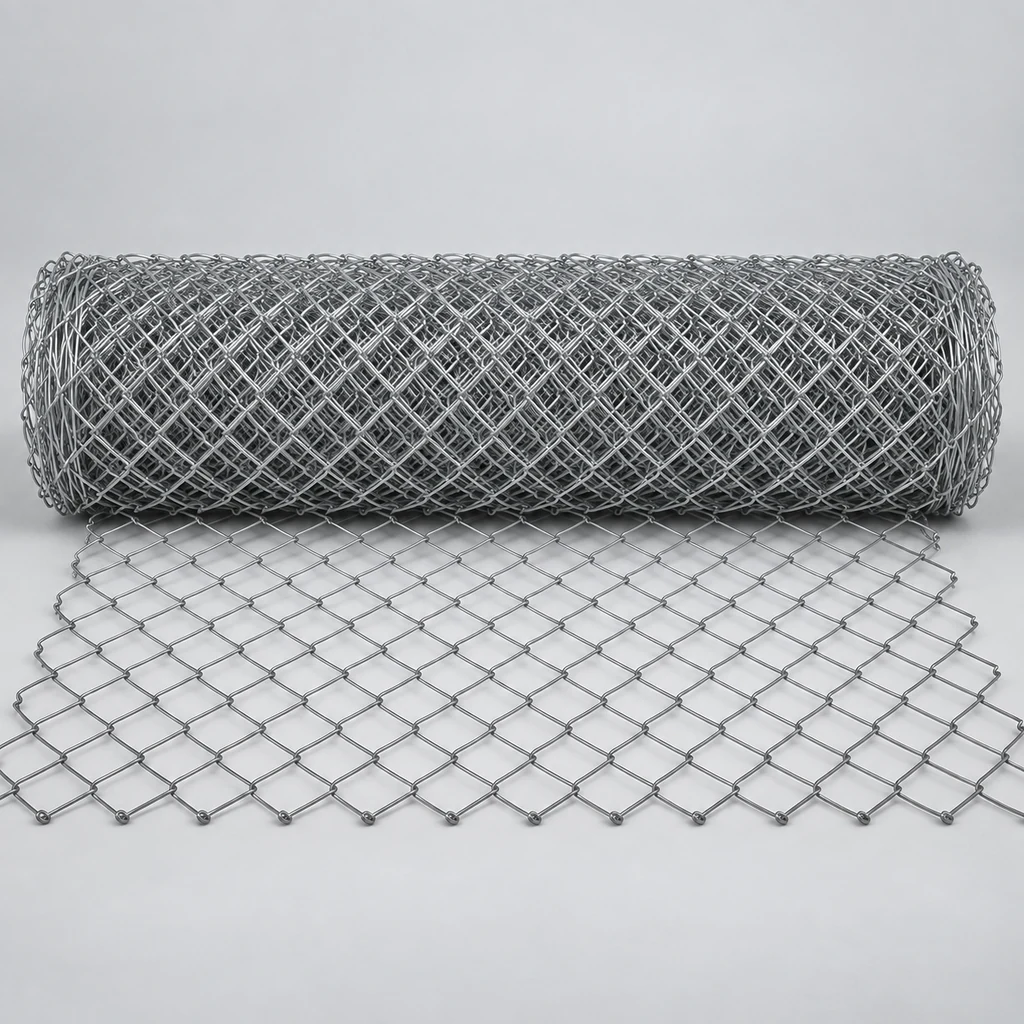

Galvanized Chain Link Fence
Hot-Dip Galvanized Steel · 2–3 mesh
Galvanized Crimped Wire Mesh
Hot-Dip Galvanized Steel · 20–80 mesh
Galvanized Expanded Metal Mesh
Galvanized Steel · 2–3 mm
Galvanized Square Hole Perforated Metal
Galvanized Steel · 1–2 mm

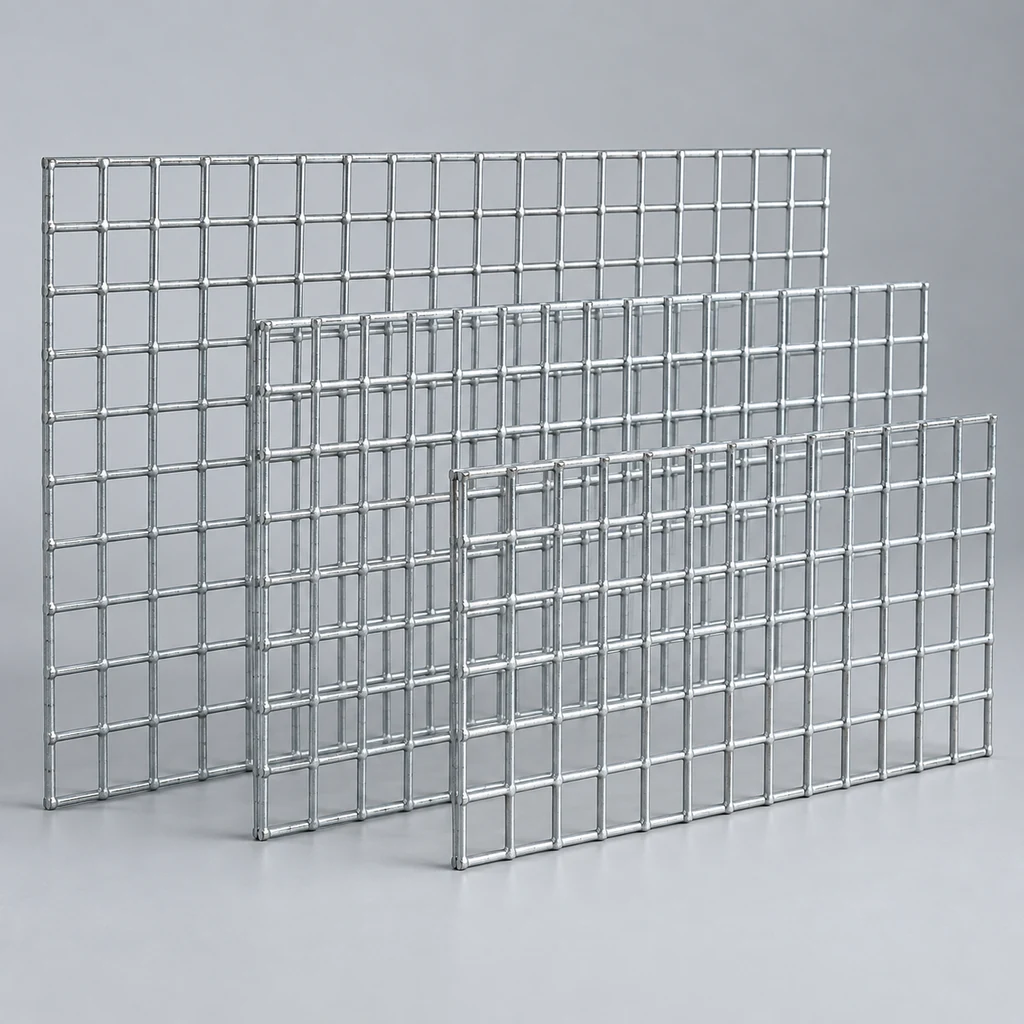

Galvanized After Welded Mesh Panel
Hot-Dip Galvanized Steel · 2–8 mesh
Galvanized Hexagonal Wire Netting
Hot-Dip Galvanized Steel · 2–8 mesh
Pig Breeding Crimped Wire Mesh
Galvanized Steel · 20–80 mesh
Where Galvanized Wire Mesh Is Used
Choose galvanized wire mesh when you need real outdoor corrosion protection at a fraction of stainless cost.
Fencing and perimeter
Hot-dip galvanized welded mesh panels and rolls for boundary fences, farm enclosures, and security perimeters that face years of weather.
Construction and stucco
Galvanized wire mesh lath reinforces plaster and stucco facades, while heavier welded fabric reinforces slabs and screeds.
Agriculture and animal enclosures
Cages, aviaries, poultry runs, and livestock panels in galvanized welded and hexagonal mesh that wash down and resist rust.
Gabions and erosion control
Heavy hot-dip galvanized wire mesh baskets hold rock for retaining walls, riverbanks, and slope protection.
Industrial guards and vents
Electro and hot-dip galvanized wire mesh for machine guards, fan covers, shelving, and ventilation screens.
Hardware cloth and DIY
Fine electro galvanized hardware cloth for pest screens, garden beds, crafts, and home projects.
How to Select the Right Galvanized Wire Mesh
Start from the environment, then fix coating, construction, opening, form, and verification. A complete RFQ avoids assumptions and re-quotes.
By service environment
Indoor and dry service suits electro galvanized wire mesh. Outdoor, humid, or coastal exposure calls for hot-dip coatings with real zinc mass.
Electro or hot-dip?
Electro gives a bright, smooth finish at the lowest cost. Hot-dip lays down five to ten times more zinc for years of outdoor life.
GBW or GAW welded mesh?
Galvanized-before-welding mesh costs less but bares the weld points. Galvanized-after-welding seals every joint and lasts far longer outdoors.
By construction
Welded galvanized wire mesh gives rigid panels. Woven cloth suits fine openings and flexible form. Hexagonal netting wraps and conforms to shapes.
By opening and wire diameter
Define what the mesh must keep in or out, then set opening and wire diameter together. State both in millimeters to avoid gauge ambiguity.
Rolls, panels, or cut pieces
Rolls suit fence runs and fabricators. Panels suit guards and cages. Cut-to-size pieces suit retrofit and repair work.
Verify the zinc, not the shine
A bright finish proves nothing. State the coating mass class in the RFQ and plan a weigh-strip-weigh check per ASTM A90 on arrival.
When to upgrade
For chloride-heavy, washdown, or decorative duty, step up to stainless steel wire mesh or PVC-coated mesh over a galvanized core.
Galvanized Wire Mesh Buying Mistakes to Avoid
Six errors that shorten service life or trigger disputes. Each one is avoidable at the RFQ stage.
Buying on shine alone
A bright electro finish can look like hot-dip. State the coating mass class in the RFQ and verify per ASTM A90 on arrival.
Using electro galvanized outdoors
Thin zinc fails outdoors within months. Outdoor service starts at real hot-dip coating mass.
Ignoring weld points on GBW mesh
Galvanized-before-welding leaves bare welds that rust first. Choose GAW for long outdoor runs.
Mixing gauge and mesh count in the RFQ
Gauge tables vary by standard. State opening and wire diameter in millimeters only.
Forgetting cut-end protection
Cut edges are bare steel and rust first. Order zinc-rich spray with the mesh and touch up on site.
Choosing galvanized for the wrong duty
Coastal washdown, food contact, or decorative duty belongs to 316 stainless steel wire mesh, not a coating.
Why Buyers Choose Galvanized Wire Mesh
Galvanized wire mesh is the default outdoor mesh for a reason: proven zinc protection, huge availability, and honest economics.
Corrosion protection at low cost
The zinc coating sacrifices itself to protect the steel core, delivering outdoor life at a fraction of stainless prices.
Two coating routes
Choose economical electro galvanizing or heavy hot-dip zinc to match service life and budget.
Huge specification range
Galvanized wire mesh runs from 1/4 inch hardware cloth to 4 mm gabion panels, in rolls, sheets, and cut pieces.
Verified coating mass
Every bundle is traceable with the coating class stated on the label, and weigh-strip-weigh verification per ASTM A90 is available before dispatch.
Ready stock, fast lead time
Standard welded rolls and panels ship from stock programs in days, keeping projects on schedule.
Low maintenance
Hot-dip galvanized wire mesh needs no painting, and damaged spots repair with zinc-rich paint in minutes.

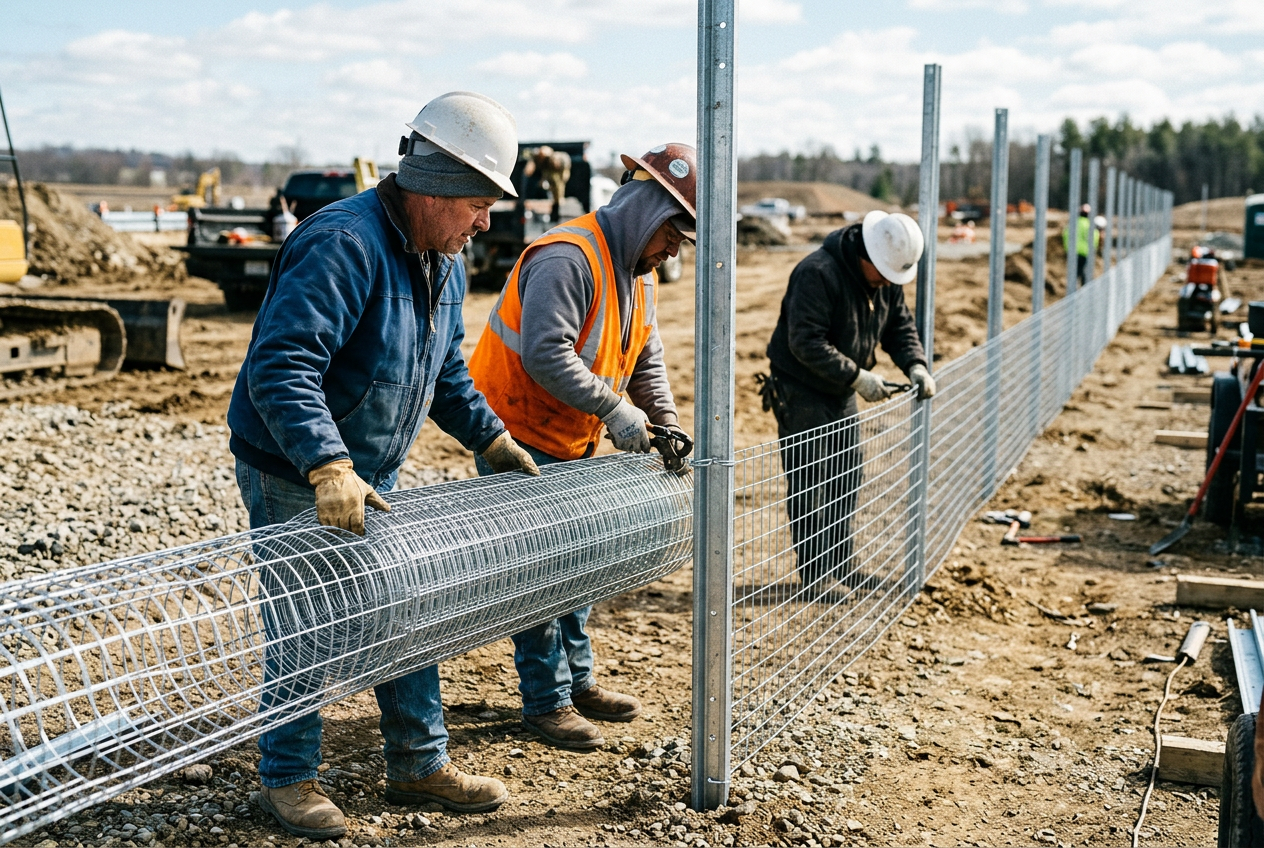

Protect the zinc coating. Cut cleanly, repair bare spots, and tension correctly for a long service life.
Working with Galvanized Wire Mesh
Cut along the weld or wire line
Cut welded mesh between the weld rows and woven cloth along a wire with shears or an angle grinder. Keep cuts straight to avoid ragged edges.
Repair cut ends and scratches
Fresh cuts expose bare steel. Brush on zinc-rich paint or cold galvanizing compound so the edges do not rust first.
Fasten and tension correctly
Use galvanized or stainless ties, clips, and staples; mixed metals stain the coating. Tension fence fabric evenly to avoid bagging.
Isolate from incompatible contact
Keep galvanized wire mesh away from copper runoff and constant wet cement; both attack zinc. Use spacers where contact is unavoidable.
Galvanized Wire Mesh Packing for Export
Packing protects zinc finishes, keeps rolls round, and preserves traceability through transit and receiving inspection.
Rolls wrapped and palletized
Rolls ship wrapped in waterproof paper and woven bags, stood on pallets with protected ends.
Flat packs for panels
Welded panels pack flat on pallets or in plywood cases with edge protection and strapping.
Label by coating and class
Each bundle carries construction, opening, wire diameter, dimensions, quantity, and the zinc coating class.
Mill and coating certificates
Coating mass certificates per the RFQ standard accompany the shipment when requested.
Share destination details
State destination port, trade term, container plan, and inspection requirements. Pre-shipment inspection by SGS, BV, or TÜV is available on request.
Galvanized Wire Mesh in Service
Use scenarios show how coating and construction change by duty; they are not customer claims.

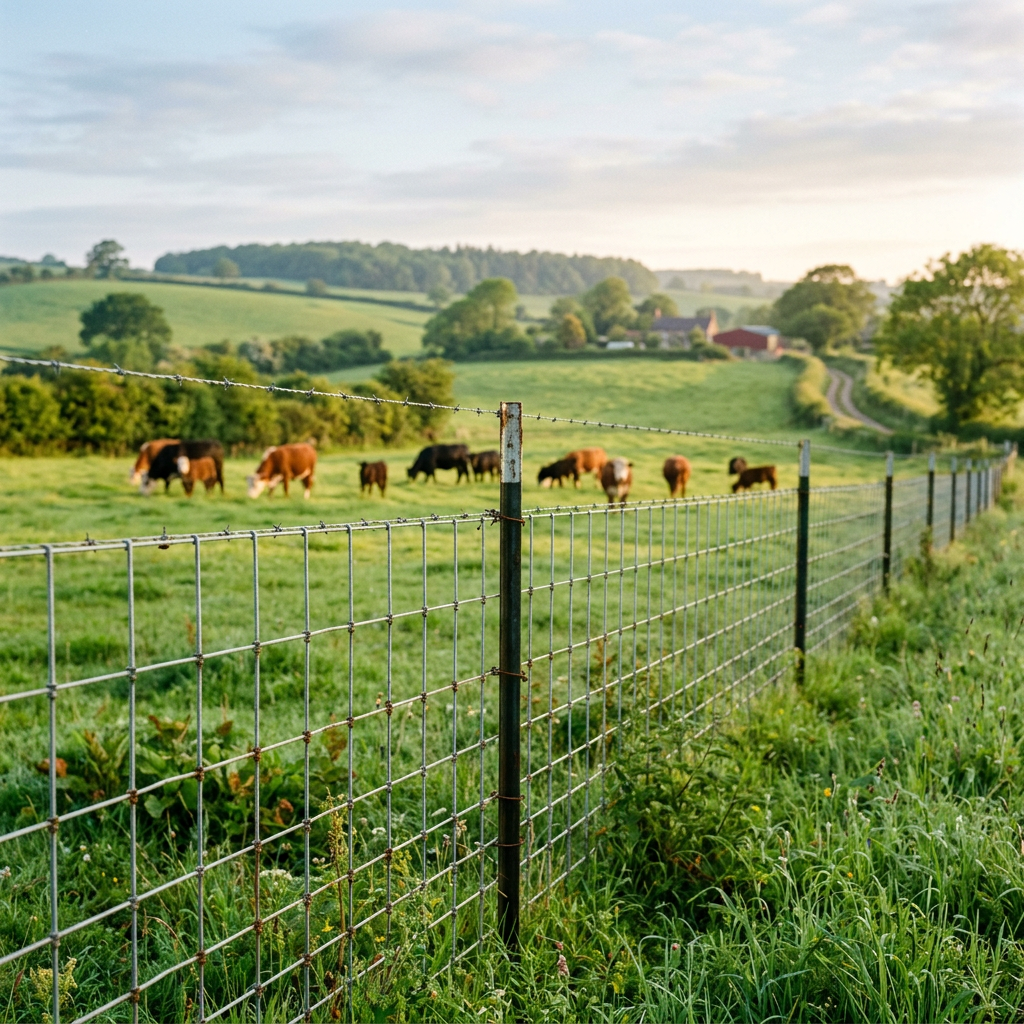

Farm perimeter fencing
Hot-dip GAW welded mesh rolls specified for a multi-year farm fence, balancing zinc mass and budget.

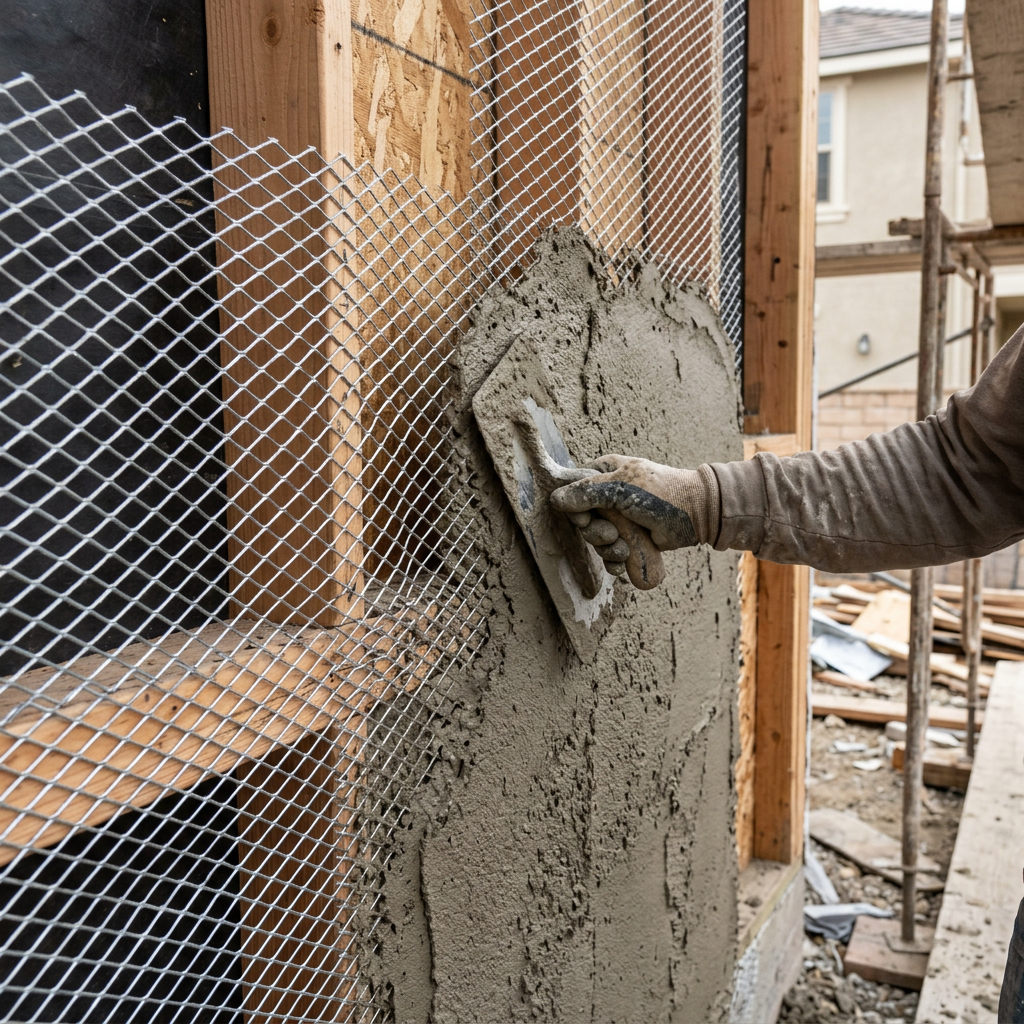

Stucco reinforcement lath
Galvanized wire mesh lath chosen for a coastal stucco facade where plain steel would bleed rust.

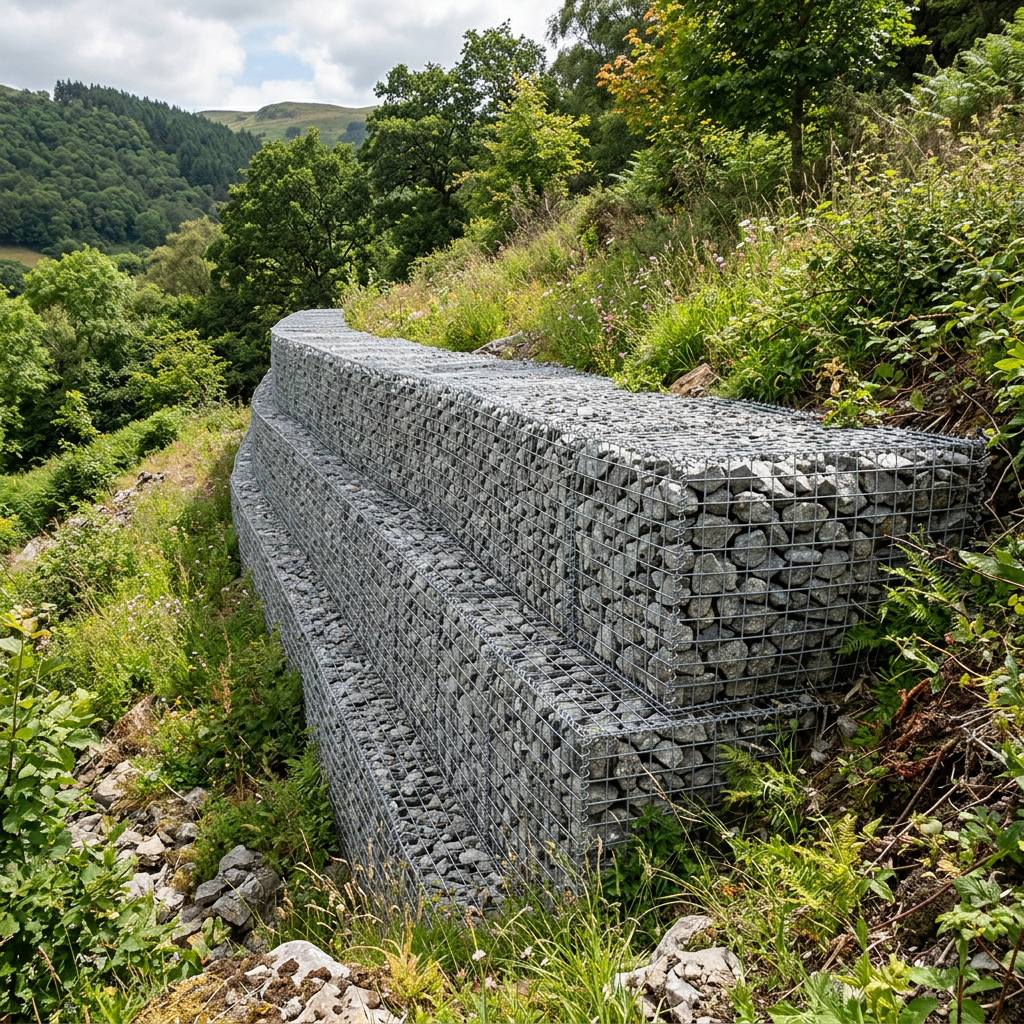

Gabion slope protection
Heavy hot-dip galvanized hexagonal netting formed into gabion baskets for a riverbank retaining wall.

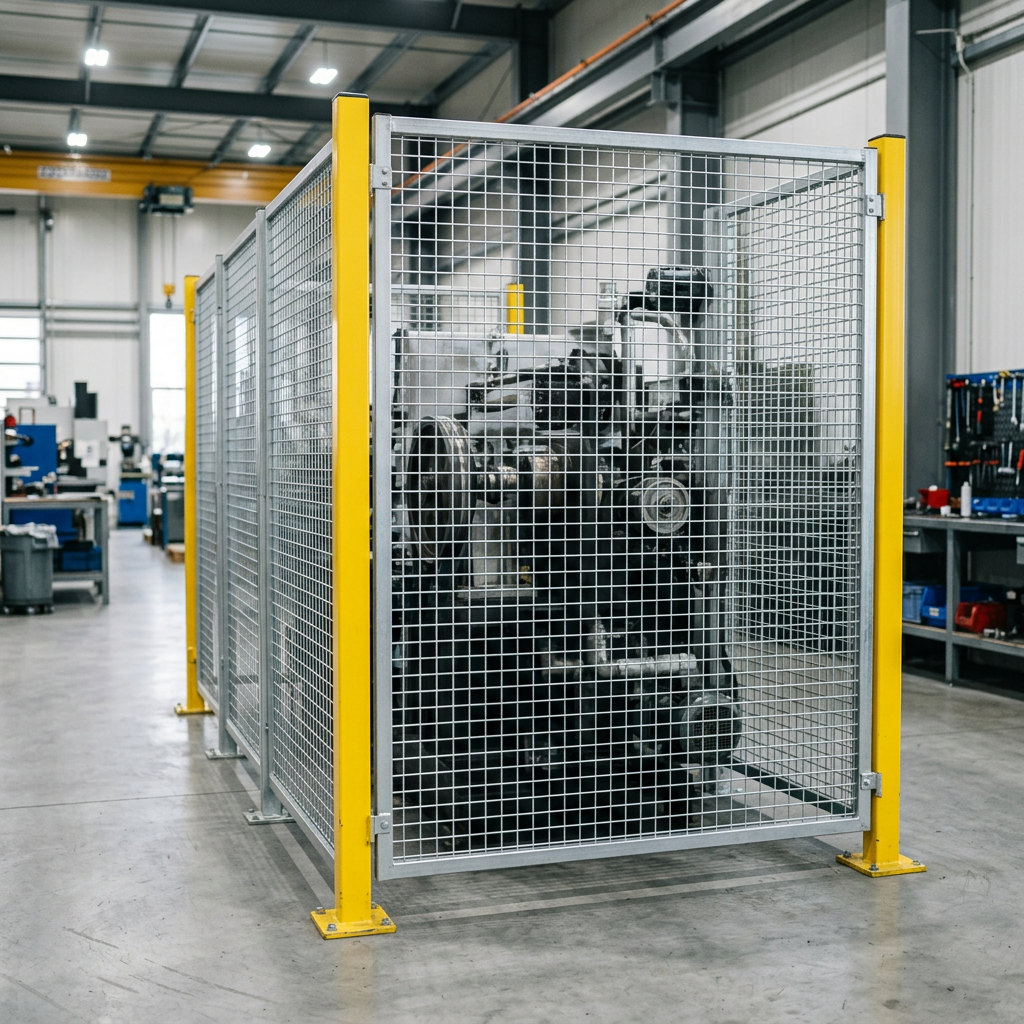

Machine safety guarding
Electro galvanized welded panels framed into machine guards for an indoor production line.
Galvanized Wire Mesh Sourcing Resources
Compare constructions and coating standards. Confirm the edition and project requirements before ordering.
Last updated: 2026-08-04
Related pages
Reference standards
Galvanized Wire Mesh FAQ
Common procurement questions about coatings, constructions, and ordering galvanized wire mesh.
Still have questions about galvanized wire mesh?
Send your construction, opening, wire diameter, coating class, and quantity. Our sourcing team replies with a specification-led review.
Request a QuoteRequest Galvanized Wire Mesh Pricing
Send construction, opening, wire diameter, coating type and class, dimensions, quantity, application, and destination for a specification-led sourcing review. Our team replies with matched galvanized wire mesh options and a factory quote.
