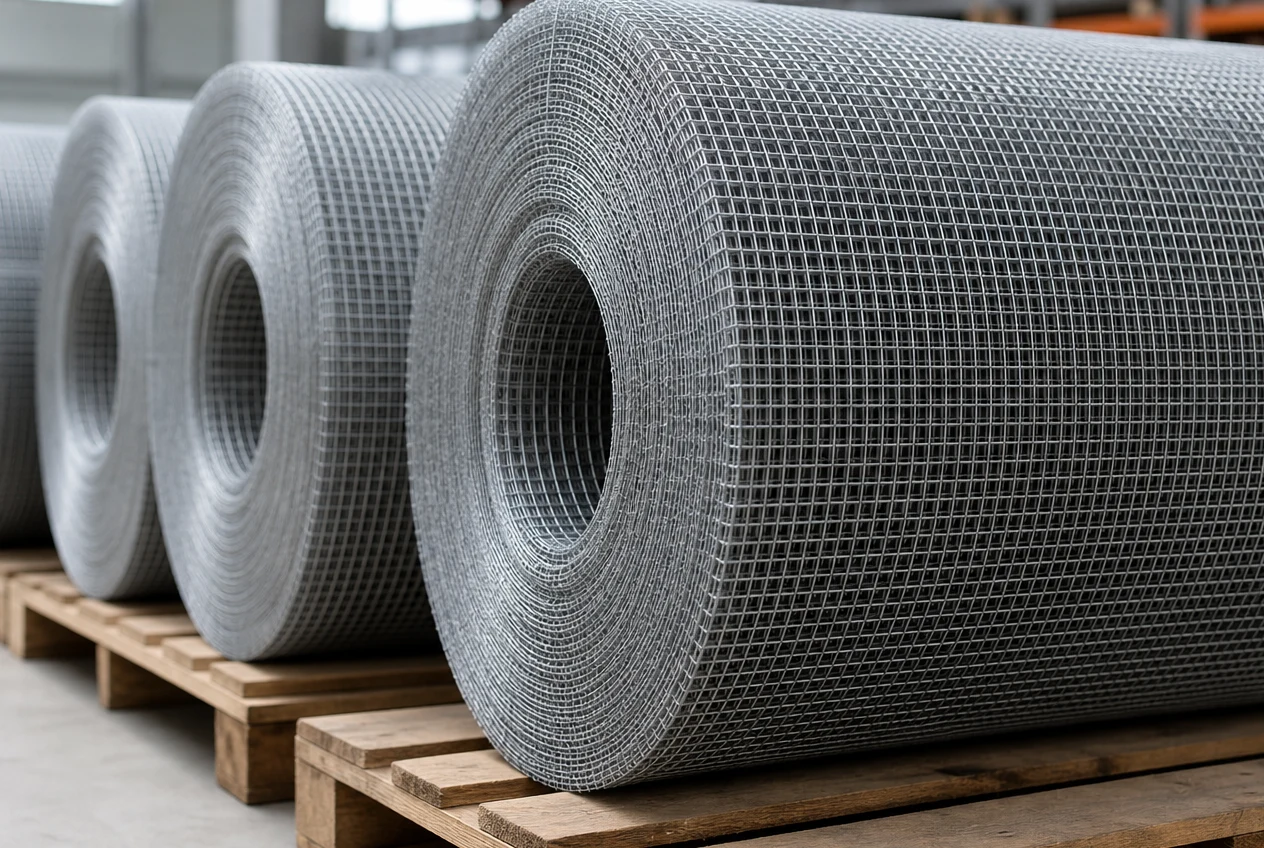

1/4 Inch Wire Mesh: Galvanized & Stainless Options
Insects getting in through vents? Small birds escaping cages? Fingers reaching moving machinery? 1/4 inch wire mesh with its 6.35 mm square opening blocks what you need stopped while keeping airflow and visibility. Specify the right wire diameter, corrosion protection, roll size, and finish — compare galvanized, PVC-coated, and stainless options before requesting a factory quote.
How to Specify 1/4 Inch Wire Mesh Correctly
A 1/4 inch wire mesh request that names only the opening size will not guarantee the mesh actually solves your problem. To stop pests, contain animals, protect workers, or last outdoors, you also need to specify wire diameter, coating route, form factor, and the environment. Do not rely on gauge alone: gauge tables vary by material and supplier, and fine wire has far less tolerance for corrosion.
1/4 in × 1/4 in square clear opening (6.35 × 6.35 mm)
Commonly 0.40–0.80 mm; confirm the finished diameter after coating
About 27–21 gauge, but purchase by millimetres rather than gauge alone
Approximately 4 wires per inch each way, measured from wire centre to wire centre
Galvanized steel, PVC-coated galvanized steel, or stainless steel 304 / 316
Rolls, panels, or cut-to-size pieces with the edge and packing specified
| RFQ item | What to state | Why it matters | Example for 1/4 inch wire mesh | |
|---|---|---|---|---|
| Clear opening | Inside-face opening in inch and mm | Prevents confusing opening size with wire centre spacing or mesh count | 1/4 in × 1/4 in (6.35 × 6.35 mm) square opening | |
| Wire diameter | Nominal finished diameter and tolerance | Controls strength, open area, weight, and price — especially important for fine mesh | 0.55 mm finished wire, measured after zinc coating | |
| Construction | Resistance-welded square mesh | Distinguishes welded mesh from woven wire cloth or fine screening mesh | Welded wire mesh, uniform square pattern | |
| Material / finish | GBW, GAW, PVC over zinc, 304, or 316 | Sets corrosion resistance and expected service life for fine wires | Hot-dip galvanized after welding for outdoor insect screens | |
| Roll or panel | Width, length, edge condition, and quantity | Determines manufacturing, freight, and handling of fine rolls | 1 m × 30 m roll, trimmed edges, 100 rolls | |
| Application | Environment, pest size, filter duty, guard, or enclosure use | Ensures the mesh is fine enough and the wire withstands real conditions | Outdoor fly and wasp exclusion for ventilation openings |
Common 1/4 Inch Wire Mesh Supply Options
These are common sourcing ranges, not a universal stock commitment. Wire diameter, coating mass, width, roll length, and finished opening tolerance must be confirmed in the quotation.
| Construction and finish | Typical finished wire diameter | Approx. gauge | Common form | Typical use | |
|---|---|---|---|---|---|
| Electro galvanized welded mesh | 0.40–0.60 mm | 27–23 ga | Narrow rolls and 1 m rolls | Hardware cloth, insect screens, crafts, dry-area vent guards | |
| Galvanized wire before welding (GBW) | 0.50–0.70 mm | 25–22 ga | Rolls | Economical cages, cabinet inserts, and general fine screening | |
| Galvanized after welding (GAW) | 0.50–0.80 mm | 25–21 ga | Rolls and cut panels | Outdoor insect barriers, garden guards, and damp service | |
| PVC-coated galvanized mesh | 0.90–1.40 mm overall | Core and jacket specified separately | Green or black rolls | Decorative guards, animal enclosures, and longer-life perimeter use | |
| 304 / 316 stainless welded mesh | 0.40–0.70 mm | 27–22 ga | Rolls, panels, and cut pieces | Washdown, food-adjacent, filtration, coastal, and corrosion-sensitive duty |
Weight Guide for 1/4 Inch Wire Mesh
Theoretical bare-steel weight is for planning freight only. It assumes equal wire diameter in both directions; zinc, PVC, aperture tolerance, and roll packing change the shipped weight. Confirm the packing-list weight before booking freight.
| Clear opening | Wire diameter | Theoretical bare-steel weight | Approx. 1 m × 30 m roll | |
|---|---|---|---|---|
| 1/4 in × 1/4 in | 0.40 mm | 0.48 kg/m² | 14 kg | |
| 1/4 in × 1/4 in | 0.55 mm | 0.90 kg/m² | 27 kg | |
| 1/4 in × 1/4 in | 0.80 mm | 1.86 kg/m² | 56 kg |
Where 1/4 Inch Wire Mesh Works Best
The compact 6.35 mm square opening makes 1/4 inch wire mesh the choice where airflow and visibility are needed while excluding insects, small birds, rodents, and fine particles. Select wire diameter and finish for the real duty rather than the opening alone.
Stop Flies, Wasps, and Insects From Getting In
Vents, windows, and exhaust openings are how flying insects get into warehouses, food plants, and buildings. 1/4 inch wire mesh covers those openings with a 6.35 mm barrier that blocks most common pests while letting air move freely — no more choosing between ventilation and a pest-free space.
Keep Small Birds and Animals Securely Contained
Small birds like finches and parakeets squeeze through 1/2 inch mesh — but not through 1/4 inch. Whether you are building breeding cages, transport boxes, or small-animal enclosures, the 6.35 mm opening holds the smallest common species while still giving them air and a view out.
Protect Expensive Filters From Premature Clogging
Bag filters, HEPA units, and fine screens cost money to replace. Install 1/4 inch welded mesh upstream and it catches leaves, packaging scraps, and coarse debris before they reach the expensive filter media. Clean the mesh in place; extend filter life across the whole system.
Guard Machinery and Vents Against Finger Access
Fans, blowers, conveyor nip points, and electrical cabinets all need guarding that lets air through but stops fingers. 1/4 inch welded wire mesh is a fast, cost-effective way to bring equipment in line with basic safety requirements without building custom sheet-metal covers.
Defend Gardens and Seedlings From Pests
Newly planted seeds and tender seedlings get destroyed by birds, slugs, and rodents before they even get started. 1/4 inch mesh formed into cages, bed covers, or row tunnels creates a physical barrier that lets rain and sun through but keeps pests out — without spraying anything.
Secure Windows and Openings Against Unauthorised Entry
Ground-floor windows, vent grilles, and utility openings are the weak point in perimeter security. A properly framed 1/4 inch wire mesh guard prevents hands from reaching latches and tools from being passed through, while still looking like a practical fixture rather than a cage.
Choose the Right 1/4 Inch Wire Mesh Finish
The same 1/4 inch opening performs differently once its coating, weld route, and wire grade change. Begin with the environment and expected life, then compare price — especially important for fine wires that corrode faster than heavier gauges.
Electro Galvanized 1/4 Inch Wire Mesh
A bright, economical zinc finish for indoor, dry, and short-term outdoor applications. It is commonly selected for light 1/4 inch wire mesh rolls and fine screening, but thin zinc on fine wire needs protection from persistent moisture.
GBW and GAW 1/4 Inch Wire Mesh
GBW uses zinc-coated wire before welding, so weld locations have less zinc protection. GAW coats the fabricated mesh after welding and is generally the stronger option for exposed outdoor service, especially for fine wire gauges.
PVC-Coated 1/4 Inch Wire Mesh
A polymer jacket over galvanized steel adds colour and a second weather barrier. For 1/4 inch mesh, the PVC coating significantly reduces the clear opening, so specify core wire diameter, finished diameter, and jacket thickness separately.
Stainless 1/4 Inch Wire Mesh
Stainless 304 fits many clean or general corrosion applications; 316 is better suited to chlorides, salt air, and more demanding chemical exposure. Fine stainless wire mesh is common in food, pharmaceutical, and filtration settings. Request the grade and material certificate when traceability matters.
How to Select 1/4 Inch Wire Mesh That Actually Solves Your Problem
Buying the wrong fine mesh is expensive — insects still get in, animals escape, or the mesh rusts through in a year. Start with the problem you are solving, not the product name, and build the specification from there.
Start with what you need to stop
Is it flies and wasps? Mice and rats? Fingers reaching machinery? Small birds escaping? The 6.35 mm opening handles all of these, but the required wire diameter and frame change. Describe the threat, not just the opening size.
Confirm 1/4 inch is the right opening — not too fine, not too coarse
1/4 inch (6.35 mm) blocks most common insects and all small animals. If you need to stop mosquitoes or fine dust, you need a much finer mesh. If you only need to keep out large animals, 1/2 inch costs less. Match the opening to the actual problem.
Pick wire diameter by load and durability, not just price
Thinner wire costs less but dents, bends, and corrodes faster. For pest screens that no one touches, 0.40–0.50 mm may work. For security guards, animal cages, or anything that takes impact, go 0.60 mm or heavier and confirm the finished diameter after coating.
Choose the finish for where it will live, not where it will ship from
Fine wire has less metal to lose to corrosion. Dry indoor use: electro-galvanized is fine. Outdoor or humid: GAW or PVC-coated. Washdown, food, or coastal: 304 or 316 stainless. A cheap finish on fine wire means early replacement.
Decide how it will be installed before you order
Rolls work for long continuous runs but need a frame or support. Pre-cut panels are flatter and easier to install in guards and cabinets. Formed or fabricated pieces save on-site labour. Tell the supplier the mounting method so edge treatment and tolerances are correct.
Ask for evidence when failure is costly
If the mesh protects workers from machinery, keeps pests out of food production, or secures a facility, request mill certificates, opening/wire measurements, weld strength data, and a pre-shipment inspection. A re-shipment delay costs more than the check.
Mistakes That Make 1/4 Inch Wire Mesh Fail at Its Job
Fine mesh fails in the field not because the opening is wrong, but because critical details were left out of the purchase order. These are the errors that lead to pests still getting in, mesh rusting early, or installations falling apart.
Buying the cheapest option and wondering why pests still get through
Thin 0.40 mm mesh dents easily under wind, handling, or animal pressure — gaps open up and your problem returns. Specify the wire diameter in millimetres and match it to what the mesh must withstand, not just the lowest quote.
Calling it galvanized and finding rust in six months
Electro-galvanized fine wire has a thin zinc layer that disappears fast outdoors. If the mesh lives outside or in damp conditions, specify GAW (galvanized after welding) or PVC-coated — not just galvanized.
Forgetting that coating shrinks the opening
On a 6.35 mm opening, a PVC jacket can take up 0.5 mm or more per wire — the clear opening shrinks noticeably. If you need a true 1/4 inch clear opening after coating, say so and allow a larger mesh pitch.
Installing it wrong and blaming the mesh
Fine 1/4 inch mesh needs more frequent support points and proper tensioning than heavier mesh. Over-stretch it and it distorts; support it too far apart and it bows. Plan the frame before you order the roll width.
Benefits of 1/4 Inch Welded Wire Mesh
1/4 inch wire mesh balances a fine opening with good airflow, visibility, and roll handling. The right material route determines whether those benefits last in the actual environment — especially important for fine wires.
Stops Insects and Small Pests — Without Blocking Airflow
The 6.35 mm opening blocks flies, wasps, and small rodents while letting air and light pass through. No more choosing between ventilation and pest control — 1/4 inch wire mesh gives you both.
Keeps Small Animals In and Predators Out
Fine square openings contain finches, parakeets, and other small birds or pets, while keeping out rats, snakes, and larger pests. Welded intersections resist prying better than woven mesh.
Finger-Safe Guarding for Machinery and Vents
1/4 inch mesh meets basic finger-guard requirements for fans, blowers, conveyors, and cabinet openings. Protect workers and satisfy safety audits without redesigning equipment enclosures.
Pre-Filter Protection That Extends Expensive Filter Life
Install 1/4 inch welded mesh upstream of bag filters, HEPA units, or fine screens to catch coarse debris before it clogs the expensive media. The mesh is easy to clean and reuse.
Corrosion Resistance Tailored to Your Environment
Fine wires corrode faster than heavy gauge. Choose zinc, PVC over zinc, 304, or 316 by moisture level and budget — so the mesh lasts, not just looks good on delivery day.
One Opening Size, Hundreds of Uses
From insect screens to bird cages to security guards to pre-filtration, 1/4 inch welded wire mesh covers more problems than any other single opening. Consolidate your mesh spec and simplify procurement.
Work to the project safety plan. Treat cut ends as sharp, protect the finish during installation, and use a frame or fasteners suitable for the load and environment. Fine wire bends more easily than heavy mesh — support accordingly.
Installing 1/4 Inch Wire Mesh
Inspect before cutting
Compare the delivered roll label, opening, wire diameter, finish, width, and quantity against the purchase order. Photograph visible transit damage before unpacking fully — fine rolls are more susceptible to denting.
Plan the support and overlap
Mark the frame, posts, or backing so the mesh is supported at closer spacing than heavier mesh would require. Overlap or bind joints where the application requires a continuous barrier with no gap larger than the opening.
Cut along wire lines and protect edges
Use appropriate cutters, gloves, and eye protection. Trim projecting wire ends or cover them with edging, a frame, or another approved finish — especially important where fine cut ends could be accessible.
Fix without damaging the finish
Use compatible clips, staples, ties, or fasteners. Avoid scraping zinc or PVC unnecessarily; repair exposed galvanized areas only where the project specification permits. Do not over-tension fine wire mesh or it will distort.
Export Packing for 1/4 Inch Wire Mesh
Packing should protect the roll shape, fine wires, coating, labels, and inspection access from the factory through receiving. Give destination and handling details in the RFQ — fine mesh is more vulnerable to transit damage than heavy gauge rolls.
Supported roll cores
Fine rolls can ship on suitable cores with tied ends to reduce crushing and telescoping during handling. A stiffer core may be specified for very fine wire gauges.
Moisture protection
Waterproof paper, plastic film, woven bags, or pallet wrapping can be selected for route and container conditions to protect fine zinc wires from staining in transit.
Clear bundle labels
Mark each roll or pallet with the opening, wire diameter, finish, dimensions, quantity, gross weight, and purchase-order reference for easy receiving and stock identification.
Flat-pack cut panels
Protect stacked panels with separators, edge guards, and pallet or case packing where flatness and finish are important. Thin panels can bend if stacked incorrectly.
Confirm shipping instructions
State destination port, trade term, container plan, required documents, inspection needs, and any customer shipping marks before production is packed.
1/4 Inch Wire Mesh in Practical Use
These examples show how the same fine opening needs a different finish, wire size, and support arrangement by environment. They are specification examples, not customer claims.

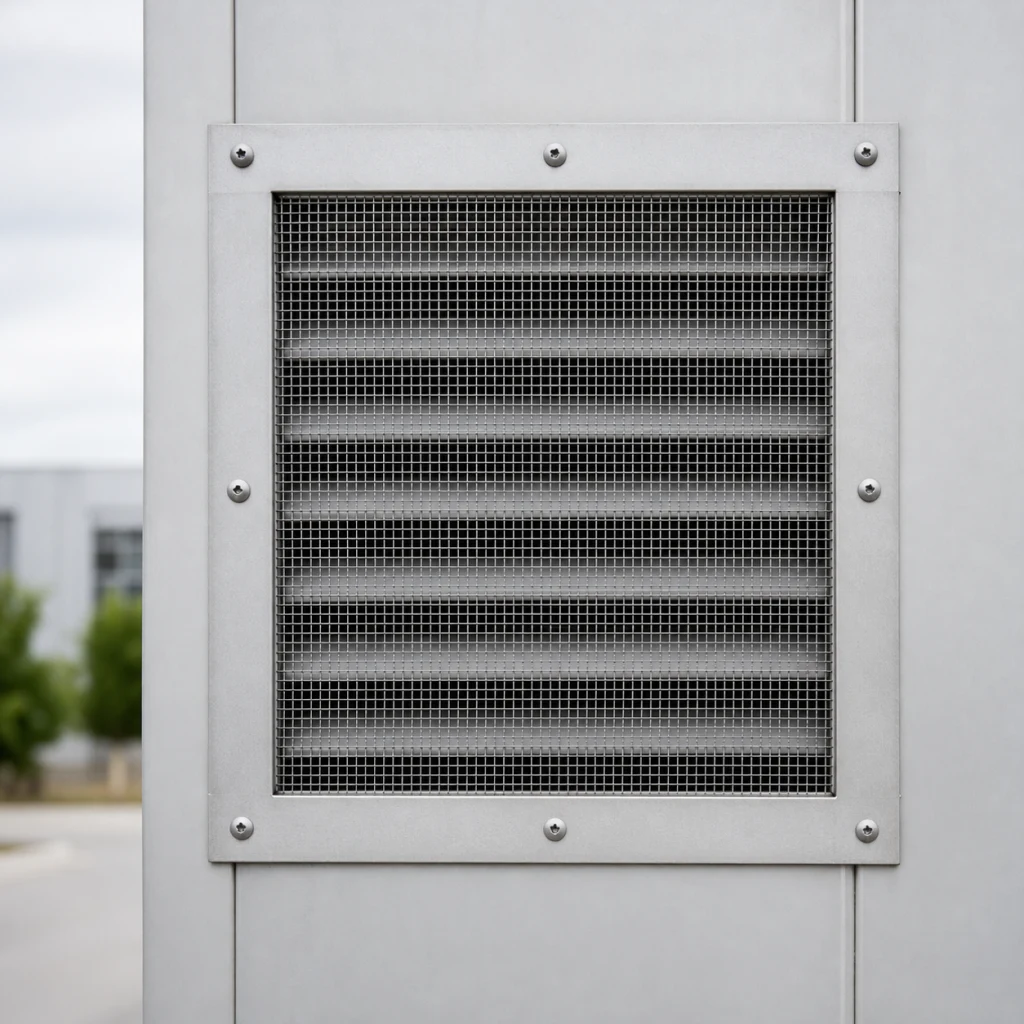

1/4 Inch Wire Mesh Outdoor Insect Screen
GAW 1/4 inch wire mesh is framed into a ventilation screen for a building facade, with the finish selected for prolonged outdoor exposure and the fine opening sized to exclude common flying insects.

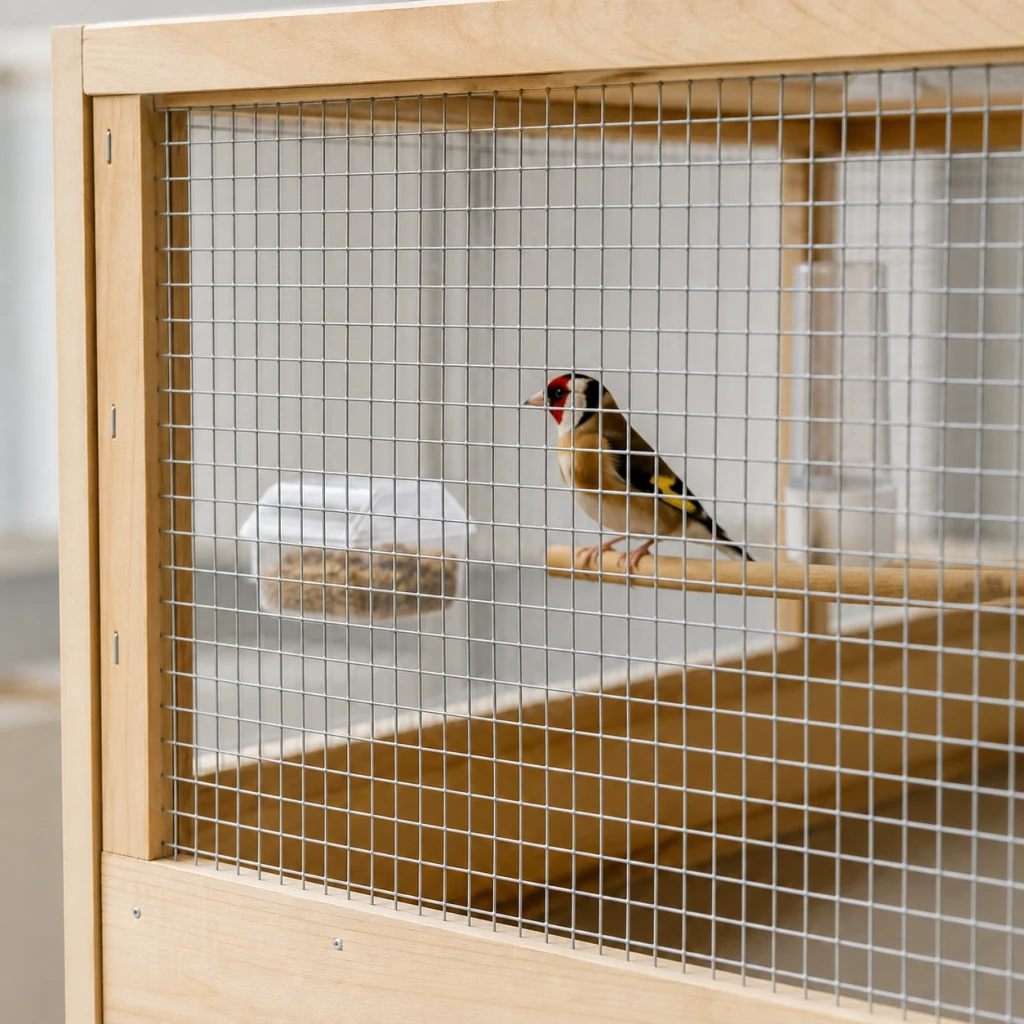

1/4 Inch Wire Mesh Bird Breeding Cage
A light galvanized quarter inch wire mesh panel forms the sides of a small-bird breeding cage, while the buyer confirms species-specific bar spacing requirements and specifies a stronger perimeter system where needed.

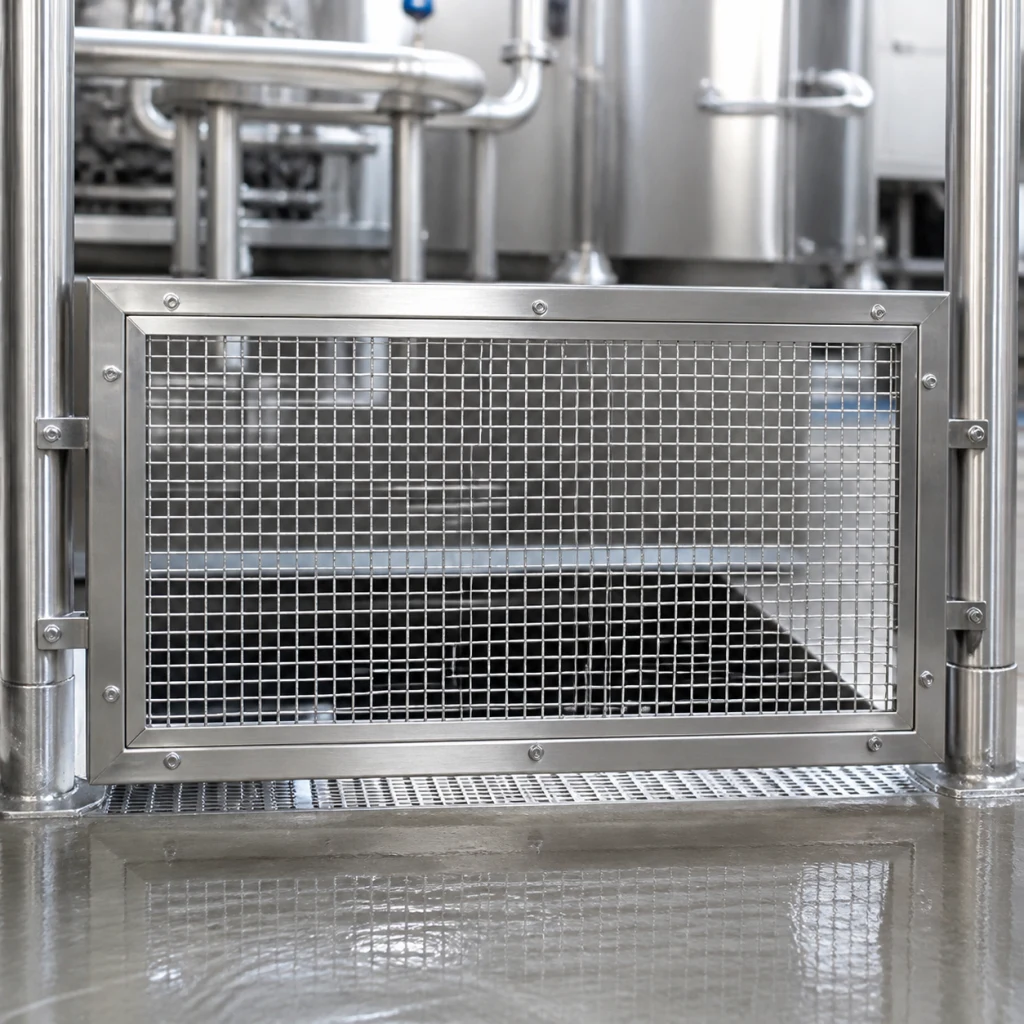

1/4 Inch Wire Mesh Pre-Filter Screen
A framed stainless steel 1/4 inch welded wire mesh acts as a coarse pre-filter in a washdown area, protecting finer downstream filter media from large debris and simplifying cleaning.

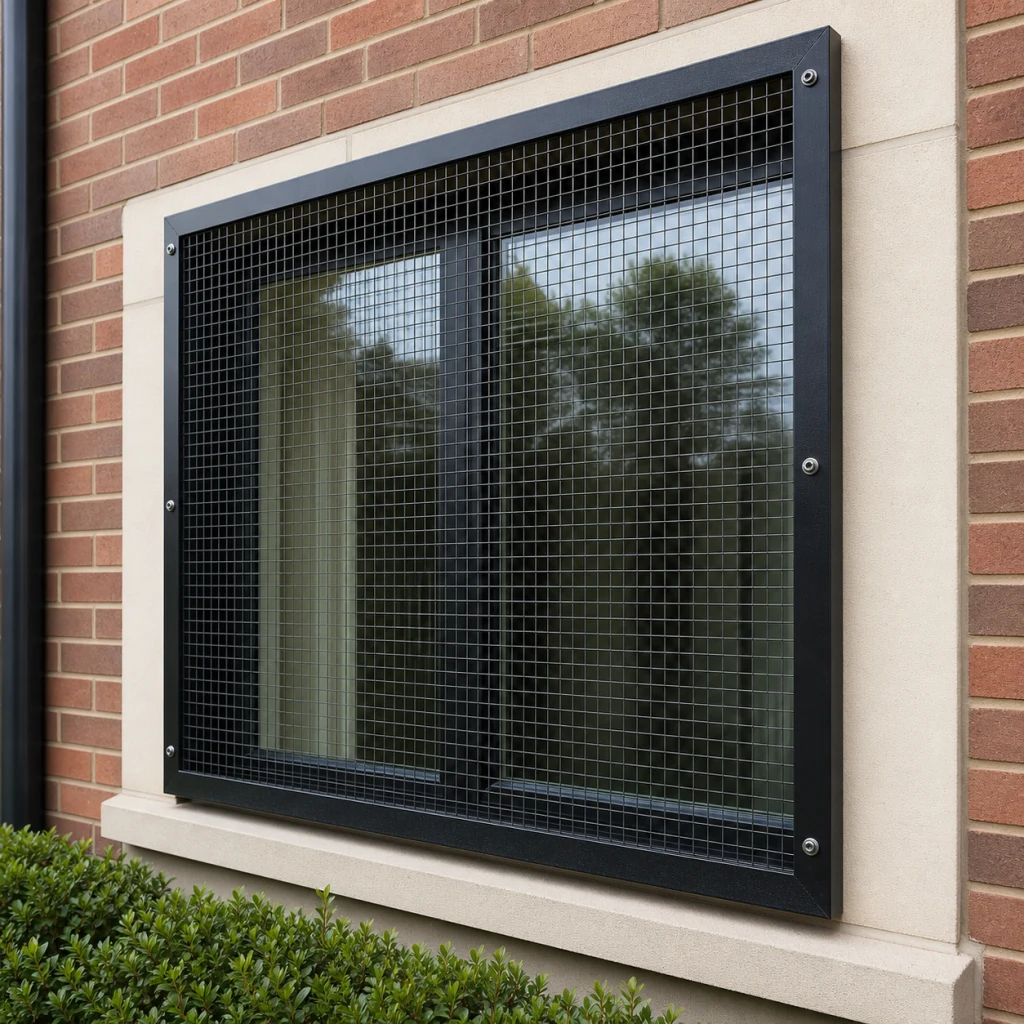

1/4 Inch Wire Mesh Security Window Guard
A framed 1/4 inch welded wire mesh guard provides finger exclusion for a ground-floor window while maintaining visibility and airflow. The final design follows the applicable security and building code assessment.
1/4 Inch Wire Mesh References
Use these related pages and standards to refine the specification. Confirm the applicable edition and project requirements before placing an order.
