10 Gauge Wire Mesh: Welded Options for Every Duty
Dog run pushed out of shape? Kennel wire chewed through? A fence panel that bends at the first impact? Fine hardware cloth fails exactly where 10 gauge wire mesh does not — this heavy welded mesh resists pushing, climbing, and chewing, so one installation outlasts repeated replacement of lighter rolls. Compare galvanized, PVC-coated, and stainless routes, confirm the exact wire diameter in millimetres, and send your specification for a factory-led quotation.
How to Specify 10 Gauge Wire Mesh Correctly
A 10 gauge wire mesh request that names only the gauge will not produce a comparable quotation, because gauge tables differ by material, standard, and supplier. To buy 10 gauge wire mesh reliably, state the nominal wire diameter in millimetres, the clear square opening, the material or coating route, the roll or panel size, and the application environment.
10 gauge commonly means ≈ 3.4–3.5 mm; confirm the finished diameter in millimetres after coating
Common square openings 1–6 in (25–150 mm), e.g. 2 × 2 in (50 × 50 mm)
Resistance-welded intersections, square pattern, heavier than hardware cloth
Galvanized steel, PVC-coated galvanized steel, or stainless steel 304 / 316
Rolls, welded panels, or cut-to-size sheets with the edge and packing specified
| RFQ item | What to state | Why it matters | Example for 10 gauge wire mesh | |
|---|---|---|---|---|
| Wire diameter | Nominal finished diameter in mm and the gauge table used | Gauge values differ by standard; mm controls strength, weight, and price | 3.5 mm finished wire, referenced as 10 gauge steel wire | |
| Clear opening | Inside-face opening in inch and mm | Prevents confusing wire spacing with the open space | 2 × 2 in (50 × 50 mm) square opening | |
| Construction | Resistance-welded square mesh | Distinguishes welded mesh from woven cloth or hexagonal netting | Welded wire mesh, uniform square pattern, heavier wire | |
| Material / finish | GBW, GAW, PVC over zinc, 304, or 316 | Sets corrosion resistance and expected service life | Hot-dip galvanized after welding for an outdoor kennel run | |
| Roll or panel | Width, length, edge condition, and quantity | Determines manufacturing, freight, and handling | 1 m × 30 m roll, trimmed edges, 20 rolls | |
| Application | Environment, animal, guard, or concrete duty | Ensures the mesh is strong enough and the finish suits the site | 6 × 6 in (150 × 150 mm) 10/10 welded wire for a concrete slab |
Common 10 Gauge Wire Mesh Supply Options
These are common sourcing ranges, not a universal stock commitment. Wire diameter, coating mass, opening tolerance, width, roll length, and finish must be confirmed in the quotation.
| Construction and finish | Typical wire diameter | Gauge reference | Common opening | Typical use | |
|---|---|---|---|---|---|
| Galvanized before welding (GBW) | 3.4–3.5 mm | 10 ga | 2 × 2 in (50 × 50 mm) | Economical cages, fences, and general barriers | |
| Galvanized after welding (GAW) | 3.4–3.5 mm | 10 ga | 2 × 4 in (50 × 100 mm) | Outdoor enclosures, kennels, and damp service | |
| PVC-coated galvanized mesh | 3.4–3.6 mm core + jacket | Core and jacket specified separately | 2 × 2 in (50 × 50 mm) | Longer-life perimeter fences and decorative guards | |
| 304 / 316 stainless welded mesh | 3.0–3.5 mm | ≈ 10–9 ga | 1 × 2 in (25 × 50 mm) | Washdown, food-adjacent, and coastal duty | |
| Plain steel welded mesh | 3.4–3.5 mm | 10 ga | 6 × 6 in (150 × 150 mm) | Concrete reinforcement and temporary formwork |
Weight Guide for 10 Gauge Wire Mesh
Theoretical bare-steel weight is for planning freight only. It assumes equal wire diameter in both directions; zinc, PVC, opening tolerance, and roll packing change the shipped weight. Confirm the packing-list weight before booking freight.
| Clear opening | Wire diameter | Theoretical bare-steel weight | Approx. 1 m × 30 m roll | |
|---|---|---|---|---|
| 2 × 2 in (50 × 50 mm) | 3.5 mm | ≈ 2.8 kg/m² | ≈ 85 kg | |
| 4 × 4 in (100 × 100 mm) | 3.5 mm | ≈ 1.5 kg/m² | ≈ 44 kg | |
| 6 × 6 in (150 × 150 mm) | 3.5 mm | ≈ 1.0 kg/m² | ≈ 29 kg |
Where 10 Gauge Wire Mesh Works Best
The heavier 10 gauge wire mesh wire resists pushing, impact, and corrosion far longer than light hardware cloth, which makes it a first choice for animals, security, and construction. Choose the opening, wire diameter, and finish for the real duty rather than relying on the gauge number alone.
10 Gauge Wire Mesh for Kennels and Animal Enclosures
Dogs, livestock, and poultry need a wire they cannot bend, chew, or push out. 10 gauge wire mesh provides the stiffness, so the enclosure holds its shape and avoids repeated repair and replacement. A 2 × 2 in or 2 × 4 in opening suits most animal sizes. Confirm the animal, local threat, and frame spacing before selecting.
10 Gauge Wire Mesh for Fencing and Security
Heavy welded panels create robust perimeter fences, gates, and partitions that resist climbing and cutting far better than fine mesh, so one heavy installation outlasts several cheaper light-mesh repairs. State the height, post spacing, tension, and local security requirements so the panel gauge and opening match the risk.
10 Gauge Wire Mesh for Machine Guards
The rigid grid protects operators and equipment while keeping visibility and airflow. Evaluate impact, pinch-point, and regulatory safety requirements separately from the mesh strength.

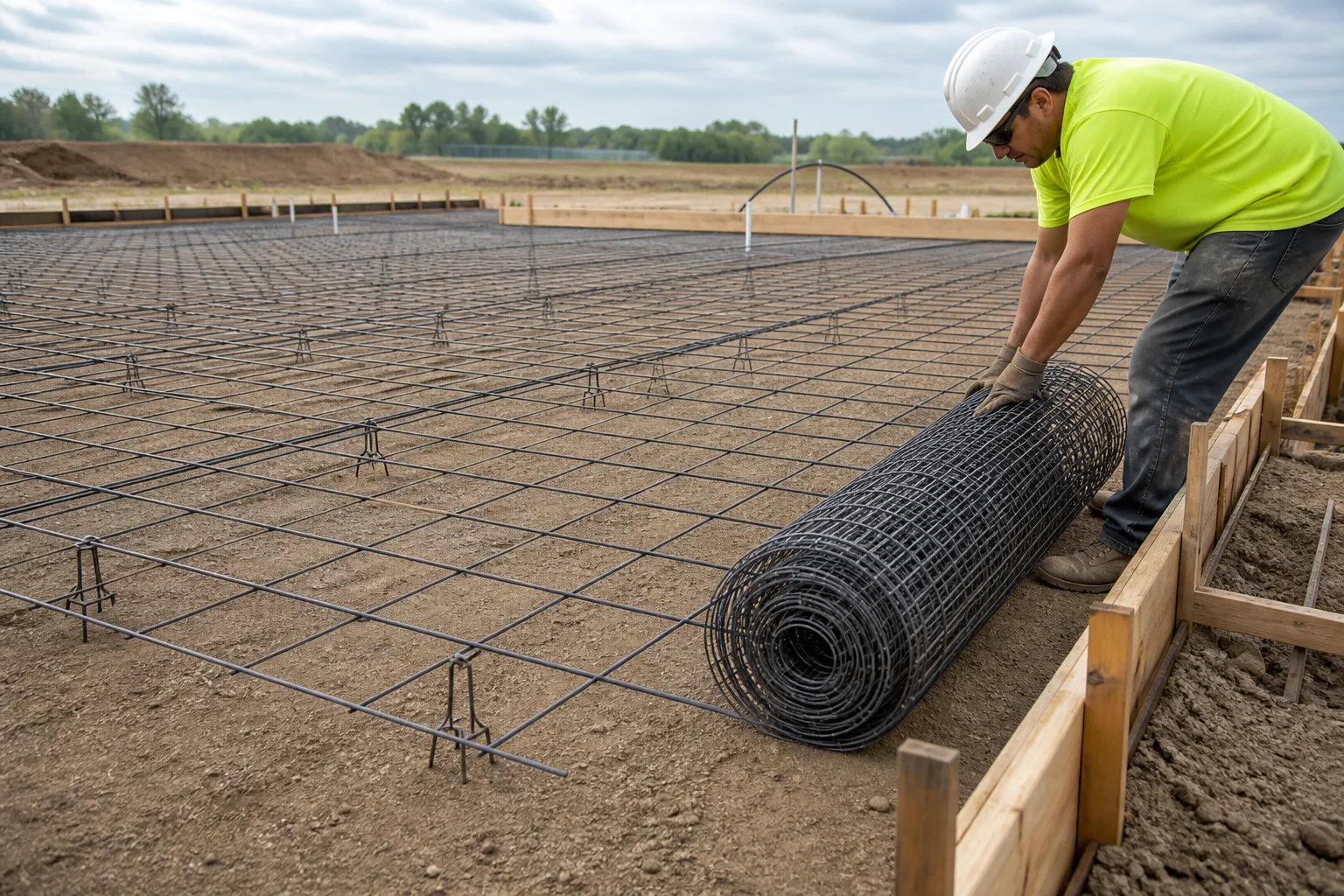

10 Gauge Wire Mesh for Concrete Reinforcement
6 × 6 in welded wire with 10/10 gauge wires (6x6-10/10 WWF) is a common reinforcement for slabs, driveways, and footings. Always follow the structural drawing and applicable standard rather than substituting by gauge alone.
10 Gauge Wire Mesh for Partitions and Storage
Welded 10 gauge wire mesh panels divide warehouses, secure stock, and form cage storage with good visibility. Heavier wire or a framed panel is needed where the mesh carries load.
10 Gauge Wire Mesh for Garden and Agriculture
For larger animals, perimeter barriers, and orchard or vineyard protection, 10 gauge wire mesh provides the strength fine hardware cloth cannot. Choose hot-dip galvanized or stainless where the mesh stays outdoors in wet conditions.
Choose the Right 10 Gauge Wire Mesh Finish
The same 10 gauge wire diameter performs differently once its coating, weld route, and steel grade change. Begin with the environment and expected life, then compare price.
Galvanized 10 Gauge Wire Mesh
GBW uses zinc-coated wire before welding, so weld locations have less zinc protection. GAW coats the fabricated mesh after welding and is generally the stronger choice for exposed outdoor service. Confirm the route rather than simply ordering galvanized.
PVC-Coated 10 Gauge Wire Mesh
A polymer jacket over galvanized steel adds colour and a second weather barrier. Specify core wire diameter, finished diameter, jacket thickness, colour, and UV expectation rather than ordering green mesh by gauge alone.
Stainless 10 Gauge Wire Mesh
Stainless 304 fits many clean or general-corrosion applications; 316 is better suited to chlorides, salt air, and demanding chemical exposure. Ask for the grade and material certificate when traceability matters.
Plain Steel 10 Gauge Wire Mesh
Uncoated plain steel is an economical choice where the mesh will be embedded in concrete, painted, or kept dry. It is not suitable for long-term outdoor exposure without an additional protective finish.
How to Select 10 Gauge Wire Mesh for Your Project
A complete 10 gauge wire mesh specification converts quickly into a comparable quote and avoids an unsuitable low-cost substitute. Start with what the mesh must contain, support, or resist.
Confirm what 10 gauge means for your supplier
Gauge tables differ by material, standard, and market. Ask for the nominal wire diameter in millimetres (commonly ≈ 3.4–3.5 mm) and confirm whether it is core wire or finished coated wire.
Choose the opening before the gauge
For 10 gauge welded wire mesh, common openings range from 1 × 1 in to 6 × 6 in. The opening controls what passes through and the wire spacing; the gauge controls strength. Specify both.
Match corrosion protection to the environment
Use plain steel for embedded concrete or dry duty, electro or GAW zinc for weather, PVC over zinc for longer life outdoors, 304 for many hygienic duties, and 316 for chlorides.
Choose a roll, panel, or sheet
Rolls are efficient for continuous runs; welded panels stay flat for fences, guards, and cages; sheets suit concrete and fabrication. Share width, length, edge style, and quantity so packing and freight are realistic.
Check the application-specific risk
Animal, security, impact, and structural requirements vary. Describe the animal, pressure, mounting method, and local regulations so the supplier can recommend a practical wire size and finish.
Request proof for critical orders
For concrete reinforcement, safety, or corrosion-sensitive projects, request samples, measured opening and wire records, coating or grade evidence, weld photos, and an agreed inspection point before final dispatch.
Avoid These 10 Gauge Wire Mesh Purchasing Errors
Most re-quotes come from missing details rather than from the gauge itself. These checks make the order clearer for both buyer and supplier.
Ordering by gauge alone
A stated 10 gauge can be interpreted differently across standards. Put the nominal wire diameter in millimetres and say whether it is core wire or finished coated wire.
Confusing gauge with opening
10 gauge is a wire size, not an opening size. A 10 gauge wire mesh can have a 1 × 1 in or a 6 × 6 in opening; state both wire diameter and clear opening.
Treating GBW and GAW as identical
Both may be called galvanized, yet their weld protection differs. State galvanized before welding or galvanized after welding when outdoor durability is important.
Skipping packaging and edge details
Heavy rolls are hard to handle and cut panels can have sharp edges. Confirm core support, waterproof wrapping, roll labels, panel protection, and whether edges need trimming or framing.
Benefits of 10 Gauge Welded Wire Mesh
10 gauge wire mesh combines heavy-wire strength with a simple square grid, giving long life and predictable performance. The right material route determines whether those benefits last in the actual environment.
Strong 10 Gauge Wire Mesh
Resistance-welded intersections with heavier wire hold shape under pushing, climbing, and impact far better than light hardware cloth.
10 Gauge Wire Mesh Corrosion Routes
Specify plain, zinc, PVC over zinc, 304, or 316 according to cost, moisture, washdown, chloride exposure, and target service life.
Versatile 10 Gauge Wire Mesh Openings
Square openings from 25 to 150 mm let the same wire gauge serve kennels, fences, guards, storage, and concrete reinforcement.
Efficient 10 Gauge Wire Mesh Roll and Panel Supply
Standard-width rolls reduce waste for continuous runs, while welded panels simplify fabrication where repeat panels are needed.
Predictable 10 Gauge Wire Mesh Freight
Opening, wire diameter, panel size, and theoretical weight give a practical starting point for container planning and receiving checks.
10 Gauge Wire Mesh Cost Matched to Duty
A plain or electro-galvanized product can serve an economical dry task, while GAW or stainless avoids premature replacement outdoors or in corrosive locations. One 10 gauge wire mesh installation often outlasts several cheaper light-mesh repairs, cutting long-term cost.
Work to the project safety plan. Treat cut ends as sharp, protect the finish during installation, and use a frame or fasteners suitable for the load and environment.
Installing 10 Gauge Wire Mesh
Inspect before cutting
Compare the delivered roll or panel label, opening, wire diameter, finish, dimensions, and quantity against the purchase order. Photograph visible transit damage before unpacking fully.
Plan the support and overlap
Mark the frame, posts, or concrete cover so the mesh is supported at the required spacing. Overlap or bind joints where the application requires a continuous barrier.
Cut along wire lines and protect edges
Use appropriate cutters, gloves, and eye protection. Trim projecting wire ends or cover them with edging, a frame, or another approved finish for the application.
Fix without damaging the finish
Use compatible clips, staples, ties, or fasteners. Avoid scraping zinc or PVC unnecessarily; repair exposed galvanized areas only where the project specification permits.
Export Packing for 10 Gauge Wire Mesh
Packing should protect the roll shape, coating, labels, and inspection access from the factory through receiving. Give destination and handling details in the RFQ.
Supported roll cores
Heavy rolls can ship on suitable cores with tied ends to reduce crushing and telescoping during handling.
Moisture protection
Waterproof paper, plastic film, woven bags, or pallet wrapping can be selected for route and container conditions.
Clear bundle labels
Mark each roll or pallet with the wire diameter, opening, finish, dimensions, quantity, gross weight, and purchase-order reference.
Flat-pack cut panels
Protect stacked panels with separators, edge guards, and pallet or case packing where flatness and finish are important.
Confirm shipping instructions
State destination port, trade term, container plan, required documents, inspection needs, and any customer shipping marks before production is packed.
10 Gauge Wire Mesh in Practical Use
These examples show how the same wire gauge needs a different opening, finish, and support arrangement by environment. They are specification examples, not customer claims.
10 Gauge Wire Mesh Kennel Run
GAW 10 gauge wire mesh is welded into 2 × 4 in panels for a dog kennel run, with the finish chosen for outdoor weather and the frame spacing set so the mesh cannot be pushed out.
10 Gauge Wire Mesh Machine Guard
A framed 10 gauge wire mesh panel protects an operator from moving parts while preserving visibility and airflow. The final design follows the machine safety assessment.

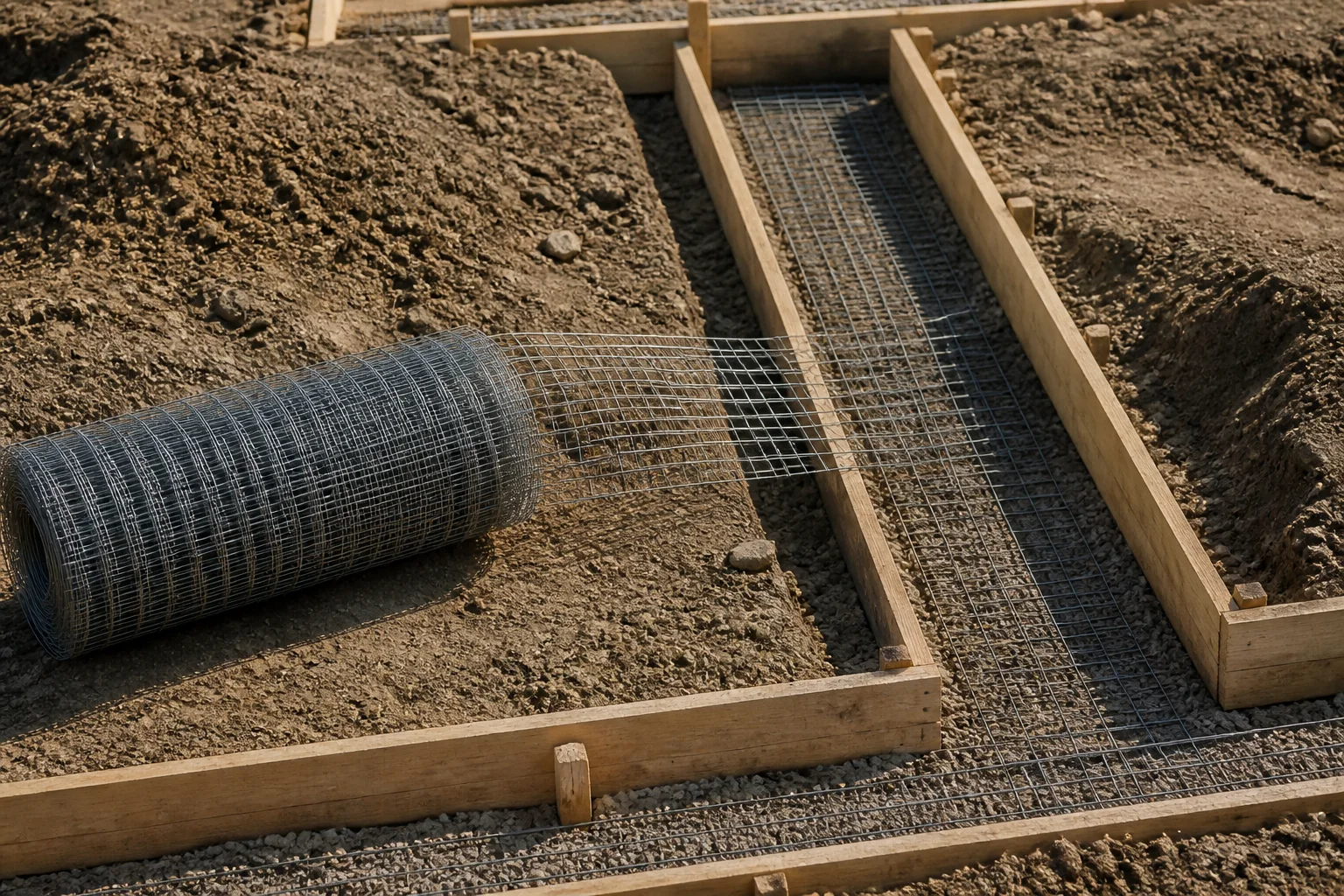

10 Gauge Wire Mesh Concrete Slab
6 × 6 in welded wire reinforcement with 10/10 gauge wires is supplied to a concrete slab, laid to the drawing's cover, splice, and lap requirements rather than by gauge guesswork.
10 Gauge Galvanized Wire Mesh Fence
10 gauge welded wire mesh rolls form a livestock or property fence on posts with tension wire, with the opening and height selected for the animals and local pressure.
10 Gauge Wire Mesh References
Use these related pages and standards to refine the specification. Confirm the applicable edition and project requirements before placing an order.
