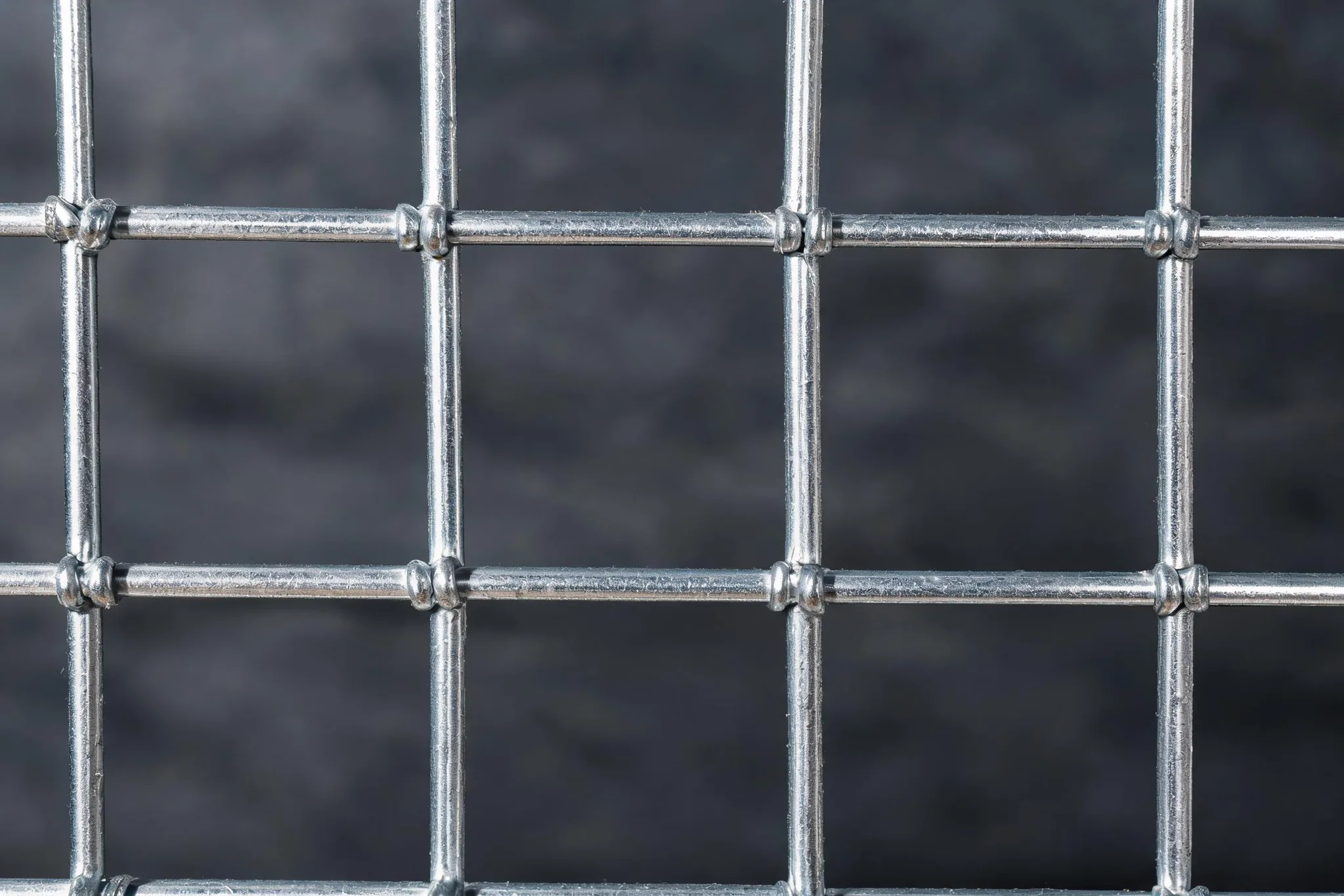

2x2 Wire Mesh: Heavy Welded Panels and Rolls for Fencing, Concrete and Security
A fence that sags under the weight of climbing vines or heavy snow? A chicken run that a determined raccoon pushes through in minutes? A concrete pad that cracks because the reinforcement wire spacing is too wide? Light mesh fails exactly where 2x2 wire mesh does not — this welded square grid with a 2 in × 2 in (50 × 50 mm) clear opening combines strength, airflow, and visible-through transparency, so one installation outlasts repeated replacement of lighter material. Compare galvanized, PVC-coated, and stainless 2x2 wire mesh options, confirm the wire gauge in millimetres, and send your specification for a factory-led quotation.
How to Specify 2x2 Wire Mesh Correctly
A 2x2 wire mesh request that names only the opening will not produce a comparable quotation, because wire diameter, coating, and supply form all change strength, weight, and price. To buy 2x2 wire mesh reliably, state the clear opening in inch and millimetres, the wire diameter in millimetres rather than gauge alone, the material or coating route, the roll or panel size, and the application environment.
2 in × 2 in square clear opening (50 × 50 mm), commonly written as 50 × 50 mm
Commonly 1.2–4.9 mm for 2x2 welded wire mesh; confirm the finished diameter after coating
About 18–6 gauge, but purchase by millimetres rather than gauge alone
Galvanized steel, PVC-coated galvanized steel, or stainless steel 304 / 316
Rolls, welded panels, or cut-to-size sheets with the edge and packing specified
| RFQ item | What to state | Why it matters | Example for 2x2 wire mesh | |
|---|---|---|---|---|
| Clear opening | Inside-face opening in inch and mm | Prevents confusing the open space with wire centre spacing | 2 in × 2 in (50 × 50 mm) square opening | |
| Wire diameter | Nominal finished diameter and tolerance | Controls strength, open area, weight, and price | 2.0 mm finished wire, measured after zinc coating | |
| Construction | Resistance-welded square mesh | Distinguishes welded 2x2 mesh from woven cloth or hexagonal netting | Welded wire mesh, uniform square pattern | |
| Material / finish | GBW, GAW, PVC over zinc, 304, or 316 | Sets corrosion resistance and expected service life | Hot-dip galvanized after welding for an outdoor fence | |
| Roll or panel | Width, length, edge condition, and quantity | Determines manufacturing, freight, and handling | 1.0 m × 30 m roll or 2 × 3 m panel, trimmed edges, 50 rolls | |
| Application | Animal, fence, concrete, guard, or building duty | Ensures the mesh is strong enough and the finish suits the site | Gabion basket liner in a coastal environment |
Common 2x2 Wire Mesh Supply Options
These are common sourcing ranges, not a universal stock commitment. Wire diameter, coating mass, width, roll length, and finished opening tolerance must be confirmed in the quotation.
| Construction and finish | Typical finished wire diameter | Approx. gauge | Common form | Typical use | |
|---|---|---|---|---|---|
| Galvanized before welding (GBW) | 1.2–2.0 mm | 18–14 ga | 1.0 × 30 m roll | Economical fencing, cages, and general barriers | |
| Galvanized after welding (GAW) | 1.4–4.9 mm | 17–6 ga | 1.0 × 30 m roll or panel | Outdoor fences, animal enclosures, and damp service | |
| PVC-coated galvanized mesh | 1.4–2.0 mm core + jacket | Core and jacket specified separately | 1.0 × 30 m roll | Longer-life fences and decorative guards | |
| 304 / 316 stainless welded mesh | 1.2–3.0 mm | ≈ 18–11 ga | 1.0 × 30 m roll or panel | Washdown, food-adjacent, and coastal duty | |
| Plain steel welded mesh | 2.0–4.9 mm | 14–6 ga | Sheet or panel | Concrete reinforcement (6x6-6/6 style) and embedded duty |
Weight Guide for 2x2 Wire Mesh
Theoretical bare-steel weight is for planning freight only. It assumes equal wire diameter in both directions; zinc, PVC, opening tolerance, and roll packing change the shipped weight. Confirm the packing-list weight before booking freight.
| Clear opening | Wire diameter | Theoretical bare-steel weight | Approx. 1 m × 30 m roll | |
|---|---|---|---|---|
| 2 × 2 in (50 × 50 mm) | 1.6 mm | ≈ 0.63 kg/m² | ≈ 19 kg | |
| 2 × 2 in (50 × 50 mm) | 2.0 mm | ≈ 0.99 kg/m² | ≈ 30 kg | |
| 2 × 2 in (50 × 50 mm) | 2.5 mm | ≈ 1.54 kg/m² | ≈ 46 kg | |
| 2 × 2 in (50 × 50 mm) | 3.0 mm | ≈ 2.22 kg/m² | ≈ 67 kg |
Where 2x2 Wire Mesh Works Best
The 2x2 wire mesh opening is small enough to contain poultry and block many pests, yet large enough to keep airflow, visibility, and good open area. Choose the wire diameter, coating, and supply form to match the animal, weather, and duty rather than relying on the opening alone.
2x2 Wire Mesh for Fencing and Garden Barriers
A garden fence that sags, a boundary that a dog pushes through, or a climber that pulls light mesh loose — these repeat repairs end with a rigid 2x2 wire mesh panel or roll. The square 2x2 opening keeps rabbits, larger pests, and many animals out while preserving light, airflow, and a clean sightline. Choose galvanized or PVC-coated 2x2 wire mesh where the barrier stays outdoors in wet conditions.
2x2 Wire Mesh for Chicken Coops and Poultry Runs
A fox or raccoon that claws through thin hexagonal wire once will return every night. Chickens and other poultry need a wire they cannot push through or get trapped in. A 2x2 wire mesh keeps birds contained and blocks many predators when the gauge is heavy enough for the local threat — typically 1.4 mm or heavier for predator-exposed runs. Confirm the animal, predator pressure, and frame spacing before selecting.
2x2 Wire Mesh for Animal Enclosures and Security
Dogs, goats, and other animals that push, climb, or dig against a fence need a stiff welded grid rather than flimsy light mesh. The welded 2x2 pattern holds its shape under pushing and climbing, and heavier gauges resist cutting far better than light woven mesh, so one 2x2 wire mesh fence outlasts several cheaper light-mesh repairs. Use heavier wire or stainless where the mesh is climbed, pushed, or cleaned often.
2x2 Wire Mesh for Concrete Reinforcement
2x2 wire mesh with heavier wire serves as welded wire reinforcement for slabs, footings, and precast elements where the design calls for that spacing. Always follow the structural drawing and applicable standard rather than substituting by opening alone.
2x2 Wire Mesh for Gabion and Erosion Control
Gabion baskets rely on welded mesh panels that hold their shape under heavy stone fill and water flow. A 2x2 wire mesh with the right wire diameter and zinc or PVC finish forms strong gabion liners for retaining walls, channel linings, and erosion control, with the grade and coating matched to the moisture and chloride exposure.
2x2 Wire Mesh for Storage and Machine Guards
Welded 2x2 wire mesh panels divide storage, screen equipment, and protect operators while keeping visibility and airflow. Evaluate impact and regulatory requirements separately from the mesh strength.
Choose the Right 2x2 Wire Mesh Finish
The same 2x2 opening performs differently once the coating, weld route, and steel grade change. Begin with the environment and expected life, then compare price.
Galvanized 2x2 Wire Mesh
GBW uses zinc-coated wire before welding, so weld locations have less zinc protection. GAW coats the fabricated mesh after welding and is generally the stronger choice for exposed outdoor service. Confirm the route rather than simply ordering galvanized.
PVC-Coated 2x2 Wire Mesh
A polymer jacket over galvanized steel adds colour and a second weather barrier. Specify core wire diameter, finished diameter, jacket thickness, colour, and UV expectation rather than ordering green mesh by opening alone.
Stainless 2x2 Wire Mesh
Stainless 304 fits many clean or general-corrosion applications; 316 is better suited to chlorides, salt air, and demanding washdown. Ask for the grade and material certificate when traceability matters.
Plain Steel 2x2 Wire Mesh
Uncoated plain steel is an economical choice where the mesh will be embedded in concrete, painted, or kept dry. It is not suitable for long-term outdoor exposure without an additional protective finish.
How to Select 2x2 Wire Mesh for Your Project
A complete 2x2 wire mesh specification converts quickly into a comparable quote and avoids an unsuitable low-cost substitute. Start with what the mesh must contain, support, or resist.
Confirm the opening in inch and millimetres
2x2 wire mesh means a clear square opening of 2 in × 2 in (50 × 50 mm), commonly written as 50 × 50 mm. State the opening and the wire diameter together so both spacing and strength are clear.
Buy wire diameter in millimetres, not gauge alone
Gauge tables differ by material, standard, and supplier. For 2x2 welded wire mesh, common diameters run from about 1.2 mm (18 ga) to 4.9 mm (6 ga). Ask whether the figure is core wire or finished coated wire.
Match corrosion protection to the environment
Use plain steel for embedded or dry duty, GAW zinc for weather, PVC over zinc for longer life outdoors, 304 for many hygienic duties, and 316 for chlorides and salt air.
Choose a roll, panel, or sheet
Rolls are efficient for continuous runs of fencing and barriers; panels stay flat for gabions, guards, cages, and concrete. Share width, length, edge style, and quantity so packing and freight are realistic.
Check the application-specific risk
Animal, pest, security, structural, and gabion requirements vary. Describe the animal, predator pressure, mounting method, and local regulations so the supplier can recommend a practical wire size and finish.
Request proof for critical orders
For safety, pest-exclusion, concrete, or corrosion-sensitive projects, request samples, measured opening and wire records, coating or grade evidence, weld photos, and an agreed inspection point before final dispatch.
Avoid These 2x2 Wire Mesh Purchasing Errors
Most re-quotes come from missing details rather than from the opening itself. These checks make the order clearer for both buyer and supplier.
Ordering by gauge alone
A stated gauge can be interpreted differently across standards. Put the nominal wire diameter in millimetres and say whether it is core wire or finished coated wire.
Confusing opening with mesh count
2x2 wire mesh names a clear opening, not a woven mesh count. A 2 in square opening and a 2 mesh woven cloth are different products; state the opening and the construction together.
Treating GBW and GAW as identical
Both may be called galvanized, yet their weld protection differs. State galvanized before welding or galvanized after welding when outdoor durability is important.
Skipping packaging and edge details
Rolls can telescope in transit and cut panels can have sharp ends. Confirm core support, waterproof wrapping, roll labels, and whether edges need trimming or framing.
Choosing the wrong mesh family
Hexagonal chicken wire is too soft for predator-exposed runs, while 1/2 in hardware cloth over-restricts airflow and costs more for many jobs. A 2x2 wire mesh offers a practical balance for most fencing, poultry, animal, gabion, and concrete duty; pick by predator pressure, pest size, and ventilation, not by price alone.
Benefits of 2x2 Welded Wire Mesh
2x2 wire mesh combines a rigid square grid with durable steel, giving long life and predictable performance. The right material route determines whether those benefits last in the actual environment.
Sturdy 2x2 Wire Mesh Grid
Resistance-welded intersections hold their shape under pushing, climbing, heavy fill, and light impact, so the mesh keeps a uniform 2x2 opening in daily service.
Long-Lasting 2x2 Wire Mesh Corrosion Routes
Choose plain, zinc, PVC over zinc, 304, or 316 so the mesh does not rust out after one wet season. Match the coating to the moisture, washdown, chloride exposure, and target service life instead of replacing mesh every year.
High Open Area with 2x2 Wire Mesh
The 50 × 50 mm clear opening keeps good airflow, light, and visibility while still containing animals and screening pests — a balance finer meshes cannot offer.
Versatile 2x2 Wire Mesh Supply
Standard-width rolls reduce waste for continuous runs of fencing, while welded panels simplify gabion, concrete, guard, and cage fabrication where repeat panels are needed.
Predictable 2x2 Wire Mesh Freight
Opening, wire diameter, panel size, and theoretical weight give a practical starting point for container planning and receiving checks.
2x2 Wire Mesh Cost Matched to Duty
A plain or electro-galvanized product can serve an economical dry task, while GAW or stainless avoids premature replacement outdoors or in corrosive locations. One 2x2 wire mesh installation often outlasts several cheaper light-mesh repairs, cutting long-term cost.

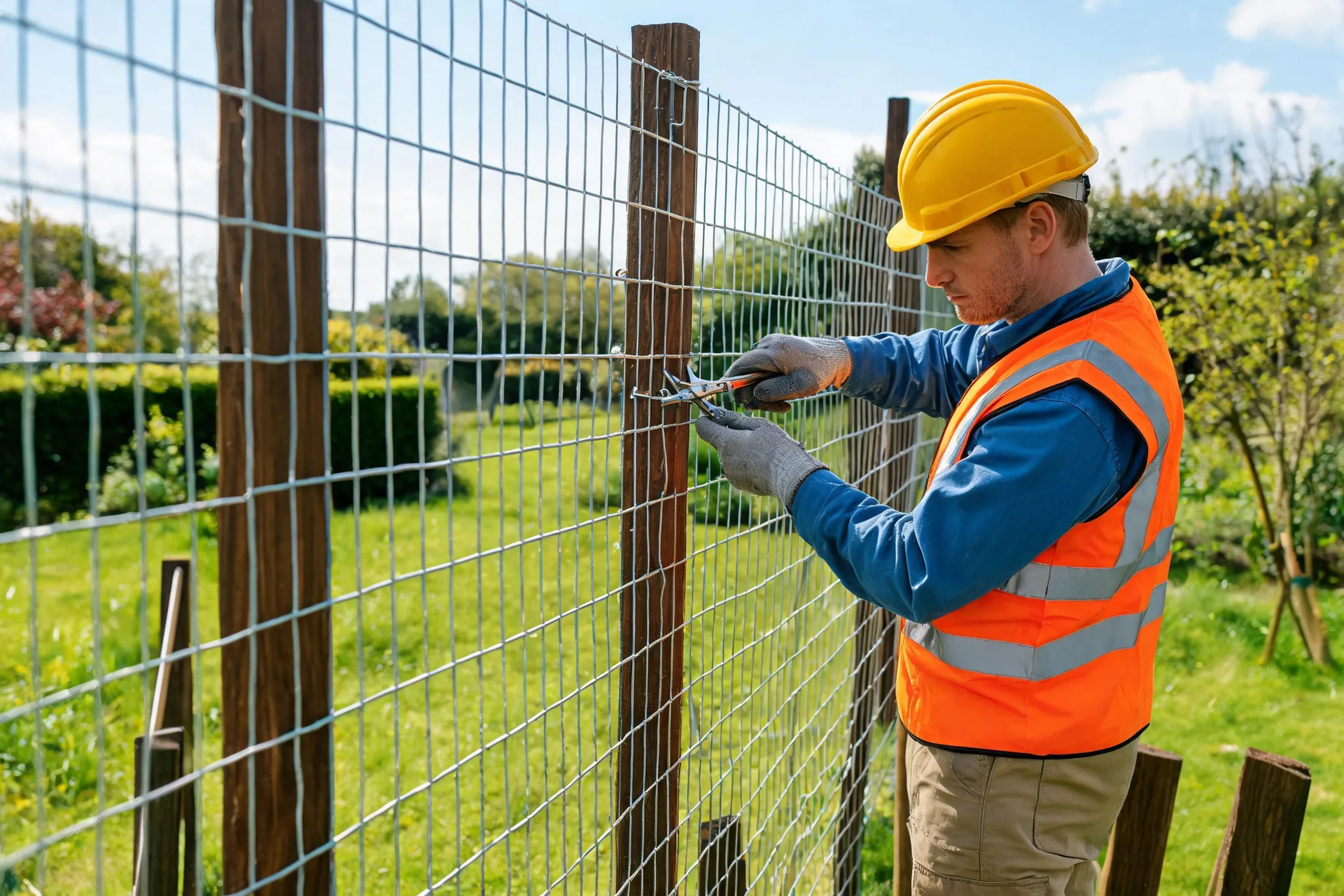

Work to the project safety plan. Treat cut ends as sharp, protect the finish during installation, and use a frame or fasteners suitable for the load and environment. Heavy gauges and large panels need powered lifting and more than one person.
Installing 2x2 Wire Mesh
Inspect before cutting
Compare the delivered roll or panel label, opening, wire diameter, finish, dimensions, and quantity against the purchase order. Photograph visible transit damage before unpacking fully.
Plan the support and overlap
Mark the frame, posts, or structure so the mesh is supported at the required spacing. Overlap or bind joints where the application requires a continuous barrier against pests or animals.
Cut along wire lines and protect edges
Use appropriate cutters, gloves, and eye protection. Trim projecting wire ends or cover them with edging, a frame, or another approved finish for the application.
Fix without damaging the finish
Use compatible clips, staples, ties, or fasteners. Avoid scraping zinc or PVC unnecessarily; repair exposed galvanized areas only where the project specification permits.
Export Packing for 2x2 Wire Mesh
Packing should protect the roll shape, coating, labels, and inspection access from the factory through receiving. Give destination and handling details in the RFQ.
Supported roll cores
Rolls can ship on suitable cores with tied ends to reduce crushing and telescoping during handling.
Moisture protection
Waterproof paper, plastic film, woven bags, or pallet wrapping can be selected for route and container conditions.
Clear bundle labels
Mark each roll or pallet with the wire diameter, opening, finish, dimensions, quantity, gross weight, and purchase-order reference.
Flat-pack cut panels
Protect stacked panels with separators, edge guards, and pallet or case packing where flatness and finish are important.
Confirm shipping instructions
State destination port, trade term, container plan, required documents, inspection needs, and any customer shipping marks before production is packed.
2x2 Wire Mesh in Practical Use
These examples show how the same 2x2 opening needs a different wire diameter, finish, and support arrangement by environment. They are specification examples, not customer claims.
2x2 Wire Mesh Poultry Run
GAW 2x2 wire mesh is supplied in rolls with 1.4 mm wire and fitted to a timber frame at a spacing that stops pushing. The opening keeps birds in, and the galvanized finish after welding handles weather.
2x2 Galvanized Wire Mesh Fence
A PVC-coated 2x2 wire mesh roll forms a low garden fence around a property, with the finish chosen for wet soil contact and the opening sized to block rabbits and larger pests.

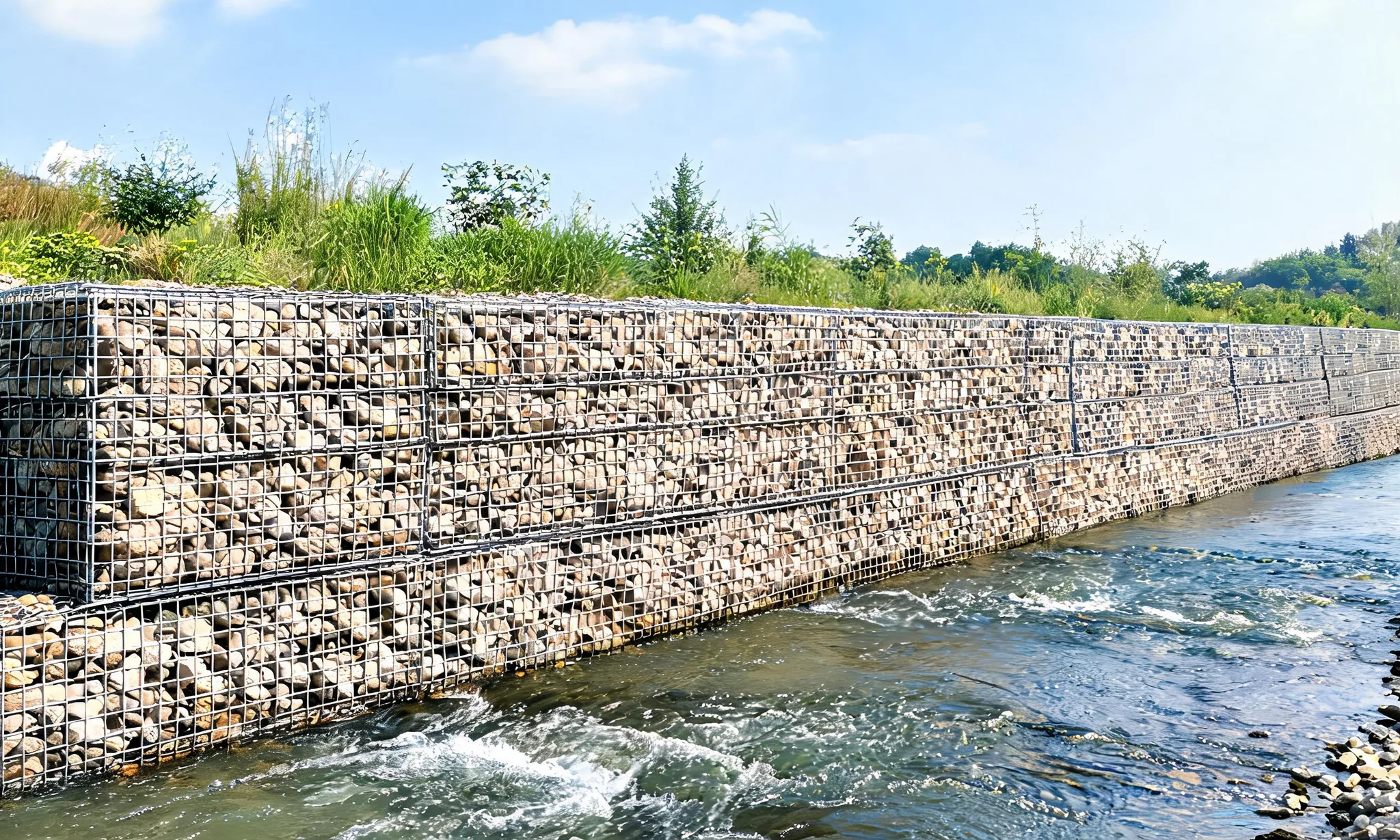

2x2 Wire Mesh Gabion Basket
A 2x2 wire mesh panel with heavier wire is formed into a gabion basket for a retaining wall, with the zinc or PVC finish and wire gauge selected for moisture and chloride exposure.

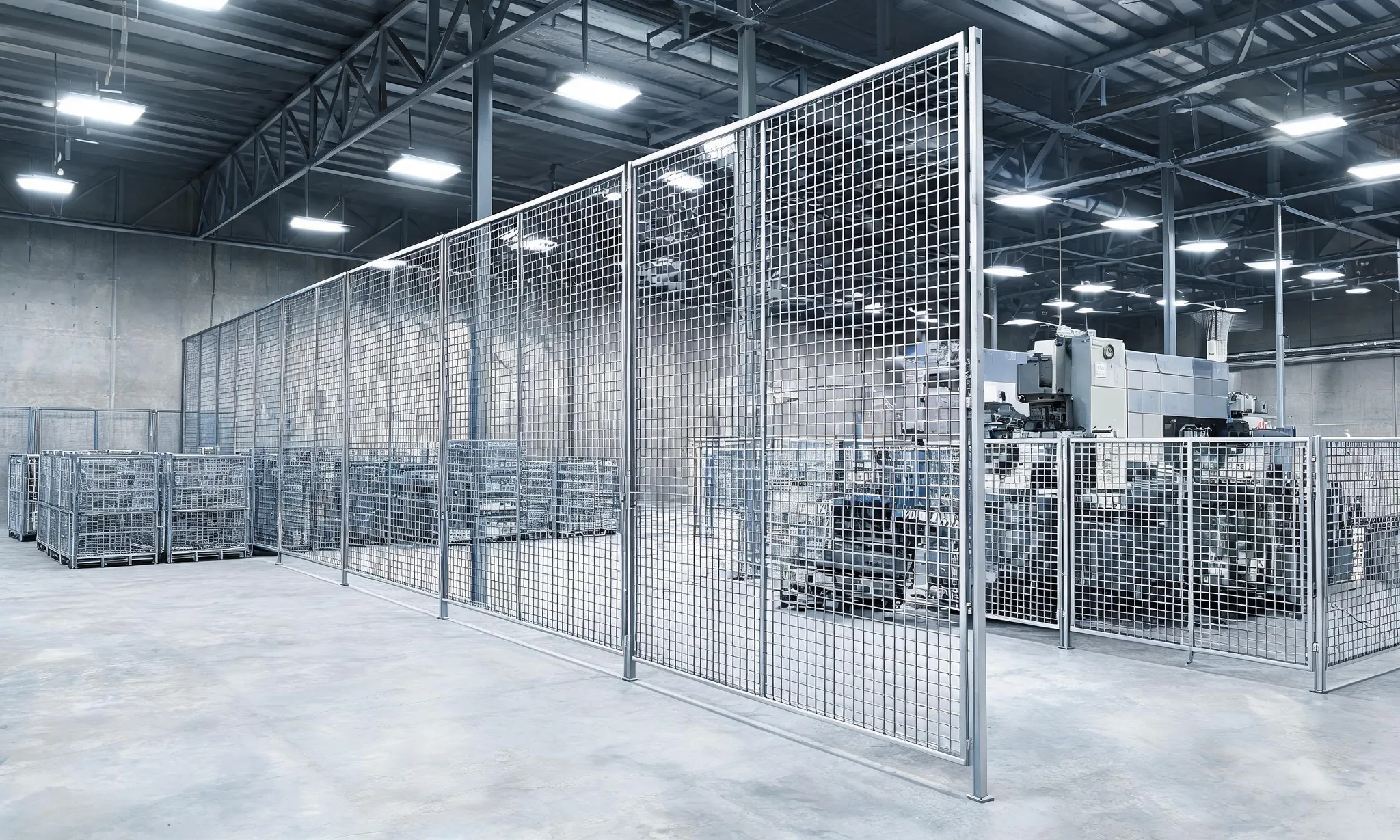

2x2 Wire Mesh Machine Guard and Partition
A framed 2x2 wire mesh panel divides a warehouse or protects an operator while preserving visibility and airflow, with the final design following the safety assessment.
2x2 Wire Mesh References
Use these related pages and standards to refine the specification. Confirm the applicable edition and project requirements before placing an order.
Last updated: 2026-08-20
Related pages
Reference standards
Questions About 2x2 Wire Mesh
Common questions about opening size, wire gauge, materials, applications, and ordering 2x2 welded wire mesh.
Need help specifying 2x2 wire mesh?
Send the opening, wire diameter, finish, dimensions, quantity, application, and destination. We will return a specification-led sourcing response.
Request a QuoteRequest 2x2 Wire Mesh Pricing
Send your clear opening in inch and millimetres, wire diameter, coating or stainless grade, roll or panel size, quantity, application, destination, and target delivery date for a specification-led quote.
