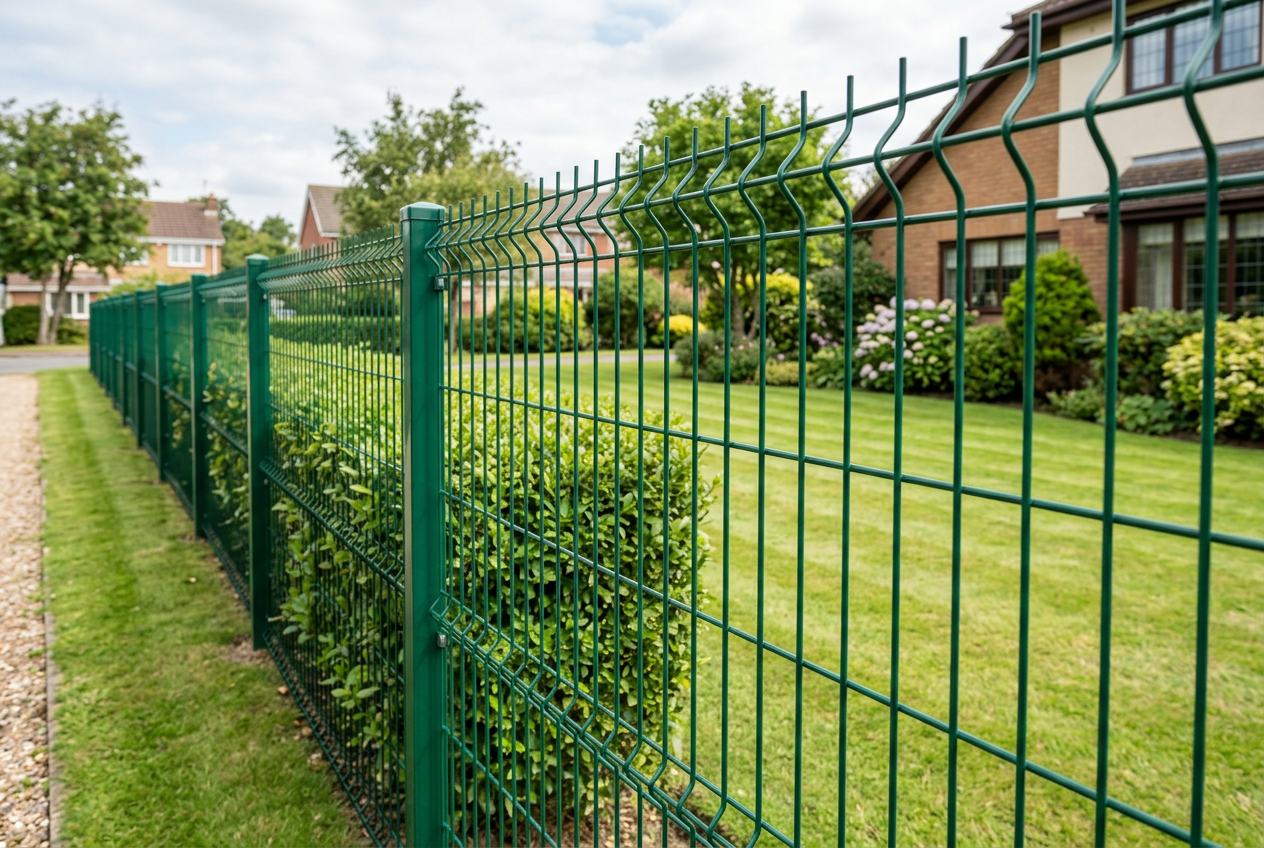

PVC Coated Wire Mesh Supplier: Vinyl Coated Rolls & Panels
Source PVC coated wire mesh with a galvanized steel core in green, black, and custom colors. Compare welded, chain link, and hexagonal constructions, then request a factory quote.
View SpecificationsPVC Coated Wire Mesh Coating and Specifications
PVC coated wire mesh combines a sacrificial zinc layer with a plastic jacket: the core wire carries an electro or hot-dip galvanized coating, and a 0.4-0.8 mm PVC layer is extruded or bonded over it. State the core coating class, jacket thickness, color, construction, opening, wire diameter, and quantity in every RFQ.
Galvanized core wire (electro or hot-dip per ASTM A641) plus a 0.4-0.8 mm PVC jacket
PVC coated welded wire mesh, chain link fence fabric, and hexagonal wire netting
RAL 6005 moss green and RAL 9005 black standard; gray, blue, and custom colors on request
Welded mesh from 1/2 inch upward; chain link 1-3/4 to 2-1/4 inch; hexagonal netting 1/2 to 2 inch
1.6-4.5 mm coated diameter; state both coated and core wire dimensions in the RFQ
Rolls 1-2 m high by 15-30 m long, flat panels, and cut-to-size pieces
Select one or more specifications. Your choices will be included in the quote request.
0 specs selected
| Coating route | Structure | Expected service | Typical use and RFQ note | |
|---|---|---|---|---|
| PVC over electro galvanized core | Thin zinc (10-30 g/m2) plus PVC jacket | Moderate outdoor life; economy color fencing | Budget garden and residential fence mesh. Confirm jacket thickness and adhesion in the RFQ. | |
| PVC over hot-dip galvanized core | Heavy zinc (45-200 g/m2) plus PVC jacket | Long outdoor and coastal service with color | Perimeter, coastal, and security fencing. The jacket sheds water while zinc guards every scratch. | |
| PE coated wire mesh | Polyethylene jacket over galvanized wire | Similar service at lower cost; stiffer in cold | Economy alternative where flexibility and gloss matter less. Name PE explicitly to avoid quoting errors. | |
| Powder coated mesh | Paint layer on galvanized or bare welded mesh | Color without a full jacket; edges stay exposed | Architectural screens and indoor panels. Not a substitute for a full PVC jacket outdoors. |
Common Stock Sizes: PVC Coated Welded Wire Mesh
Typical stock specifications in green and black finishes. Rolls are commonly 1-1.8 m high by 15-30 m long; panels typically 1 m x 2 m. Confirm coated and core wire diameters at RFQ.
| Opening | Coated wire (mm) | Core wire (mm) | Form | Common use | |
|---|---|---|---|---|---|
| 1/2 in x 1/2 in | 1.6-2.0 | 1.2-1.6 | Rolls | Garden and poultry enclosures | |
| 1 in x 1 in | 2.0-2.5 | 1.6-2.0 | Rolls | Residential boundary fencing | |
| 1 in x 2 in | 2.5-3.0 | 2.0-2.5 | Rolls | Perimeter and garden fencing | |
| 2 in x 2 in | 2.8-3.5 | 2.3-3.0 | Rolls and panels | Security and farm fencing | |
| 2 in x 4 in | 3.2-4.5 | 2.6-3.8 | Panels | Heavy perimeter and enclosure panels |
PVC Coated Chain Link Fence Common Specifications
Typical heights and wire gauges for residential, sports, and security runs in RAL 6005 green and RAL 9005 black. Post outside diameter and wall thickness are stated at RFQ; framework can be galvanized or PVC coated to match the fabric.
| Fence height | Coated wire (mm) | Gauge (approx.) | Mesh opening | Framework reference | |
|---|---|---|---|---|---|
| 3 ft (0.9 m) | 2.5-3.0 | 11.5-11 ga | 1-3/4 in to 2 in | 1.315 in OD posts | |
| 4 ft (1.2 m) | 2.5-3.2 | 11.5-10 ga | 2 in standard | 1.66 in OD line posts | |
| 5 ft (1.5 m) | 2.8-3.5 | 11-9.5 ga | 2 in standard | 1.66-1.9 in OD line posts | |
| 6 ft (1.8 m) | 3.0-3.8 | 10-9 ga | 2-1/4 in common | 1.9 in OD line posts | |
| 8 ft (2.4 m) | 3.5-4.2 | 9-8 ga | 2-1/4 in | 2-3/8 in OD terminal posts | |
| 10-12 ft (3-3.7 m) | 3.8-4.5 | 9-8 ga | 2-1/4 in | 2-7/8 in OD terminal posts |
PVC Coated Hexagonal Wire Netting Common Sizes
Coated double-twist netting for poultry, aviaries, and landscape duty. The jacket keeps handling soft and the netting flexible. Confirm roll width and length against the project at RFQ.
| Mesh opening | Coated wire (mm) | Roll width | Roll length | Common use | |
|---|---|---|---|---|---|
| 1/2 in | 1.6-2.0 | 1 m (3 ft) | 30 m | Poultry and small animal pens | |
| 3/4 in | 1.6-2.2 | 1-1.2 m | 30 m | Aviaries and garden protection | |
| 1 in | 2.0-2.5 | 1-1.5 m | 30 m | General enclosure netting | |
| 1-1/2 in | 2.2-2.8 | 1-1.5 m | 30 m | Larger pens and slope netting | |
| 2 in | 2.5-3.0 | 1-1.8 m | 30 m | Livestock and landscape netting |
PVC Coated Welded Wire Mesh Weight Chart
Theoretical weight from the steel core diameter plus an allowance for the PVC jacket, for freight and handling estimates: steel kg/m2 = d(mm)^2 x 0.00617 x (1000/pitch1 + 1000/pitch2), then add roughly 10-15 percent for the jacket. Confirm exact weights on the packing list.
| Opening | Core wire (mm) | Weight incl. jacket (kg/m2) | 1 m x 30 m roll (kg) | |
|---|---|---|---|---|
| 1/2 in x 1/2 in | 1.4 | 2.1 | 63 | |
| 1 in x 1 in | 1.8 | 1.8 | 53 | |
| 1 in x 2 in | 2.0 | 3.2 | 96 | |
| 2 in x 2 in | 2.5 | 2.5 | 75 | |
| 2 in x 4 in | 3.2 | 4.1 | 123 |
Container Loading Reference: PVC Coated Wire Mesh
Reference loading for freight planning, assuming standard 1 m x 30 m rolls and 1 m x 2 m panels. Rolls stow denser than panels. Road weight limits at destination and the final packing list govern.
| Container | Rolls (welded / chain link) | Panels | Approximate coverage | |
|---|---|---|---|---|
| 20' GP | 80-120 rolls | 400-600 panels | 2,500-4,000 m2 | |
| 40' GP | 160-240 rolls | 800-1,200 panels | 5,000-8,000 m2 | |
| 40' HQ | 180-260 rolls | 900-1,400 panels | 6,000-9,000 m2 |
How Long Does PVC Coated Wire Mesh Last? Service Life by Environment
Reference years to first jacket repair, assuming a UV-stable 0.6-0.8 mm jacket. The jacket sets the upper bound; the core zinc class decides what happens after scratches and cut ends. Confirm both at RFQ.
| Core coating under the jacket | Rural | Suburban / urban | Industrial | Coastal | |
|---|---|---|---|---|---|
| Electro galvanized core 10-30 g/m2 | 15-25 years | 10-18 years | 7-12 years | 5-8 years | |
| Hot-dip galvanized core 45-200 g/m2 | 20-25+ years | 15-22 years | 10-18 years | 10-15 years |
Popular RAL Colors for PVC Coated Wire Mesh
Green and black run in stock programs; other colors produce in batch lots with a minimum order. Approve a production swatch before bulk so the whole fence line carries one color.
| RAL code | Color | Gloss | Typical use | Availability | |
|---|---|---|---|---|---|
| RAL 6005 | Moss green | Matte to semi-gloss | Residential, garden, and landscape fencing | Stock programs, low MOQ | |
| RAL 9005 | Jet black | Semi-gloss | Architectural and commercial perimeters | Stock programs, low MOQ | |
| RAL 7040 | Window gray | Semi-gloss | Municipal and industrial fencing | Custom batch, MOQ applies | |
| RAL 5015 | Sky blue | Semi-gloss | Sports facilities and branded enclosures | Custom batch, MOQ applies | |
| RAL 9016 | Traffic white | Semi-gloss | Decorative screens and light perimeters | Custom batch, MOQ applies |
PVC Coated Wire Mesh RFQ Template
Copy this field list into your inquiry. A complete RFQ gets one accurate quote instead of three rounds of clarification.
| Field | Example | Why it matters | |
|---|---|---|---|
| Construction | PVC coated welded wire mesh | Sets the production line and quoting basis | |
| Mesh opening | 50 x 50 mm (2 in x 2 in) | Defines what the fence keeps in or out | |
| Coated / core wire diameter | 3.0 mm coated over 2.5 mm core | Avoids gauge ambiguity; both numbers drive price | |
| Core zinc coating | Hot-dip, 60 g/m2 min per ASTM A641 | Backup protection at scratches and cut ends | |
| Jacket thickness | 0.6 mm min, UV-stable compound | Sets outdoor life and crack resistance | |
| Color | RAL 6005 moss green, semi-gloss | Locks appearance and prevents batch disputes | |
| Form and dimensions | Rolls, 1.5 m high x 30 m | Sets packing, loading, and handling needs | |
| Quantity and destination | 500 rolls, CIF Rotterdam | Drives price tier and freight planning | |
| Certificates / inspection | Coating certificates + SGS pre-shipment | Defines acceptance criteria up front |
PVC Coating Acceptance Checklist
Use these checkpoints to verify PVC coated wire mesh on arrival. State the target values in the RFQ so the factory quotes against them.
| Checkpoint | Typical target | Why it matters | |
|---|---|---|---|
| Jacket thickness | 0.4-0.8 mm over the zinc layer | Thin jackets crack and expose the core within a few seasons | |
| Core coating | Electro or hot-dip zinc under the jacket | An ungalvanized core rusts from the first scratch | |
| Adhesion | Jacket does not slip or split when bent 180 degrees | Loose jackets let water travel along the wire | |
| Color and gloss | RAL reference matched, uniform gloss | Mixed batches fade differently and show patchwork | |
| UV stability | UV-stable PVC compound stated | Non-stabilized jackets chalk, embrittle, and fade | |
| Surface finish | Smooth, no bubbles, cracks, or bare spots | Every pinhole is a corrosion starting point |
PVC Coated vs Galvanized vs Stainless Steel Wire Mesh
The three mainstream corrosion-protection routes for wire mesh. Start from the environment and appearance target, then let cost decide between candidates.
| Factor | PVC coated (galvanized core) | Galvanized | Stainless 304 / 316 | |
|---|---|---|---|---|
| First cost | Low to medium | Lowest | 3-5x galvanized | |
| Outdoor service life | 10-25 years; the jacket shields the zinc | 2-25+ years by coating mass | Decades; no coating to fail | |
| Coastal and chloride exposure | Good; the jacket sheds salt spray | Shortened; heavy hot-dip only | Best; choose 316 or 316L | |
| Appearance | Green, black, or custom colors that blend in | Bright silver that dulls to matte gray | Bright metallic that stays clean | |
| Repair after cutting | Patch the jacket and the zinc beneath | Zinc-rich paint on cut ends | Passivate after welding or cutting | |
| Best for | Decorative and coastal perimeters, fencing | Fences, farms, construction, gabions | Marine, food, chemical, and architectural duty |
Constructions We Supply in PVC Coated Steel
One coating family, many constructions. Compare welded, chain link, hexagonal, and panel formats of PVC coated wire mesh before you specify.
PVC coated welded wire mesh
Rigid coated grid in rolls and panels; the workhorse for boundary, garden, and security fencing.
PVC coated chain link fence
Diamond-pattern fence fabric in green and black, supplied with matching posts, rails, and fittings.
PVC coated hexagonal wire netting
Coated chicken wire and poultry netting that bends to curves and shapes without cracking the jacket.
PVC coated welded panels
Heavier coated panels with framed or raw edges for enclosures, partitions, and decorative screens.
PVC Coated Wire Mesh Products
View all products
Where PVC Coated Wire Mesh Is Used
Choose PVC coated wire mesh when the fence must last outdoors and look good doing it.
Residential and garden fencing
Green and black PVC coated welded wire mesh blends into hedges and landscaping for boundary fences that do not read as industrial.

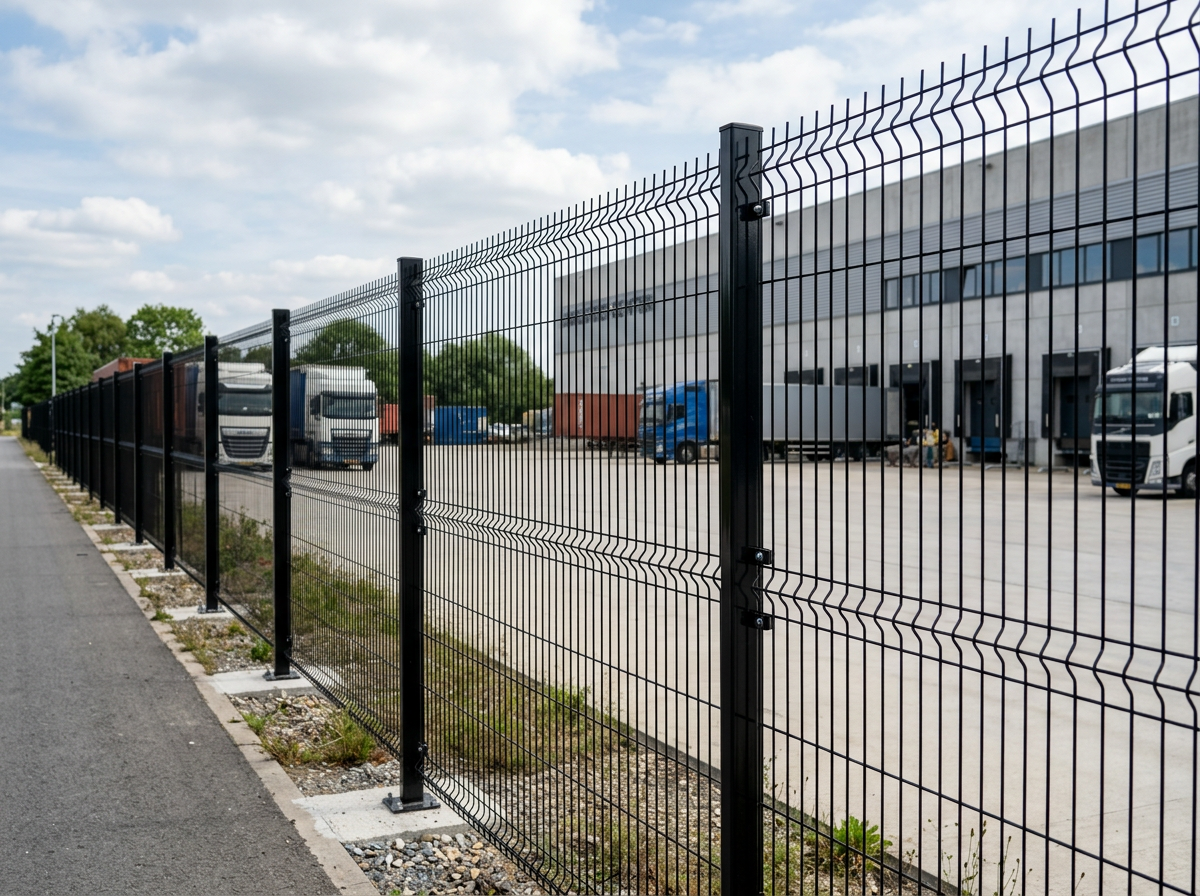

Security and perimeter fencing
PVC coated welded panels and chain link fabric secure sites, depots, and utilities with color-matched posts and fittings.
Coastal and waterside fences
The jacket sheds salt spray while the galvanized core guards scratches, making PVC coated wire mesh a staple on coastal perimeters.
Agriculture and animal enclosures
PVC coated hexagonal netting and welded rolls for poultry runs, aviaries, and livestock pens that wash down without rust stains.
Sports and playground areas
Vinyl coated chain link fence encloses courts and play areas with a softer, safer touch and colors that match club branding.
Highway and landscape screens
PVC coated mesh panels line roadsides and parks, staying color-stable through years of sun, rain, and road spray.
How to Select the Right PVC Coated Wire Mesh
Start from the environment and appearance target, then fix core coating, jacket, construction, opening, and verification. A complete RFQ avoids assumptions and re-quotes.
By service environment
Mild inland sites suit PVC over electro galvanized core. Coastal, industrial, or high-humidity exposure calls for a hot-dip galvanized core under the jacket.
Electro or hot-dip core?
An electro core keeps cost down for budget color fencing. A hot-dip core multiplies backup protection for scratches and cut ends.
Jacket thickness matters
0.4 mm jackets serve light garden duty; 0.6-0.8 mm jackets suit security and coastal fencing. State the target thickness, not just 'PVC coated'.
Fix the color with a RAL code
'Green' varies by factory. Quote against RAL 6005, RAL 9005, or your project code, and approve a sample swatch before bulk.
By construction
Welded PVC coated wire mesh gives rigid lines. Chain link fabric suits long flexible runs. Hexagonal netting wraps curves and animal pens.
By opening and wire diameter
Define what the mesh must keep in or out, then state coated and core wire diameters separately to avoid gauge ambiguity.
Match posts and fittings
Order PVC coated posts, tension wire, and fittings with the mesh so the whole fence line carries one color and one protection level.
Verify coating, not just color
Ask for jacket thickness and adhesion results, and confirm the core coating class on the certificate before shipment.
PVC Coated Wire Mesh Buying Mistakes to Avoid
Six errors that shorten service life or trigger color disputes. Each one is avoidable at the RFQ stage.
Buying color without checking the core
A bright jacket over ungalvanized or thin-coated wire rusts from the first scratch. Confirm the core coating class on the certificate.
Ignoring jacket adhesion
Loose jackets slip when the mesh is tensioned and split at folds. Require a bend check and state adhesion expectations in the RFQ.
Specifying 'green' without a RAL code
Every factory mixes green differently. Lock the color with a RAL reference and an approved sample before bulk production.
Using thin jackets on coastal sites
0.4 mm jackets embrittle fast in salt air. Coastal perimeters need 0.6-0.8 mm UV-stable jackets over a hot-dip core.
Forgetting cut-end protection
Cut ends expose bare wire and rust first. Order matching caps, sleeves, or touch-up compound with the mesh.
Mixing coated and uncoated fittings
Bare tension wire and fittings rust and stain the coated fabric. Keep posts, rails, and hardware in the same coating family.
Why Buyers Choose PVC Coated Wire Mesh
PVC coated wire mesh pairs zinc protection with a color jacket: longer outdoor life than plain coatings, at a fraction of stainless cost.
Dual-layer corrosion protection
The PVC jacket blocks moisture and UV while the galvanized core sacrifices itself at scratches, doubling the defense on every wire.
Colors that blend or brand
Moss green disappears into landscaping; black reads architectural. Custom RAL colors match corporate and municipal specifications.
Long outdoor service life
A quality jacket over a hot-dip core delivers 10-25 years of outdoor service with no painting or recoating.
Verified coating on arrival
Jacket thickness, adhesion, and core coating class are checkable with simple tools; certificates can accompany every shipment.
Ready stock, fast lead time
Standard green and black welded rolls and chain link fabric ship from stock programs in days.
Low maintenance
Rain keeps PVC coated wire mesh clean; occasional washing restores the color with no zinc-rich paint or touch-ups.

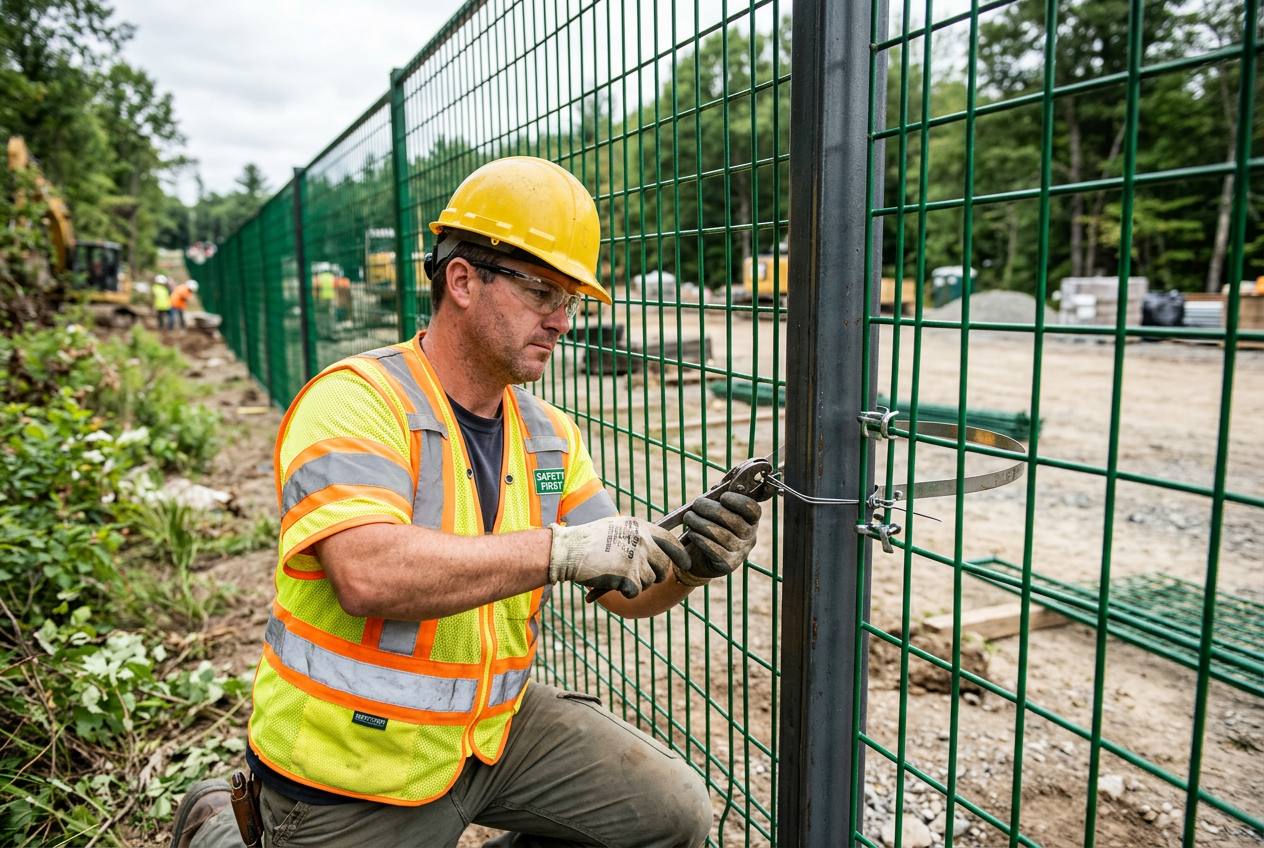

Protect the jacket. Cut cleanly, cap cut ends, and tension evenly for a long, neat service life.
Working with PVC Coated Wire Mesh
Handle rolls without dragging
Drag marks scrape the jacket down to bare wire. Lift rolls with spreaders and keep them wrapped until placement.
Cut cleanly and cap the ends
Use bolt cutters or shears, never a torch, which melts the jacket back from the cut. Cap or seal exposed ends with matching touch-up compound.
Tension evenly with coated fittings
Use PVC coated tension wire, bands, and ties. Bare fittings rust and stain the coated fabric; overtensioning splits the jacket at folds.
Keep it away from heat sources
PVC softens above about 60 C and burns when welded. Plan cut lines away from grills, flues, and hot process equipment.
PVC Coated Wire Mesh Packing for Export
Packing protects the jacket finish, keeps rolls round, and preserves traceability through transit and receiving inspection.
Rolls wrapped and palletized
Rolls ship wrapped in waterproof film and woven bags, stood on pallets with protected ends to prevent jacket scuffs.
Flat packs for panels
Coated panels pack flat on pallets or in plywood cases with corner protection and strapping that never bears on the coating.
Label by color and spec
Each bundle carries construction, opening, coated and core wire diameter, dimensions, quantity, and the RAL color code.
Coating certificates
Jacket thickness, adhesion, and core zinc class certificates accompany the shipment when requested in the RFQ.
Share destination details
State destination port, trade term, container plan, and inspection requirements. Pre-shipment inspection by SGS, BV, or TÜV is available on request.
PVC Coated Wire Mesh in Service
Use scenarios show how core coating and jacket change by duty; they are not customer claims.

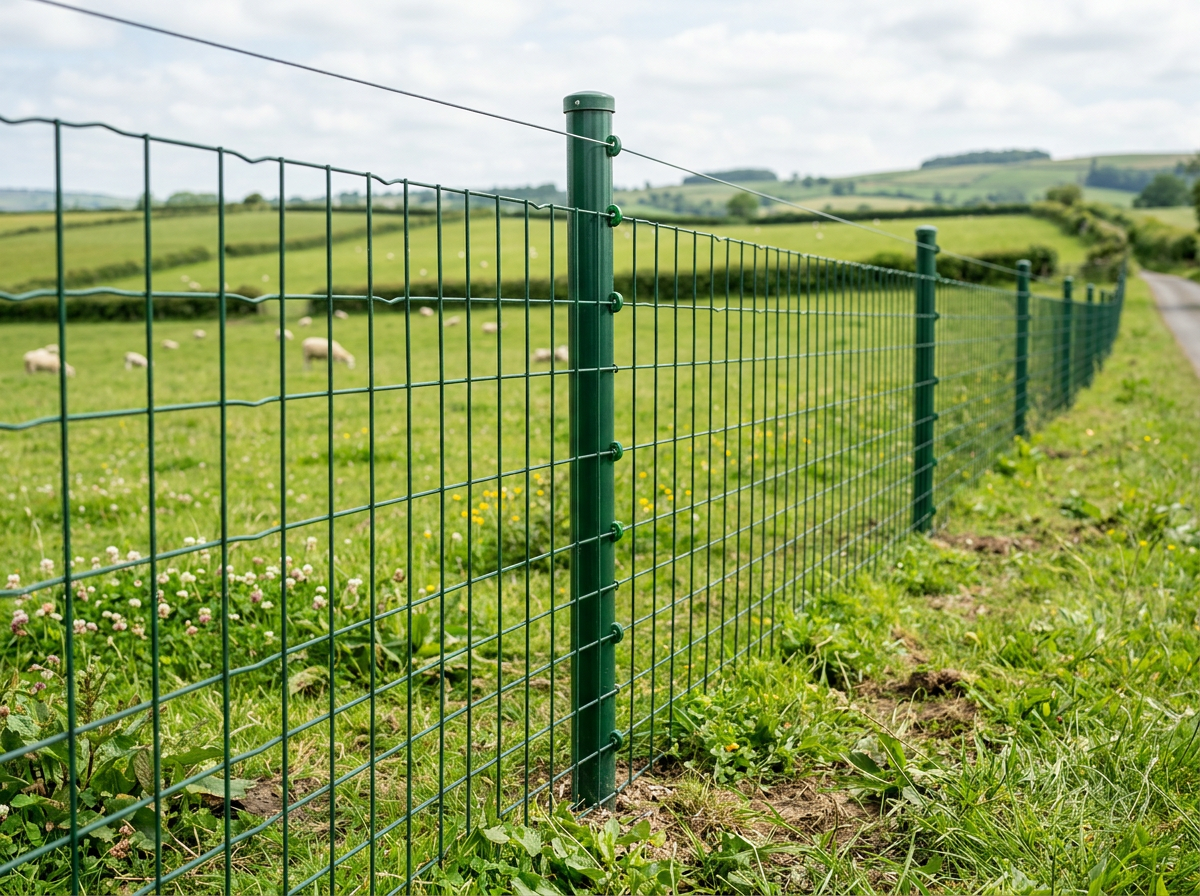

Farm and garden perimeter
Green PVC coated welded mesh rolls specified for a multi-year farm boundary, balancing core zinc class, jacket thickness, and budget.
Security perimeter fencing
Black PVC coated welded panels with matching coated posts chosen for a depot perimeter that must read clean and professional.
Equipment enclosure panels
PVC coated welded panels framed into outdoor enclosures where color coding and rust-free service were both required.
PVC Coated Wire Mesh Sourcing Resources
Compare constructions and coating routes. Confirm the project requirements and color reference before ordering.
Last updated: 2026-08-05
Related pages
Reference standards
PVC Coated Wire Mesh FAQ
Common procurement questions about coatings, colors, constructions, and ordering PVC coated wire mesh.
Still have questions about PVC coated wire mesh?
Send your construction, opening, wire diameter, core coating class, color reference, and quantity. Our sourcing team replies with a specification-led review.
Request a QuoteRequest PVC Coated Wire Mesh Pricing
Send construction, opening, coated and core wire diameter, core zinc class, jacket thickness, RAL color, dimensions, quantity, application, and destination for a specification-led sourcing review. Our team replies with matched PVC coated wire mesh options and a factory quote.
