Wire Mesh Shelving: Custom Racks & Shelf Decking | Factory Quote
Source custom wire mesh shelving units and wire mesh shelf decking panels from verified factories. Compare mesh size, wire gauge, load capacity, and finish for warehouse racks, retail shelving, and cold storage. Get a factory quote.
View SpecificationsWire Mesh Shelving Specifications
A wire mesh shelving system is defined by six variables: opening size, wire diameter, shelf panel dimensions, edge style, material, and finish. State all six in every RFQ so the shelving matches your rack beams, load, and environment the first time.
Square openings from 25x25 mm to 150x150 mm, plus rectangular apertures, chosen so stored items stay on the wire mesh shelf and never slip through to the floor
1.2-6.0 mm low-carbon steel wire for welded wire mesh shelving panels, sized to the intended shelf load and span between rack beams
Standard shelf panels from 900x400 mm to 1,800x600 mm, with custom lengths, widths, and depths for existing racks and unusual bay sizes
Plain-edge panels for rack beams, angle-edge and flat-edge wire mesh shelf decking with anti-slip embossing, and framed panels for freestanding shelving units
Low-carbon steel wire as standard with electro galvanized, hot-dip galvanized, or PVC-coated finish; 304 and 316 stainless steel for wet, hygienic, or food-contact shelving
Galvanized wire per ASTM A641, welded steel wire fabric per ASTM A185, and hot-dip coating per ISO 1461; load-rated rack design follows applicable local storage codes
Select one or more specifications. Your choices will be included in the quote request.
0 specs selected
| Opening size | Wire diameter | Typical load per shelf | Best for and RFQ note | |
|---|---|---|---|---|
| 25x25 mm | 1.2-2.0 mm | Light, up to 40 kg per panel | Small parts and retail wire mesh shelving where items must not fall through. State panel size and load in the RFQ. | |
| 50x50 mm | 2.0-3.0 mm | Medium, up to 100 kg per panel | General warehouse wire mesh shelving and rack decking. The most common opening for shelf panels. | |
| 75x75 mm | 2.5-4.0 mm | Medium-heavy, up to 180 kg per panel | Cartons, bins, and bulk storage where airflow and visibility matter more than small-part retention. | |
| 100x100 mm | 3.0-5.0 mm | Heavy, up to 300 kg per panel | Pallet support, heavy cartons, and industrial shelving racks. Confirm beam spacing in the RFQ. | |
| 150x150 mm | 4.0-6.0 mm | Extra heavy, up to 500 kg per panel | Heavy-duty wire mesh shelving for bulk storage and machine parts with welded frame edges. |
Common Shelf Panel Sizes: Wire Mesh Shelving
Typical stock wire mesh shelving panels in welded construction. Custom lengths, widths, depths, and edge styles are available at MOQ; confirm tolerance and finish at RFQ.
| Panel size (mm) | Opening (mm) | Wire (mm) | Typical load | Common use | |
|---|---|---|---|---|---|
| 900 x 400 | 25x25 | 2.0 | 40 kg | Light retail and small-parts shelf | |
| 900 x 500 | 50x50 | 2.5 | 80 kg | Standard warehouse wire mesh shelving | |
| 1200 x 400 | 50x50 | 3.0 | 100 kg | Long-span rack shelf insert | |
| 1200 x 600 | 75x75 | 3.5 | 150 kg | Heavy carton and bin storage | |
| 1500 x 600 | 100x100 | 4.0 | 220 kg | Industrial shelving racks and decking | |
| 1800 x 600 | 150x150 | 5.0 | 350 kg | Heavy-duty bulk storage shelf |
Choosing the Finish for Wire Mesh Shelving
Finish decides rust resistance, appearance, and price. Match the coating to the environment before ordering wire mesh shelving panels.
| Finish | Coating | Environment fit | Typical shelving duty | |
|---|---|---|---|---|
| Electro galvanized | Zinc plating, thin and smooth | Dry indoor warehouses and shops | Low-cost wire mesh shelving where the air is dry | |
| Hot-dip galvanized | Thick zinc layer, 40-85 micron | Humid, outdoor, and wash-down areas | Industrial and garage shelving that sees moisture | |
| PVC coated | PVC fused over zinc, 0.3-0.5 mm | Indoor and outdoor with rough handling | Retail display shelving and scuff-resistant racks | |
| Stainless steel | No coating, alloy protected | Wet, hygienic, food-contact duty | Cold rooms, clean rooms, and food industry shelves |
Wire Mesh Shelving vs. Wood Decking and Solid Shelves
Compare shelf surfaces by load, fire safety, ventilation, and cost. Welded wire mesh shelving decking wins where visibility, airflow, and sprinkler access matter.
| Option | Load and durability | Fire and sprinkler | Ventilation and hygiene | Relative cost | |
|---|---|---|---|---|---|
| Solid wood decking | Load-rated but warps and absorbs moisture over time | Blocks sprinkler water from reaching the level below | Poor airflow; traps dust, mold, and pests | Low upfront, high replacement cost | |
| Steel sheet or box deck | Very high, load-rated | Blocks sprinkler water and light | Poor ventilation; traps dust and debris | Medium to high | |
| Wire mesh shelving decking | Load-rated to match; open mesh holds weight while keeping items visible | Allows sprinkler water and light to reach every level | Full airflow and visibility through each wire mesh shelf | Medium; low freight from nested packing |
Load Capacity Reference for Wire Mesh Shelving
Estimate shelf load and open area for your wire mesh shelving panels when calculating rack capacity, freight, and visibility.
| Opening size | Wire diameter (mm) | Open area (%) | Typical shelf load (kg/m²) | Typical use | |
|---|---|---|---|---|---|
| 25x25 mm | 2.0 | 44 | 150 | Small-parts retail and tool shelving | |
| 50x50 mm | 2.5 | 60 | 180 | General warehouse wire mesh shelving | |
| 50x50 mm | 3.0 | 55 | 240 | Standard rack shelf decking | |
| 75x75 mm | 3.5 | 72 | 300 | Heavy carton and bin storage | |
| 100x100 mm | 4.0 | 78 | 380 | Industrial pallet support shelving | |
| 150x150 mm | 5.0 | 82 | 450 | Heavy-duty bulk storage shelves |
Wire Mesh Shelving by Application
A practical starting point for choosing opening size, panel size, and finish for wire mesh shelving by use case.
| Application | Opening size | Panel size | Finish | Why | |
|---|---|---|---|---|---|
| Warehouse pick racks | 50x50 or 75x75 mm | 1200 x 500 mm | Electro galvanized | Keeps cartons visible and sprinkler-accessible across every shelf level | |
| Retail backroom display | 25x25 or 50x50 mm | 900 x 400 mm | PVC coated | Clean appearance with coated color options for branded stockrooms | |
| Cold storage shelves | 25x25 mm | 1200 x 600 mm | Stainless steel | Hygienic wire mesh shelves that survive wash-down and sub-zero temperatures | |
| Garage and workshop | 50x50 mm | 900 x 500 mm | Hot-dip galvanized | Rust resistance for tools, tires, and equipment in damp garages | |
| Tool and parts storage | 25x25 mm | 900 x 400 mm | Electro galvanized | Small parts stay on the wire mesh shelf while remaining visible for inventory | |
| Clean room and food plant | 25x25 mm | 1000 x 500 mm | Stainless steel | No trapping surfaces, easy wash-down, and no coating that can chip into product |
Standards and Compliance for Wire Mesh Shelving
Wire mesh shelving material and rack safety are governed by regional standards. Confirm which standard applies to your site and state it in the RFQ.
| Standard | Region | Scope | Key requirement | |
|---|---|---|---|---|
| ASTM A641 / A185 | International | Wire and welded fabric | Zinc coating and welded steel wire fabric material specifications | |
| ISO 1461 | International | Hot-dip galvanizing | Coating thickness and quality for hot-dip galvanized steel shelves | |
| RMI MH16.1 | United States | Steel storage rack design | Load capacity, beam deflection, and seismic requirements for industrial shelving racks | |
| EN 15512 | Europe | Steel static storage systems | Structural safety and load verification for adjustable pallet racking with decking | |
| OSHA 29 CFR 1910 | United States | Storage and rack safety | Rack inspection, load rating, and housekeeping around wire mesh shelving racks |
Rack Beam Spacing and Installation Reference
Wire mesh shelf decking spans between rack beams, so beam spacing decides the panel size and wire gauge you need. Confirm beam centers before ordering wire mesh shelving panels.
| Shelf load | Typical beam spacing | Panel size | Wire (mm) | Edge style | |
|---|---|---|---|---|---|
| Up to 100 kg | 800-1,000 mm | 900 x 400 mm | 2.0-2.5 | Plain edge | |
| 100-200 kg | 1,000-1,200 mm | 1,200 x 500 mm | 2.5-3.0 | Angle or flat edge | |
| 200-400 kg | 1,200-1,500 mm | 1,500 x 600 mm | 3.5-5.0 | Angle edge | |
| 400-600 kg | 1,500-1,800 mm | 1,800 x 600 mm | 5.0-6.0 | Welded frame |
Wire Mesh Shelving Types We Source
Three sourcing routes cover almost every shelving need. Compare construction, load, and price before you specify wire mesh shelving.
Wire mesh shelf decking panels
The workhorse of wire mesh shelving: welded steel panels with plain or angle edges that drop onto existing rack beams to turn any pallet rack into a strong, visible shelf. Available from 25x25 mm to 150x150 mm openings.
Freestanding wire mesh shelving units
Complete shelving units with welded mesh shelves, steel uprights, and load-rated frames that stand alone without racking. Ideal for garages, retail backrooms, and workshops where no rack structure exists.
Wire mesh shelf accessories and bins
Shelf dividers, bin boxes, lay-in dividers, and back panels that organize individual shelf levels, keep SKUs separated, and prevent items from falling off the back of wire mesh shelves.
How to Select the Right Wire Mesh Shelving
Start from the load and the environment, then fix opening size, wire diameter, panel size, edge style, and finish. A complete wire mesh shelving RFQ avoids re-quotes.
By shelf load required
Light loads up to 100 kg per shelf suit 2.0-2.5 mm wire. Heavy and bulk storage up to 500 kg needs 4.0-6.0 mm wire with angle edges or welded frames. Confirm the per-shelf load before choosing wire.
By rack beam spacing
Wire mesh shelf decking spans between beams, so beam centers decide the panel length and wire gauge. Measure beam spacing before ordering; never span a panel beyond its rated distance.
By opening size and item size
Use 25x25 mm openings for small parts and tools, 50-75x50-75 mm for cartons and bins, and 100x150 mm for bulk and pallet storage. The smallest item must never pass through the mesh.
By environment and exposure
Electro galvanized wire mesh shelving suits dry indoor air; hot-dip galvanized handles humidity, garages, and wash-down; PVC-coated adds scuff resistance; stainless serves hygienic duty.
By decking vs. freestanding unit
Choose wire mesh shelf decking if you already have rack beams; choose a freestanding wire mesh shelving unit with uprights if no rack structure exists on site.
By edge style
Plain-edge panels sit flat on beams; angle-edge panels add stiffness and a finished look; anti-slip embossed surfaces keep cartons stable on inclined or vibrating shelves.
By fire and sprinkler requirements
Open wire mesh shelving lets sprinkler water and light reach every level, which is why it is preferred over solid decking in many code-compliant warehouses. Confirm local fire code at RFQ.
By shelf level organization
Add wire mesh shelf dividers, bin boxes, and back panels to separate SKUs on the same shelf and stop items from sliding out of the back of wire mesh shelves.
By matching existing shelving
If extending an existing wire mesh shelving system, confirm the opening size, wire gauge, panel size, edge profile, and finish match the installed panels before ordering additional sections.
By quantity and MOQ
Stock wire mesh shelving panels start from low minimums; custom sizes, stainless routes, and welded frames carry higher minimums. Share the rack layout and quantity for a confirmed schedule.
Why Buyers Choose Wire Mesh Shelving
Wire mesh shelving remains the default shelf surface in warehouses and stockrooms for honest reasons: strength, visibility, and airflow.
Load-rated strength for real weight
Welded wire mesh shelving panels are load-rated per panel and span, carrying up to 500 kg on heavy-duty wire mesh shelving decks without sagging.
Full visibility across every shelf
Open wire mesh shelves let pickers and auditors see every SKU from the aisle, cutting search time and improving stock count accuracy.
Sprinkler and light transmission
Open wire mesh shelving decking lets fire sprinkler water and warehouse light reach every level, supporting code compliance and safer storage.
Ventilation that protects stock
Air moves freely through wire mesh shelves, preventing trapped moisture, mold, and pest nesting that damage goods on solid decking.
Rust resistance that lasts
Hot-dip galvanized and stainless wire mesh shelving survive humid warehouses, garages, cold rooms, and wash-down areas without coating failure.
Custom sizes and edge styles
Wire mesh shelf panels are cut to rack dimensions with plain, angle, or anti-slip embossed edges, plus custom widths and depths for unusual bays.
Quick installation with no tools
Wire mesh shelf decking drops onto rack beams without bolts or welding; freestanding shelving units assemble in minutes, so shelves go live the same day.
Recyclable and durable
Steel wire mesh shelving outlasts wood and plastic shelving, resists impact, and is fully recyclable at end of life.
Export-ready supply
Nested packing, coating certificates, and pre-shipment inspection support container delivery of wire mesh shelving to any destination.
Where Wire Mesh Shelving Is Used
Choose wire mesh shelving when you need strong, visible, and ventilated storage that keeps every shelf level clean, dry, and fire-safe.
Warehouse pick racks
Galvanized wire mesh shelving panels on selective racks keep cartons visible from the aisle, speed picking, and let sprinkler water reach every level.
Retail backroom and display
PVC-coated wire mesh shelving units and shelf panels separate backroom stock from the sales floor while keeping pack quantities visible to restocking staff.
Cold storage and food industry
Stainless steel wire mesh shelving survives wash-down and sub-zero temperatures in cold rooms and food plants without rusting or trapping dust.
Garage and workshop shelving
Hot-dip galvanized wire mesh shelving units hold tools, tires, and equipment in damp garages and workshops where solid shelves would corrode or trap moisture.
Tool and parts storage
Fine-mesh wire mesh shelves keep small parts, dies, and fasteners secure and visible for faster check-out and cycle counting.
Clean room and hygienic storage
Open stainless wire mesh shelves provide full airflow in clean rooms, preventing dust accumulation on stored materials and products.
Wire Mesh Shelving Buying Mistakes to Avoid
Seven errors that cause sagging shelves, small-item loss, or premature corrosion. Every one is avoidable at the RFQ stage.
Choosing wire too thin for the load
A 2.0 mm wire mesh shelf rated for light loads will sag under heavy cartons. Confirm the per-shelf load and span before picking wire diameter.
Wrong opening size for the stored items
A 100x100 mm wire mesh shelf looks strong but lets small parts and tools fall through. Pick the opening from the smallest item that must be contained.
Ignoring rack beam spacing
Wire mesh shelf decking has a maximum span. Ordering a panel longer than the beam spacing wastes cost; over-spanning a panel risks sagging and load failure.
Electro galvanizing in humid areas
Thin zinc plating on wire mesh shelving rusts quickly in unheated warehouses, garages, and cold rooms. Specify hot-dip galvanized or stainless for damp environments.
Skipping edge style for the application
Plain-edge panels move under vibration and heavy loads. Angle-edge, anti-slip, or welded-frame panels add the stiffness and stability that plain edges lack.
Not planning sprinkler and visibility needs
Solid decking blocks sprinkler water and light between levels. If fire code or picking visibility matters, specify open wire mesh shelving decking from the start.
Forgetting shelf accessories
Dividers, bin boxes, and back panels cost little at order time but are hard to match later. Plan the SKU layout and add accessories with the initial wire mesh shelving order.
Check the rack, lay the panels, secure them, and load-test so wire mesh shelving stays flat and safe through years of use.

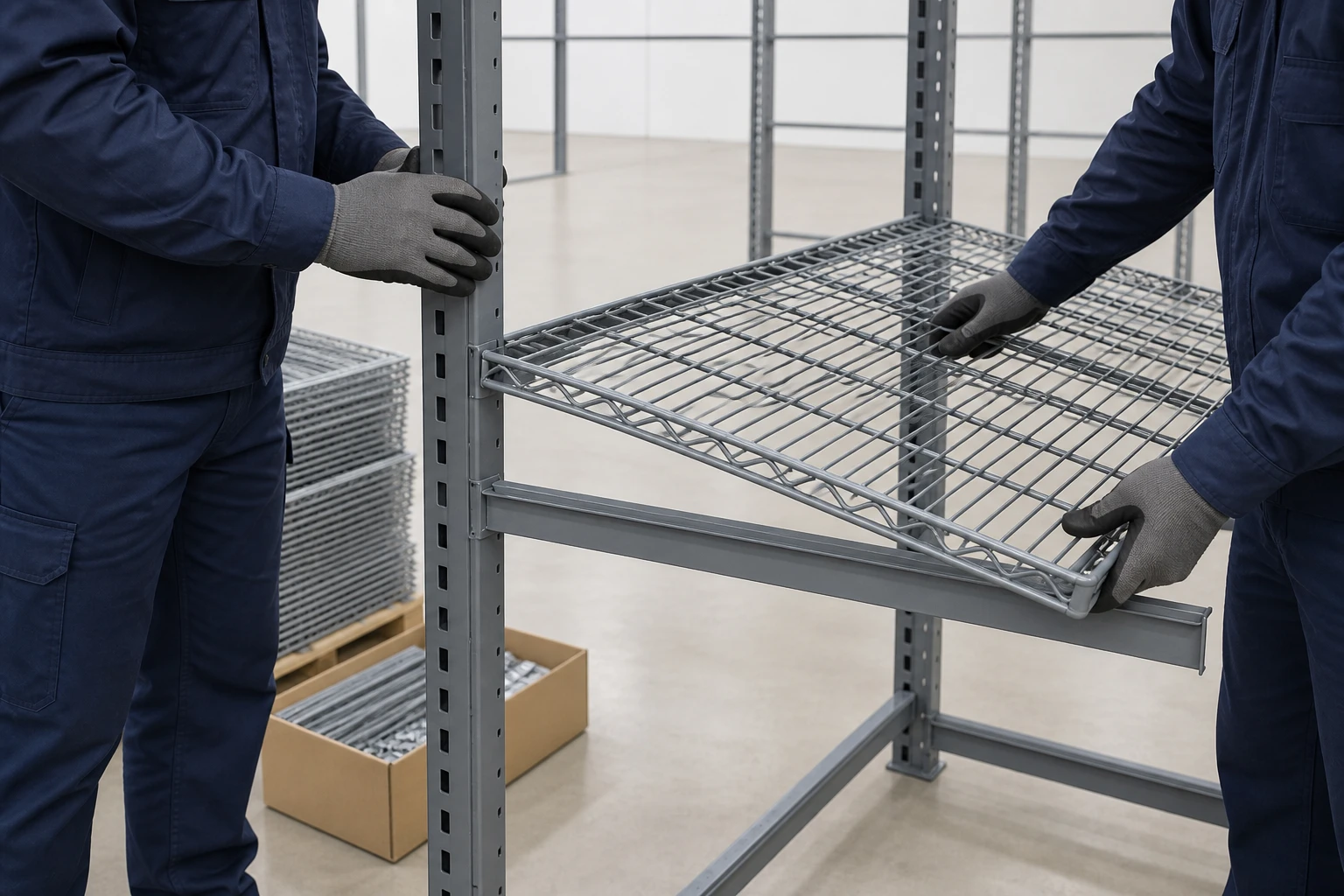

Installing Wire Mesh Shelving
Check the rack and beam spacing
Verify beams are level, parallel, and spaced within the panel rating. Clean the beam surface and confirm the panel length matches the bay so the wire mesh shelf sits evenly on both beams.
Lay the shelf panels
Place each wire mesh shelving panel across the beams with the flat or angle edge seated on the load-bearing surface. For freestanding units, assemble uprights and bolt shelves at the rated level.
Secure and align the shelves
Clip or bolt panels where the rack uses retention hardware, align panels edge to edge, and add dividers, bin boxes, and back panels for the planned SKU layout.
Load-test and inspect
Confirm panels sit flat without rocking, check for gaps, and load-test the first shelf with the rated weight before full stocking. Inspect coating for transit damage and retouch if needed.
Wire Mesh Shelving Packing for Export
Packing keeps panels flat, edges square, and coatings protected through transit and receiving inspection.
Flat-stacked with edge protectors
Wire mesh shelving panels stack flat with edge protectors and separators to keep edges square and coatings intact; nested stacking minimizes container volume, cutting freight cost per panel.
Uprights and hardware bundled
Uprights, beams, bolts, and clips for freestanding wire mesh shelving units bundle in labeled hardware kits per rack, with assembly drawings showing the bolt pattern and load rating.
Palletized for container loading
Panel stacks and hardware packs to the container plan on pallets with corner guards and steel strapping.
Label by rack and level
Every package carries the rack number, shelf level, panel size, opening size, finish, and production lot for easy match to the assembly drawing.
Certificates on request
Material certificates, zinc coating reports, and load test reports accompany wire mesh shelving shipments; SGS, BV, or TUV inspection is available.
Wire Mesh Shelving in Service
Use scenarios show how opening size, finish, and panel size change by duty; they are not customer claims.

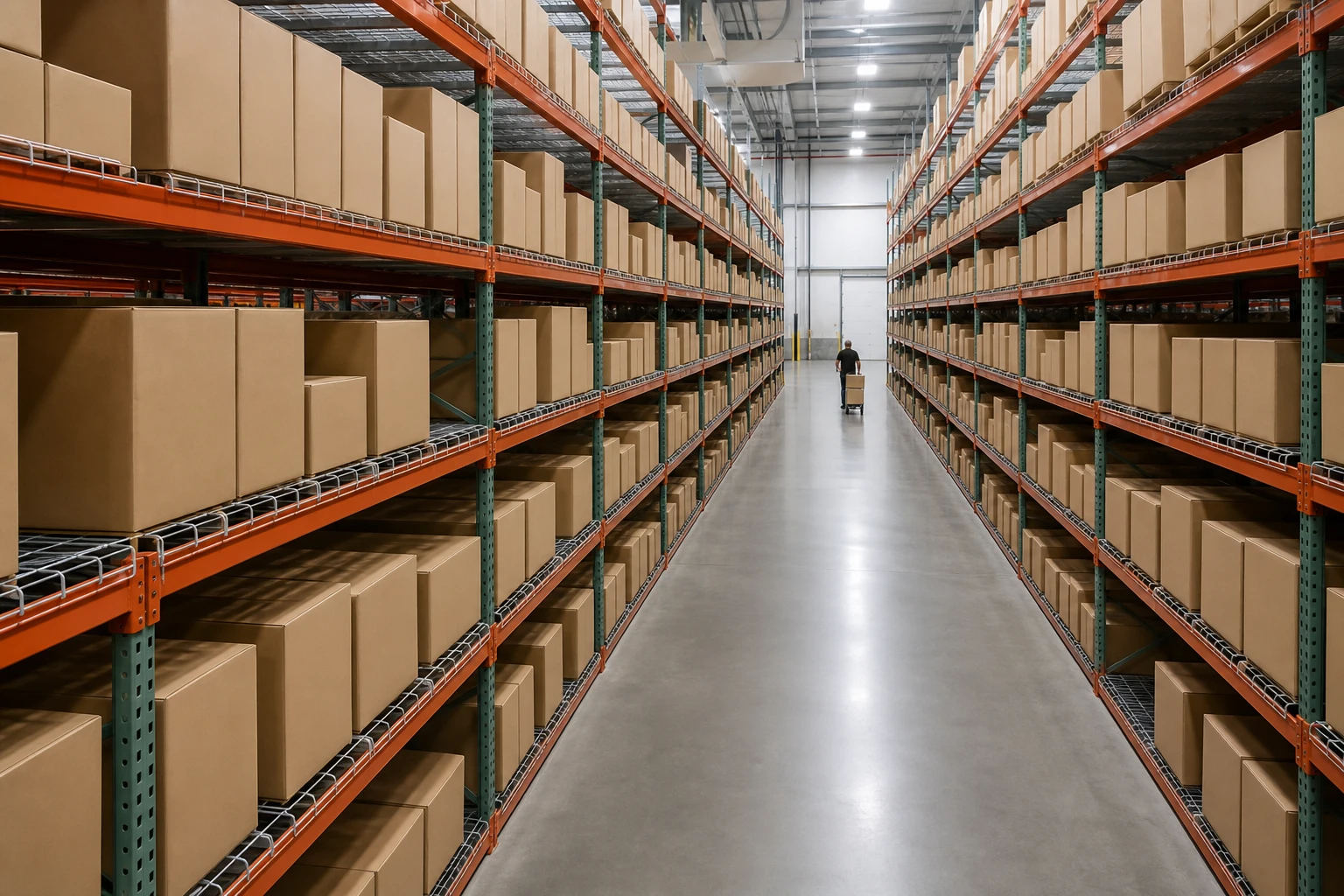

Distribution center pick racks
Electro galvanized wire mesh shelf decking in 1,200 x 500 mm, 50x50 mm opening with 3.0 mm wire, angle edge, installed on selective pallet racks across a 12,000 m² distribution center to support carton picking and sprinkler coverage at every level.

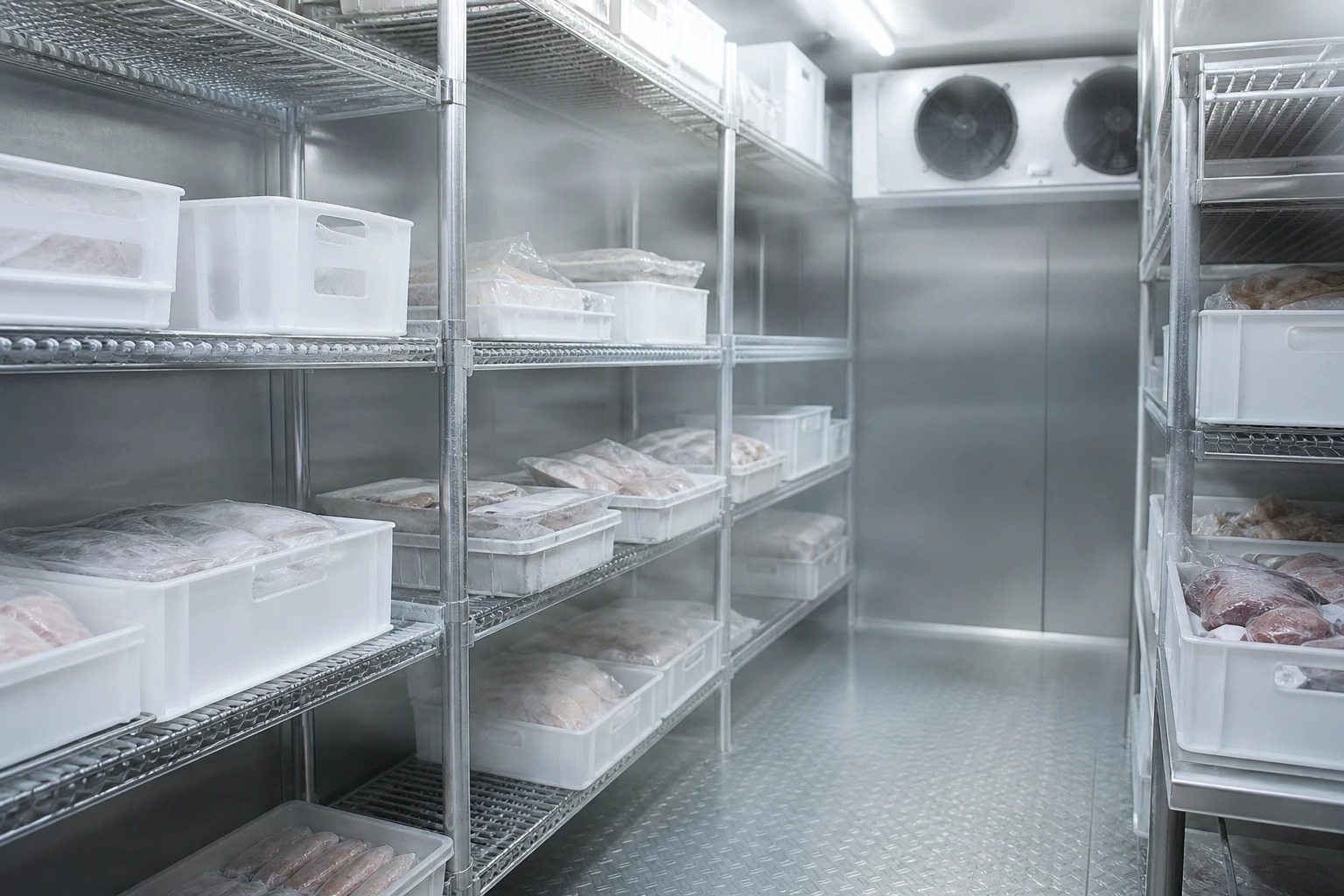

Cold storage shelf retrofit
Stainless steel wire mesh shelving panels in 1,200 x 600 mm, 25x25 mm opening with 2.5 mm wire, replacing corroded particle-board shelves in a -20°C cold room with full ventilation and wash-down resistance.

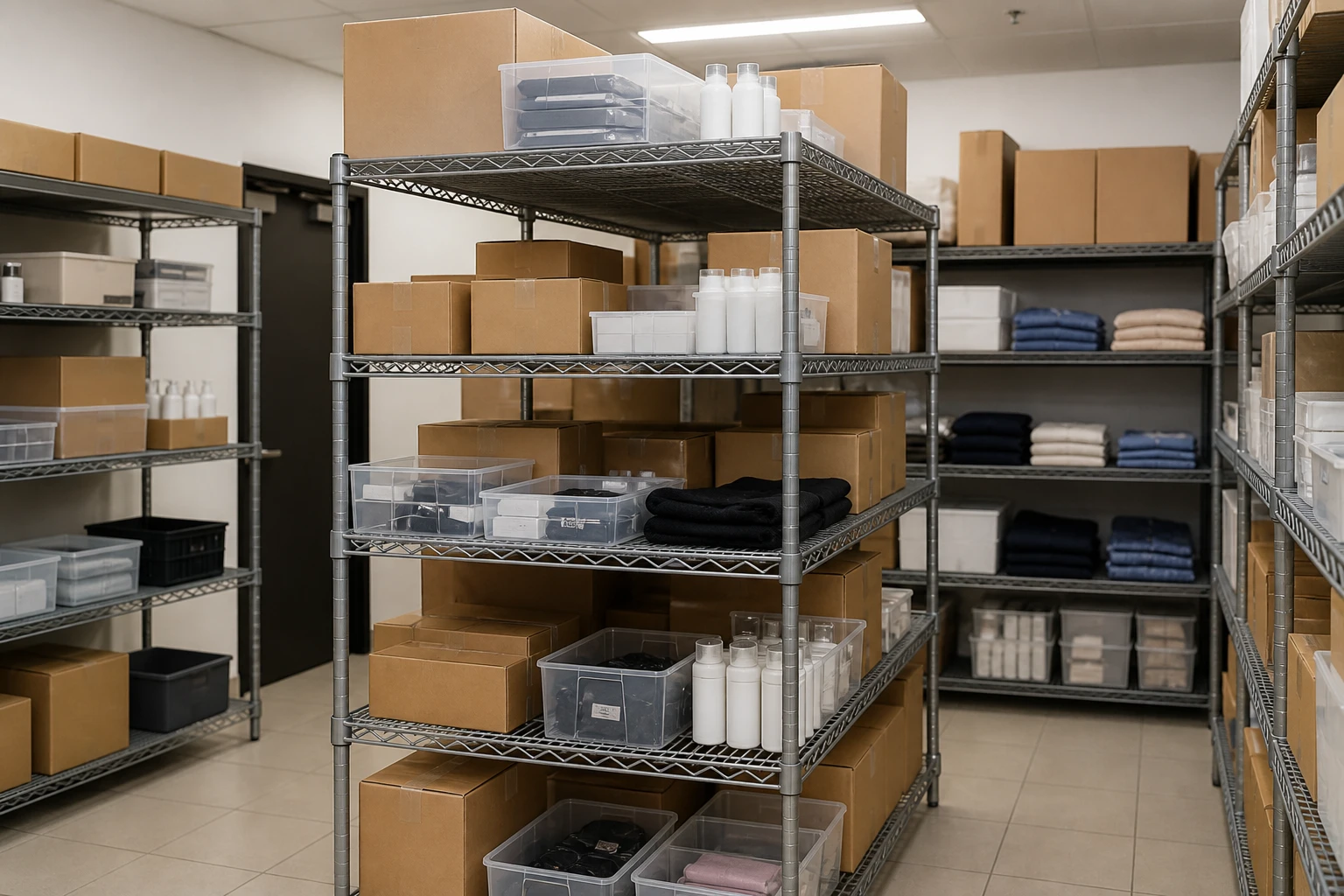

Retail backroom stockroom
PVC-coated wire mesh shelving units in 900 x 400 mm, 25x25 mm opening, four-level freestanding units separating inbound and outbound stock while keeping pack quantities visible to restocking staff.

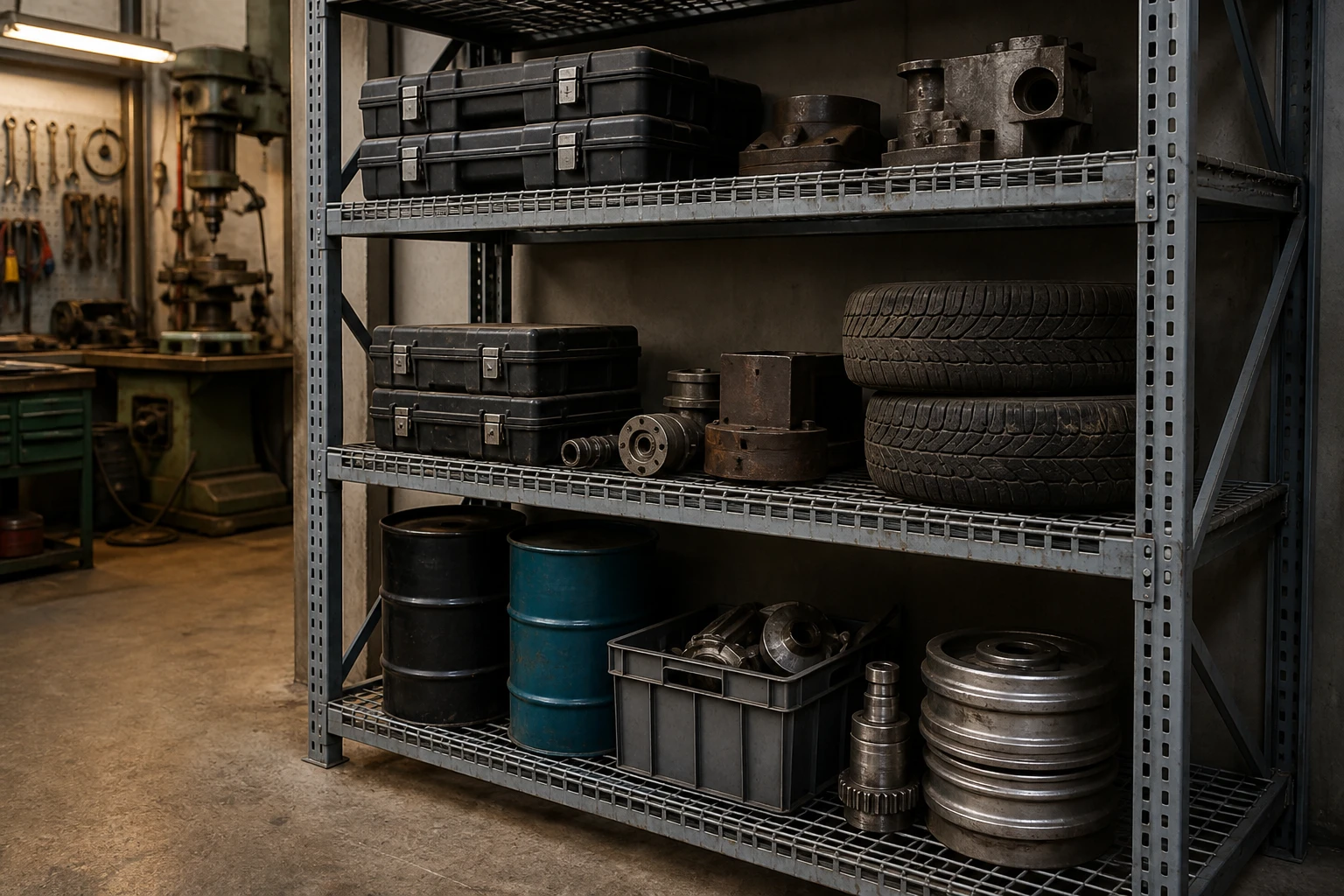

Heavy-duty workshop storage
Hot-dip galvanized wire mesh shelving panels in 1,500 x 600 mm, 100x100 mm opening with 5.0 mm wire, welded frame, on steel racks holding dies, molds, and tooling up to 300 kg per shelf in a metal fabrication workshop.
Wire Mesh Shelving Sourcing Resources
Compare welded mesh products, finishes, and related solutions. Confirm dimensions, load, and coating requirements before ordering.
Last updated: 2026-08-12
Related pages
Reference standards
Wire Mesh Shelving FAQ
Common procurement questions about loads, openings, finishes, and ordering wire mesh shelving.
Still have questions about wire mesh shelving?
Send your opening size, wire diameter, panel dimensions, edge style, finish, required shelf load, rack beam spacing, quantity, and destination. Our sourcing team replies with a specification-led review.
Request a QuoteRequest Wire Mesh Shelving Pricing
Send opening size, wire diameter, shelf panel dimensions, edge style, material and finish, required per-shelf load, rack beam spacing, quantity, and destination for a specification-led sourcing review. Our team replies with matched wire mesh shelving panels, decking, and freestanding units and a factory quote for your warehouse, retail, or cold storage project.
Your details stay private. We reply with a matched factory quote — no spam.
