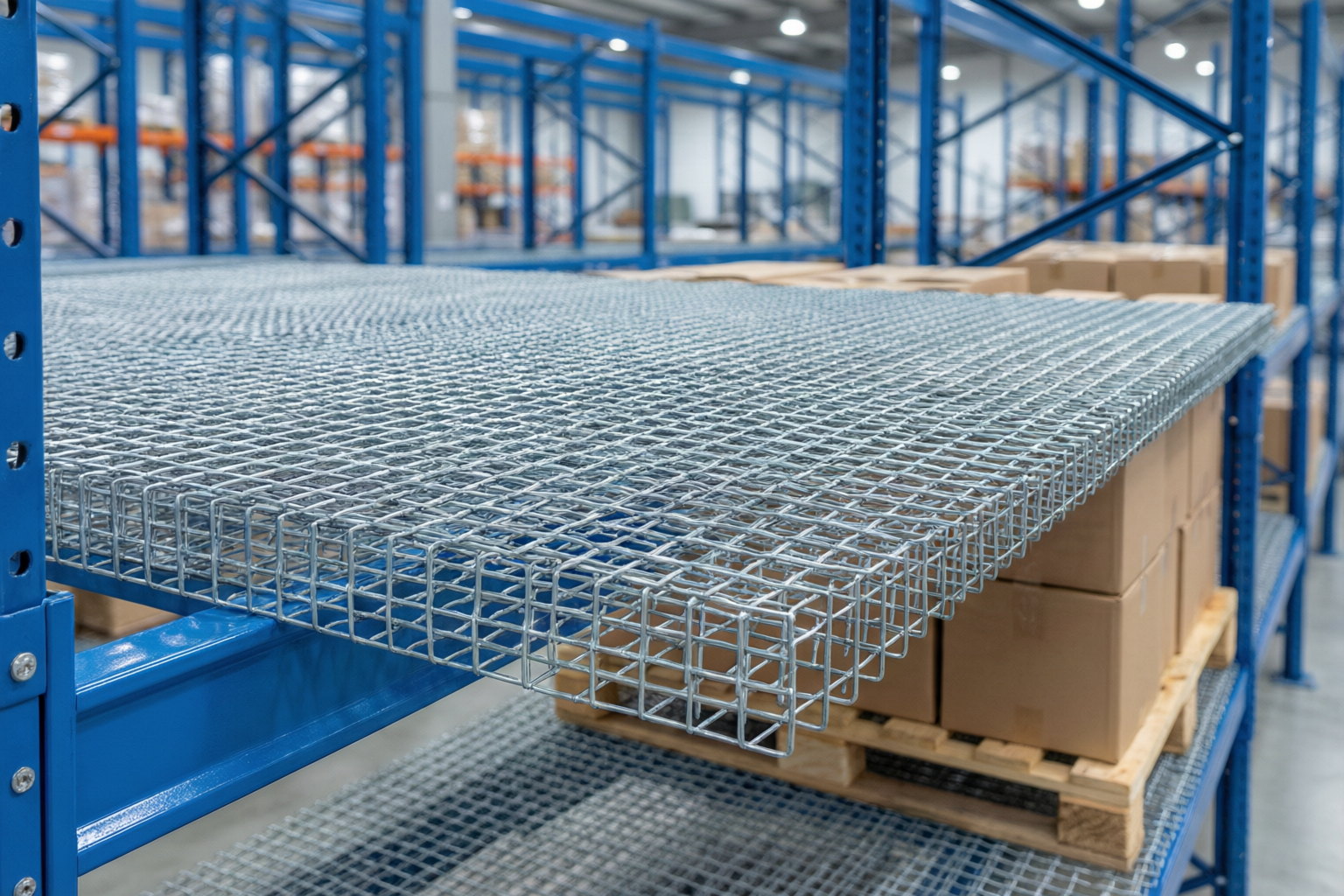

Wire Mesh Decking for Pallet Racking | Factory Quote
Stop falling loads and sprinkler failures with galvanized wire mesh decking for pallet racking: standard 42-48 in sizes, U-channel supports, 500-1,500 kg.
Wire Mesh Decking Specifications
Pallet rack wire decking is defined by five variables: mesh opening, wire diameter, channel layout, edge style, and finish. State all five in every RFQ so the deck matches your rack, load, and fire code the first time.
Square openings from 25x25 mm to 100x100 mm, plus 50x100 mm grids aligned to the channels so cartons sit on a wire mesh deck without sagging or falling through
2.5-5.0 mm low-carbon steel wire, sized to the intended uniformly distributed load; heavier wire adds capacity without changing footprint
2-4 U-channel supports per wire mesh deck, in flat, hat, or flared profile, welded across the width to transfer load to the rack beams
Waterfall edges bend down 25-38 mm over the front and rear beams; flush or inside-edge styles available for beam-and-beam racks
Electro galvanized for dry warehouses, hot-dip galvanized for humid or cold stores, and powder-coated wire mesh decking in gray or safety colors
Galvanized wire per ASTM A641, coating per ISO 1461, and rack design guidance per ANSI MH16.1 and RMI guidelines
| Mesh opening | Wire diameter | Typical load per deck | Best for and RFQ note | |
|---|---|---|---|---|
| 25x50 mm | 2.5-3.0 mm | Light, up to 500 kg | Small cartons and totes where items must not fall through. State deck length, width, and UDL in the RFQ. | |
| 50x50 mm | 3.0-3.5 mm | Medium, up to 800 kg | General pallet rack wire decking for mixed carton storage. The most common opening for rack decking. | |
| 50x100 mm | 3.5-4.0 mm | Medium-heavy, up to 1,000 kg | Pallets with stable loads and high airflow needs. Confirm load orientation across the channels. | |
| 75x75 mm | 4.0 mm | Heavy, up to 1,200 kg | Heavy cartons and oversize loads on industrial racking. Add a third channel at 48 in depth. | |
| 100x100 mm | 4.0-5.0 mm | Extra heavy, up to 1,500 kg | Bulk and structural duty with flared U-channel supports. Confirm beam spacing in the RFQ. |
Common Wire Mesh Decking Sizes for Pallet Racking
Standard pallet rack wire decking widths follow beam lengths; 46 in is the most common. Custom sizes and cutouts for sprinklers and columns are available at MOQ; confirm tolerance and finish at RFQ.
| Deck depth | Deck width | Opening (mm) | Channels | Typical UDL | |
|---|---|---|---|---|---|
| 42 in | 46 in | 50x50 | 2 | 600 kg | |
| 44 in | 46 in | 50x100 | 2 | 700 kg | |
| 46 in | 46 in | 50x50 | 3 | 800 kg | |
| 48 in | 46 in | 50x100 | 3 | 1,000 kg | |
| 48 in | 48 in | 75x75 | 3 | 1,200 kg | |
| 60 in | 48 in | 100x100 | 4 | 1,500 kg |
Choosing the Finish for Wire Mesh Decking
Finish decides rust resistance, appearance, and price. Match the coating to the warehouse environment before ordering wire mesh decking.
| Finish | Coating | Environment fit | Typical duty | |
|---|---|---|---|---|
| Electro galvanized | Zinc plating, 5-10 micron | Dry, indoor warehouses | Low-cost wire mesh decking where the air is dry | |
| Hot-dip galvanized | Zinc, 40-85 micron | Humid, cold, and wash-down stores | Cold rooms and coastal warehouses | |
| Powder coated | Polyester powder over zinc | Indoor display and retail | Gray or safety-orange mesh deck panels | |
| Stainless steel | Alloy, no coating | Hygienic and food contact | Food plants and pharmaceutical stores |
U-Channel Supports for Wire Mesh Decking
The channel profile is the backbone of a wire mesh deck. Pick the profile from the intended load and beam span before quoting.
| Channel profile | Shape | Typical load | Best for | |
|---|---|---|---|---|
| Flat channel | Flat strip welded under mesh | 500-800 kg | Light duty and retrofit decks | |
| Hat channel | Hat-shaped support under mesh | 800-1,200 kg | Standard pallet rack wire decking | |
| Flared channel | Flared lip bearing on beams | 1,000-1,500 kg | Heavy duty wire mesh decking and wide spans |
Wire Mesh Decking vs. Plywood Decking
Compare rack deck options by load, fire behavior, visibility, and cost. Wire mesh decking wins where sprinkler clearance, airflow, and stock visibility matter.
| Option | Load and durability | Fire and sprinkler | Visibility and hygiene | Relative cost | |
|---|---|---|---|---|---|
| Plywood decking | Strong but absorbs moisture, splinters, and rots over time | Blocks sprinkler water and adds combustible mass | Hides stock and traps dust | Low upfront, frequent replacement | |
| Solid steel deck | Very strong but heavy to handle | Sprinkler-compatible only with perforations | Poor visibility and heavy freight | High material and freight cost | |
| Wire mesh decking | High load per weight with welded U-channel supports | Open area above 50% lets sprinkler water through | Full visibility, airflow, and wash-down friendly | Medium cost, low freight from nested packing |
Opening Size, Open Area & Sprinkler Compatibility
Open area drives ESFR effectiveness and local fire-code compliance: guidance generally expects at least 50% open area per storage level, otherwise in-rack sprinklers are required. Values are typical estimates for wire mesh decking; confirm the exact open area for your wire gauge during the RFQ.
| Opening (mm) | Wire (mm) | Open area (%) | ESFR-friendly | Best for | |
|---|---|---|---|---|---|
| 25x50 | 2.5 | 78 | Yes - confirm local code | Small parts, sprinkler edge cases | |
| 50x50 | 3.0 | 85 | Yes | General shelving levels | |
| 50x100 | 3.5 | 88 | Yes | Standard pallet decking | |
| 75x75 | 4.0 | 89 | Yes | Heavy-duty loads | |
| 100x100 | 4.0 | 92 | Yes | Heavy loads, maximum sprinkler penetration |
Wire Mesh Decking by Rack Type
Every rack system imposes different demands on deck size, edge style, and channel count. Push-back racks are not compatible with wire mesh decking because their carts must travel freely on the rails.
| Rack type | Recommended deck | Edge style | Note | |
|---|---|---|---|---|
| Selective rack | 42-48 x 46 in, 2-3 channels | Waterfall edge | Most common application; standard stock sizes | |
| Double-deep rack | Two decks back-to-back | Waterfall at aisle side, inside edge at rear | Match deck depth to pallet reach | |
| Drive-in rack | Deck on rail beams, confirm clearance | Waterfall or inside edge | Verify forklift entry clearance and channel support | |
| Cantilever rack | Custom cut to arm span | Inside edge | Long-material storage between arms | |
| Mezzanine edge | Flush or inside edge | Inside edge | Prevents tripping and snagging at walkways |
Wire Mesh Decking Types We Source
Four construction routes cover almost every racking duty. Compare channel profile, edge style, and finish before you specify wire mesh decking.
Standard U-channel wire mesh decking
The workhorse pallet rack wire decking: a welded mesh panel with 2-3 U-channel supports and waterfall edges, cut to beam spans from 42 in to 60 in.
Flared-channel heavy duty decking
Heavy duty wire mesh decking with flared U-channels that bear directly on beam flanges, for wide spans and 1,000+ kg loads.
Flush and inside-edge decking
Wire mesh deck panels with edges inside the beams for beam-and-beam racks, aisles, and mezzanine edges where a waterfall edge would catch.
Powder-coated mesh decking
Gray or safety-colored powder-coated wire mesh decking for retail backrooms, tool cribs, and areas where appearance matters.
How to Select the Right Wire Mesh Decking
Start from the beam span and the load, then fix opening size, wire diameter, channel profile, edge style, and finish. A complete wire mesh decking RFQ avoids re-quotes and keeps loads from falling.
By rack beam span
Measure the clear distance between beam flanges. Wire mesh decking should overlap each beam by 25-38 mm with a waterfall edge.
By pallet and carton size
Choose the opening so the smallest stored item cannot fall through. 50x50 mm suits most cartons; 100x100 mm only for large, stable loads.
By load per level
State the worst-case uniformly distributed load, not the average, and pick the wire diameter and channel count from the load table.
By fire code and sprinklers
Keep open area above 50% for ESFR sprinkler penetration; fine mesh below 50% may need additional suppression. State the sprinkler type in the RFQ.
Channel count and profile
Two channels carry light decks; three or four with a flared profile carry heavy loads on wide spans.
Indoor, cold, or outdoor
Electro galvanized wire mesh decking suits dry indoor air; hot-dip galvanized handles cold stores and humidity; powder coat adds color.
Waterfall or inside edge
Waterfall edges hook over beams and stop the deck from sliding; inside edges suit beam-and-beam configurations.
Cutouts and special shapes
Sprinkler heads, columns, and mezzanine edges need cutouts and partial panels. Send the rack drawing for a fit review.
Gauge consistency and tolerance
Confirm wire diameter, opening tolerance, and coating on a sample before mass production so bulk wire mesh decking matches.
MOQ and lead time
Stock 42-48 in decks start from low minimums and often ship in 7-15 days; custom widths, cutouts, and stainless routes carry higher minimums.
Packing and freight
Nested mesh deck panels pack flat to cut container volume; confirm the packing plan with the destination before dispatch.
Why Buyers Choose Wire Mesh Decking
Wire mesh decking remains the default pallet rack deck material in warehouses for honest reasons: falling-load protection, strength, and visibility.
Falling-load protection
A wire mesh deck catches boxes, bottles, and parts that would otherwise drop between beams onto workers below the rack.
Strength without weight
Welded wire mesh decking carries 500-1,500 kg while staying light enough for one person to handle and fit.
Sprinkler-friendly open area
Open mesh above 50% open area lets water reach lower levels and keeps insurance and fire inspections simple.
Full stock visibility
Inventory levels are readable from the aisle, cutting cycle count time and helping pickers find stock faster.
Airflow and hygiene
Open decks circulate air in cold stores and wash down fast in food facilities, with no surface for dust to collect.
Easy retrofit
Wire mesh decking drops onto existing beams without drilling, welding, or rack modification, and relocates just as easily.
Rust resistance by finish
Hot-dip galvanized and stainless wire mesh decking outlive electro-galvanized decks in damp and cold environments.
Cut to fit
Custom widths, cutouts, and partial decks match columns, sprinklers, and odd spans in existing rack layouts.
Export-ready supply
Nested flat packing, coating certificates, and load test reports support container delivery of wire mesh decking worldwide.
Where Wire Mesh Decking Is Used
Choose wire mesh decking when you need falling-load protection, sprinkler clearance, and visible stock across pallet racks.
Selective pallet racking
Galvanized wire mesh decking converts open beams into drop-in shelves that catch falling cartons and protect workers below the rack.
Cold storage and freezers
Hot-dip galvanized or stainless wire mesh decking survives low temperature, frost, and wash-down without coating failure.
Distribution centers
Mesh deck panels keep mixed cartons stable across beam spans while keeping stock visible from the aisle for faster picking.
Retail and e-commerce backrooms
Powder-coated wire mesh decking gives backroom shelving a clean finish and prevents small items from falling between beams.
Bulk and heavy-duty racks
Heavy duty wire mesh decking with flared U-channels carries pallets and bulk loads on wide spans without sagging.
ESFR and sprinkler-protected sites
Open mesh above 50% open area lets ceiling sprinklers wet lower levels, supporting fire code compliance without extra suppression.
Wire Mesh Decking Buying Mistakes to Avoid
Seven errors that cause sagging decks, failed inspections, or fit problems. Every one is avoidable at the RFQ stage.
Underestimating the real load
Wire mesh decking rated 800 kg still fails if the pallet sits as a point load on one channel. State the worst-case UDL and pallet position.
Choosing the wrong channel profile
Flat channels under heavy decks allow the mesh to dish between beams; flared channels add edge bearing for heavy duty wire mesh decking.
Fine mesh in sprinkler-protected racks
Openings below 50% open area can block sprinkler water and fail fire inspection. Check the open area before ordering.
Ignoring edge overlap
A deck 20 mm too narrow drops between beams; one too wide jams and bends the waterfall edge. Measure the beam flanges first.
Electro galvanizing in cold stores
Thin zinc plating fails under frost and wash-down cycles. Cold storage wire mesh decking needs hot-dip galvanized or stainless steel.
Not confirming wire gauge
Two decks that look identical can differ by a millimeter of wire, and that is the entire load story. Confirm the gauge in writing.
Skipping the load certificate
Require a load test report or UDL certificate for structural wire mesh decking before accepting shipment.
Measure, seat, check, and load wire mesh decking correctly to protect loads and pass inspection.

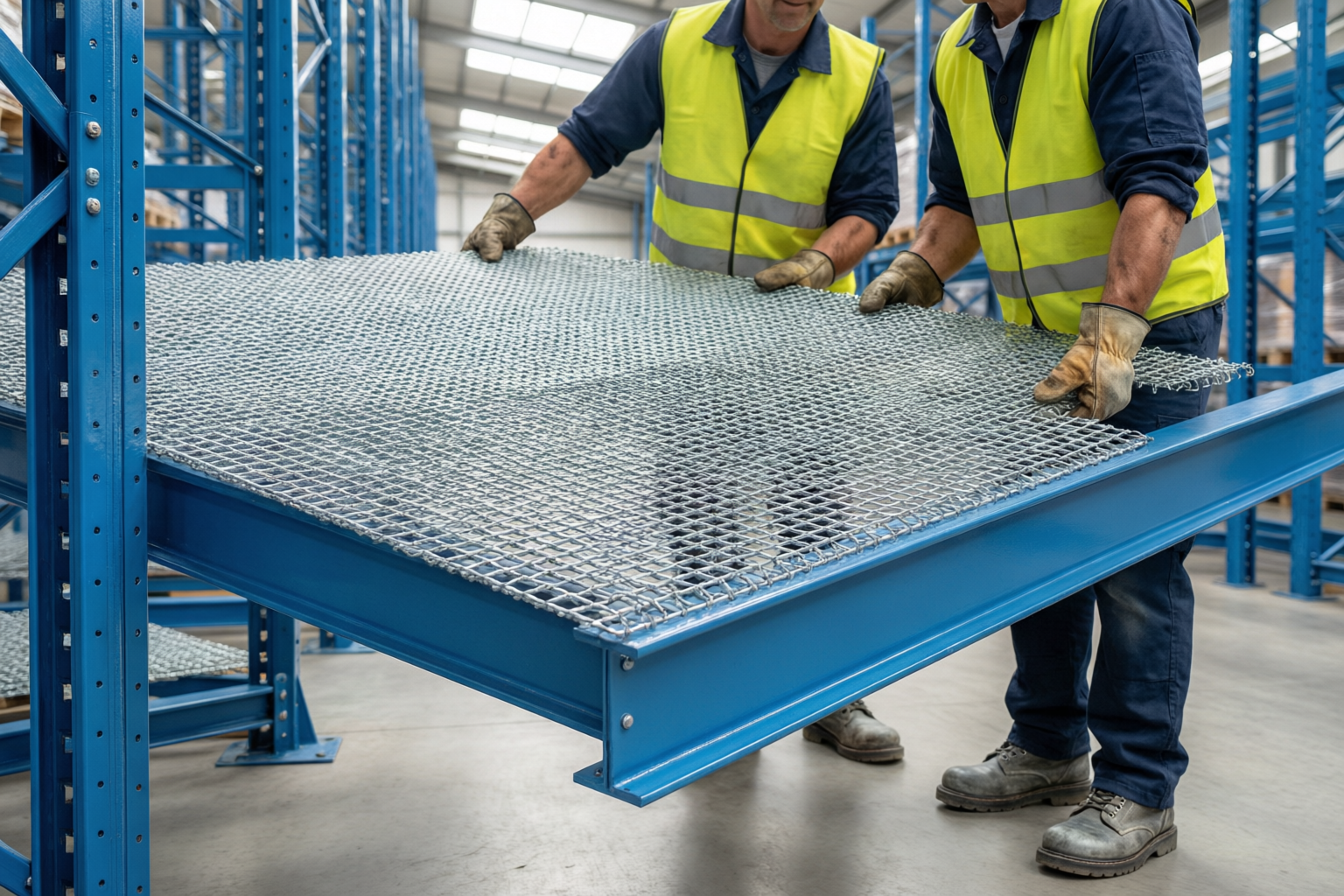

Installing Wire Mesh Decking
Measure the beam span
Measure the clear distance between beam flanges and confirm the deck overlaps each beam by 25-38 mm in both directions.
Seat the deck
Drop the wire mesh decking onto the beams so the waterfall edges hook over the flanges; slide inside-edge decks between the beams.
Check level and lock
Confirm the deck sits level, the channels bear on both beams, and the deck cannot slide; clip or tie decks where racks move.
Load evenly
Center pallets across the channels and keep point loads off unsupported spans; recheck sag and welds after the first heavy load.
Wire Mesh Decking Packing for Export
Packing keeps decks flat, waterfall edges intact, and coatings protected through transit and receiving inspection.
Flat-stacked with separators
Mesh deck panels stack flat with separators and edge guards so waterfall edges and coatings survive transit; flat and nested stacking cuts container volume and freight cost per deck.
Palletized and strapped
Stacks pack to the container plan on pallets with corner guards and steel strapping.
Protected from moisture
Waterproof wrapping and desiccant protect galvanized wire mesh decking from condensation during ocean transit.
Label by specification
Each package carries opening size, wire diameter, dimensions, finish, quantity, and production lot.
Certificates on request
Material certificates, coating reports, and load test reports accompany wire mesh decking shipments; SGS, BV, or TUV inspection is available.
Wire Mesh Decking in Service
Use scenarios show how opening size, finish, and channel profile change by duty; they are not customer claims.

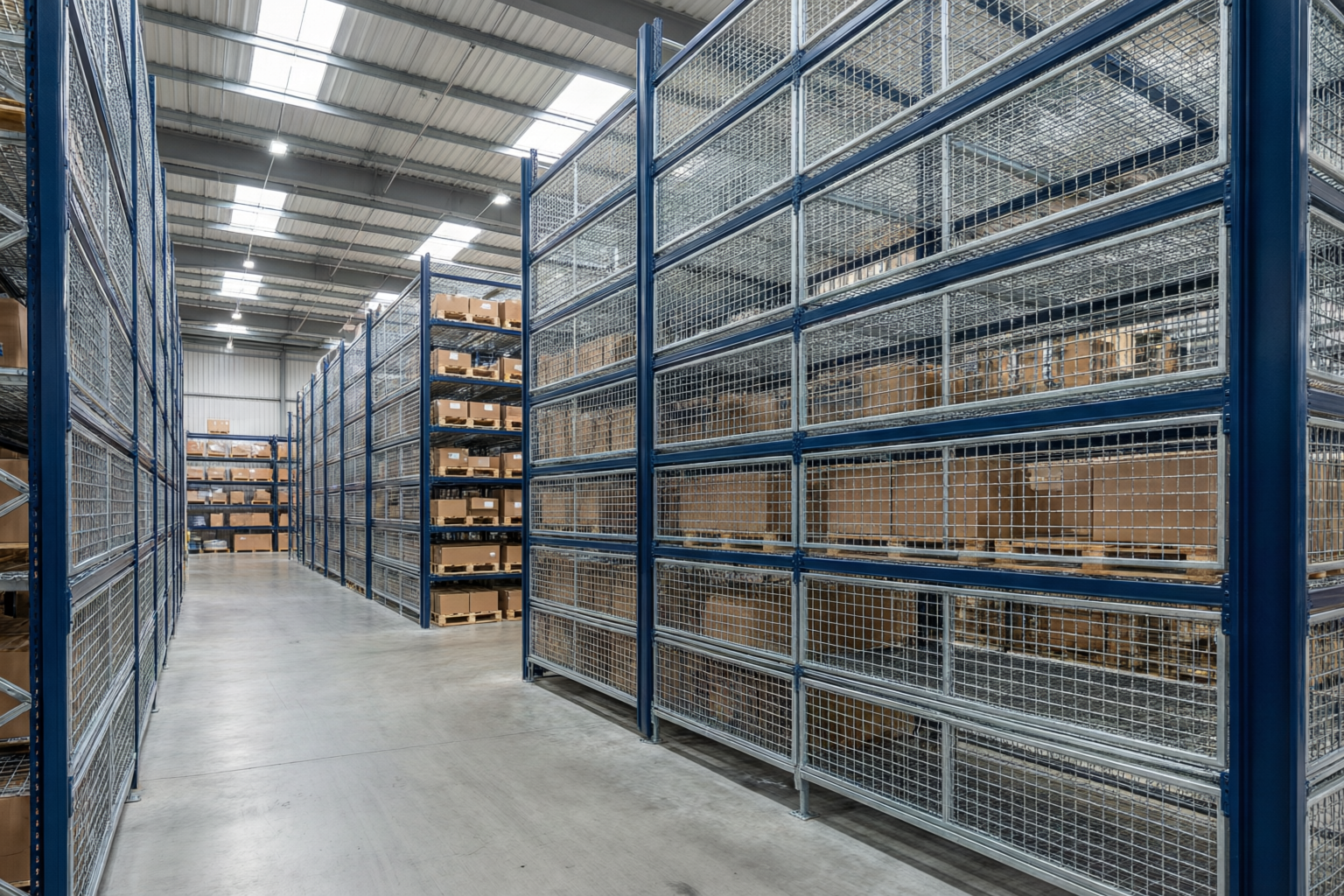

Distribution center carton storage
Hot-dip galvanized wire mesh decking in 44 x 46 in decks, 50x100 mm opening with 3.5 mm wire carrying 700 kg per level, converting three-level selective racks for mixed cartons with full aisle visibility.

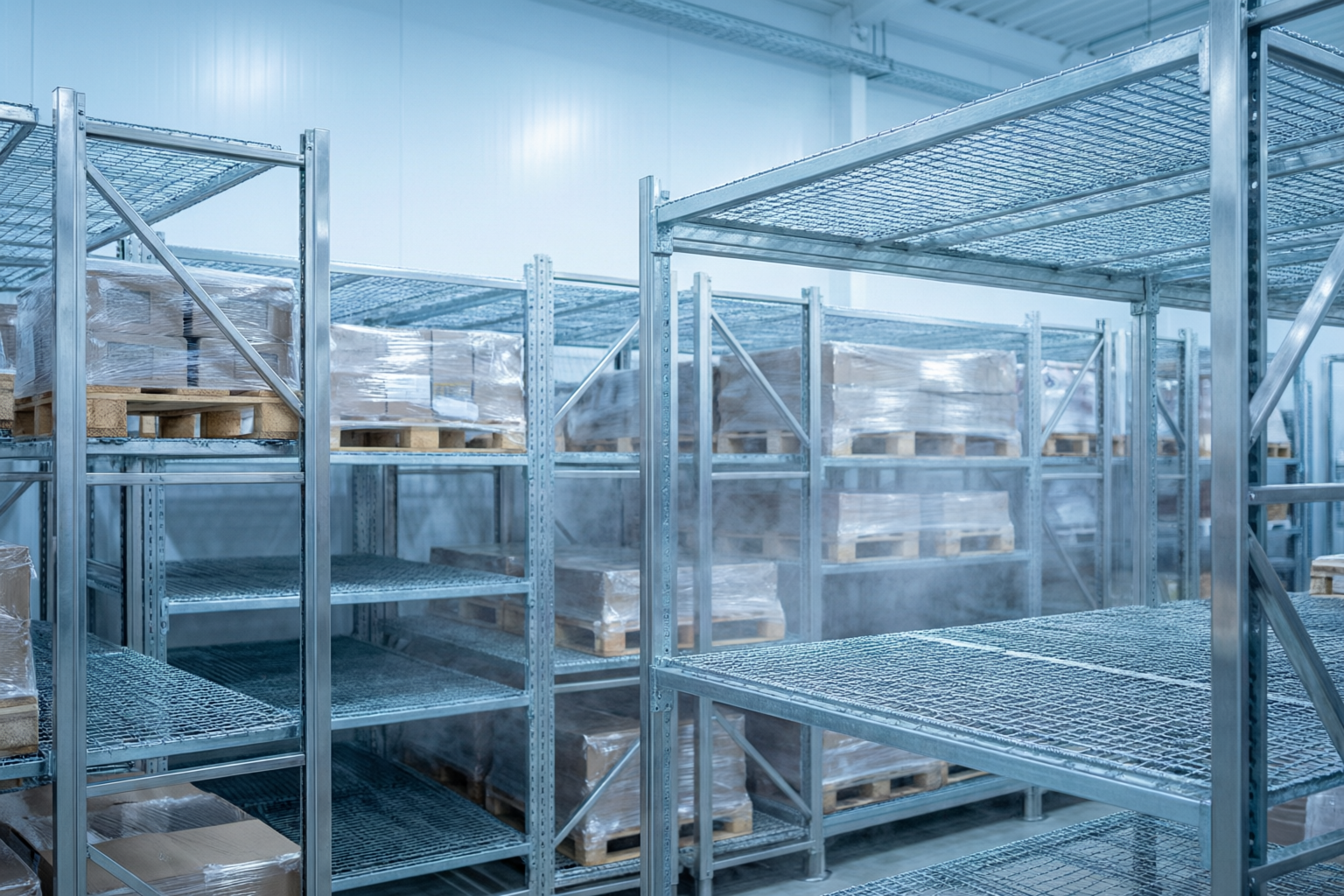

Cold store pallet racks
Stainless wire mesh decking in 48 x 46 in decks, 50x50 mm opening with 4.0 mm wire carrying 1,000 kg in a -25°C freezer, surviving frost and wash-down cycles.

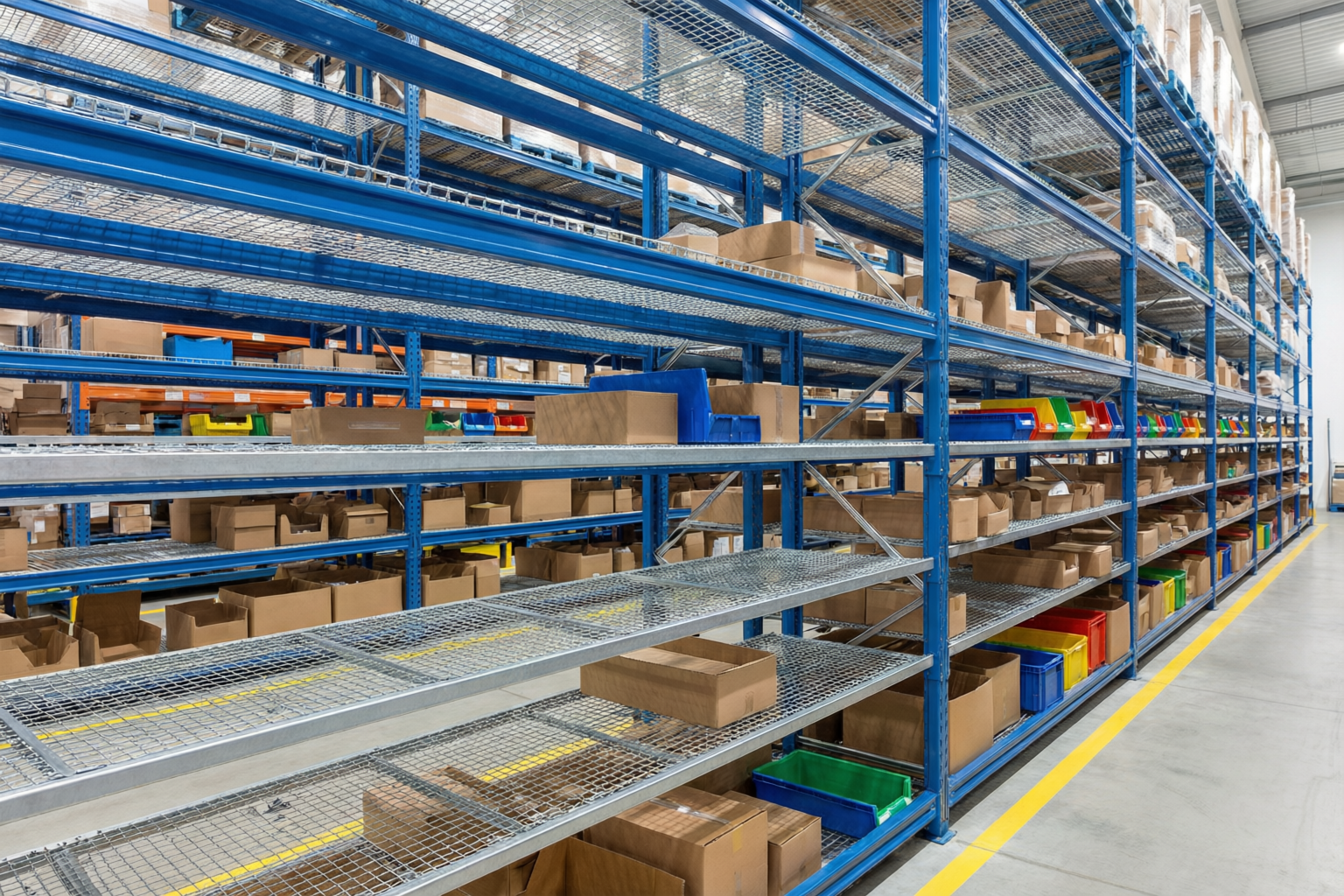

ESFR-protected bulk warehouse
Galvanized wire mesh decking in 48 x 48 in decks, 100x100 mm opening with 4.0 mm wire at 1,200 kg, maintaining 60% open area for ceiling sprinkler penetration.

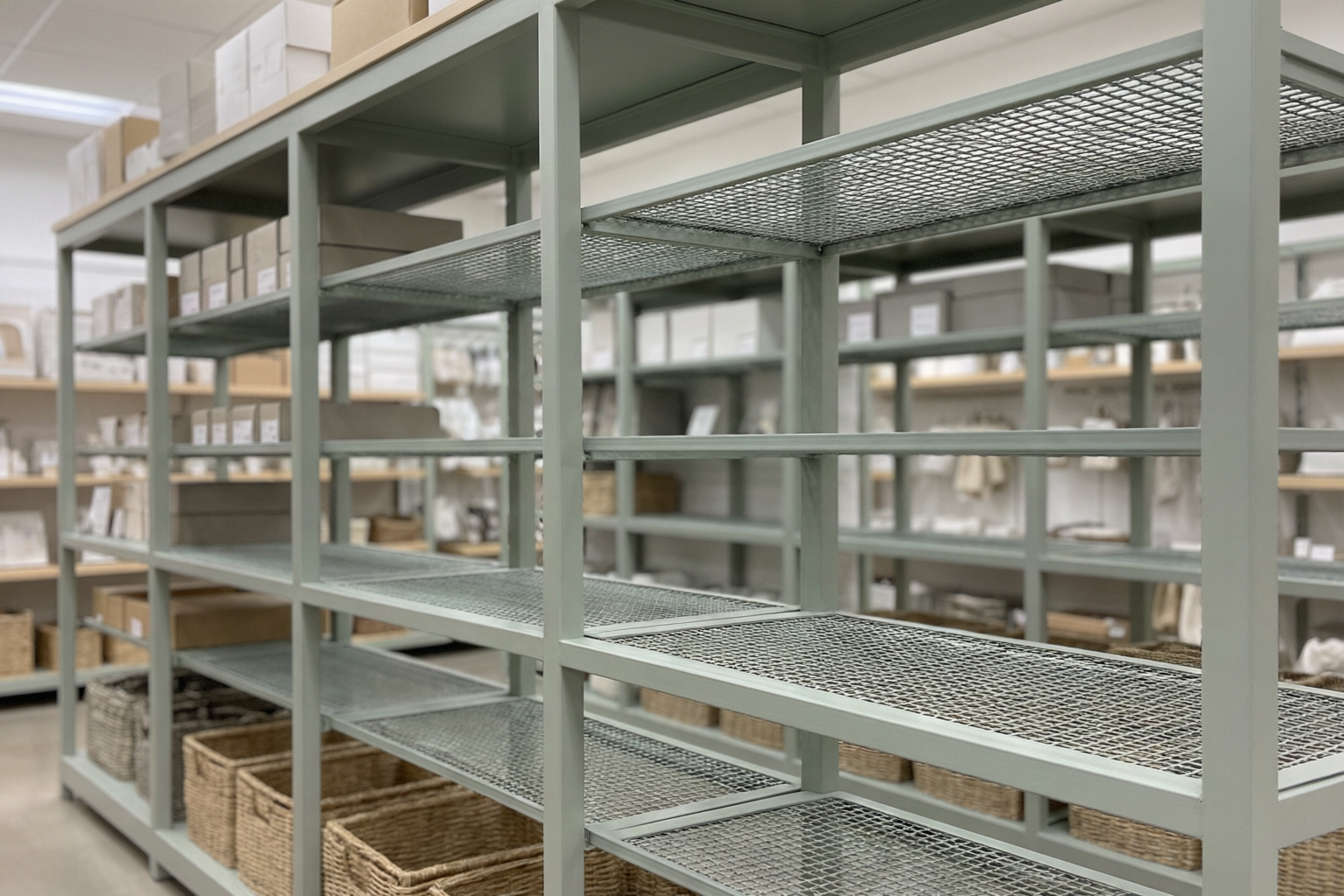

Retail backroom shelving
Powder-coated wire mesh decking in 42 x 46 in gray decks, 50x50 mm opening with 3.0 mm wire carrying 600 kg, giving a retail backroom clean, color-matched shelving.
Wire Mesh Decking Sourcing Resources
Compare welded mesh products, racking standards, and related storage solutions. Confirm dimensions and coating requirements before ordering.
