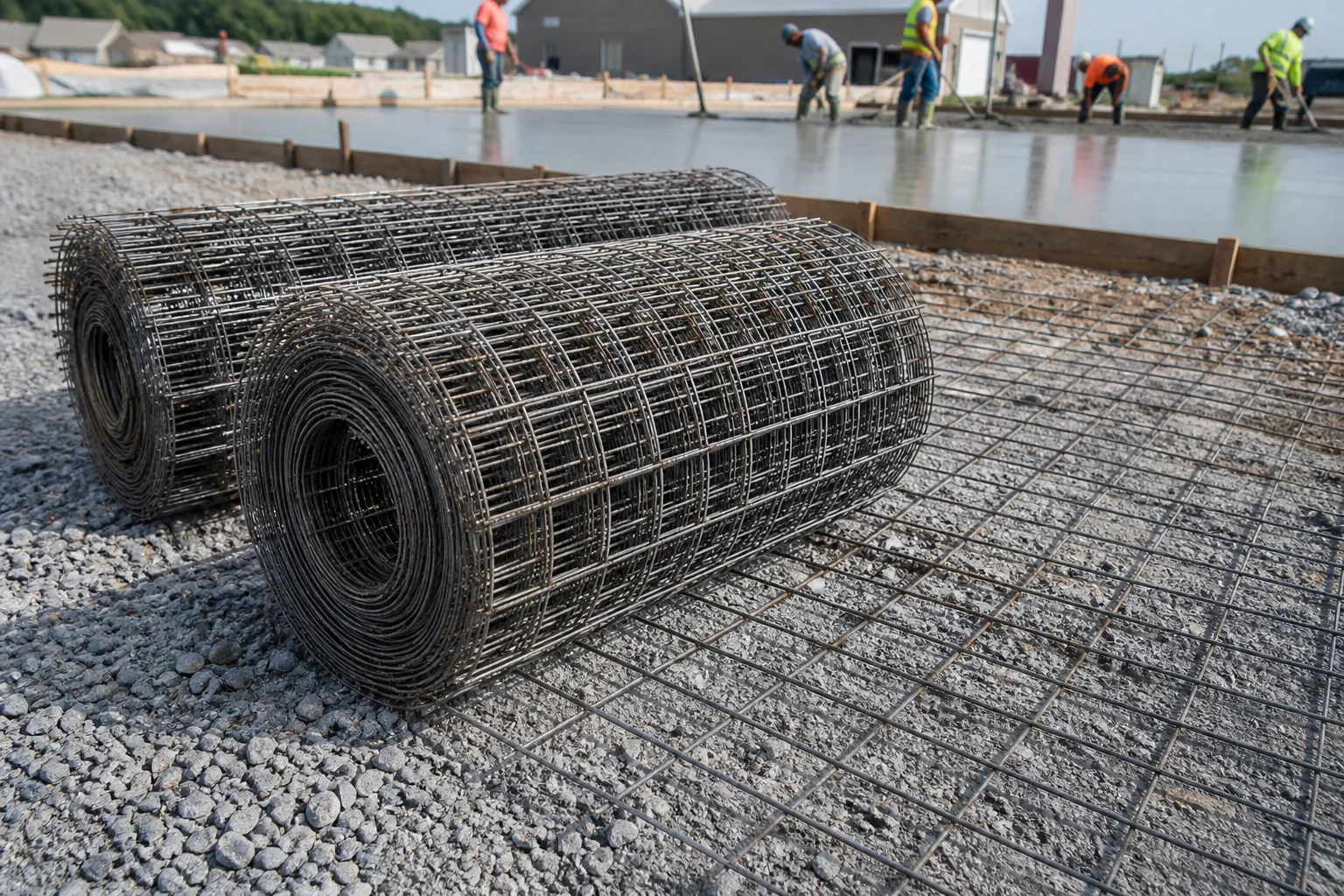

Concrete Wire Mesh Rolls for Slabs, Driveways & Patches
Stop random slab cracks and cut rebar labor with concrete wire mesh rolls — 6 x 6 in and 4 x 4 in openings, 10 to 6 gauge, black or galvanized. Widths, lengths, and packing confirmed before your RFQ.
Concrete Wire Mesh Rolls Key Specifications
Confirm opening, wire gauge, roll width, roll length, and finish for concrete wire mesh rolls before sending an RFQ.
6 x 6 in, 4 x 4 in, 100 x 100 mm, 150 x 150 mm
10 gauge (W1.4) up to 6 gauge (W2.9) and heavier
4 ft, 5 ft, 6 ft, 2 m, custom cut to strip
150 ft, 200 ft, or by weight (square meter / ton)
Black steel or galvanized welded wire reinforcement
ASTM A1064/A1064M by project request
| Spec item | Common options | Best for | RFQ note | |
|---|---|---|---|---|
| Mesh opening | 6 x 6 in, 4 x 4 in, 100 x 100 mm, 150 x 150 mm | Slabs, driveways, sidewalks, narrow strips | State opening and tolerance from the drawing. | |
| Wire gauge / W-number | W1.4 x W1.4 (10 ga) to W2.9 x W2.9 (6 ga) | Light flatwork to heavy industrial floors | Send gauge, diameter, or WWR style designation. | |
| Roll width and length | 4 ft, 5 ft, 6 ft widths; 150-200 ft lengths or by weight | Strips, small slabs, and patch pours | Confirm width, length, and square meters or tons. | |
| Material and finish | Black steel, galvanized before or after welding | Interior slabs or moisture-exposed concrete | State finish and corrosion requirement. |
Where Concrete Wire Mesh Rolls Are Used
Concrete wire mesh rolls reinforce flatwork and narrow pours where rolls unroll, cut, and place faster than sheet stock.
Concrete slabs
Rolled mesh for residential and light-commercial slab crack control on grade.
Driveways
6 x 6 in wire mesh rolls for garage slabs and vehicle flatwork.
Sidewalks and pavement patches
Light-gauge rolls that unroll and trim quickly on repair work.
Foundations and footings
Cut-to-length rolled reinforcement matched to strip footings.
Industrial floors
Heavy WWR rolls for warehouse and factory slabs.
Narrow strips and tie beams
Rolled mesh cut to width for curbs, gutters, and thin elements.
Concrete Wire Mesh Rolls by Specification
Compare the most requested concrete mesh roll sizes, gauges, and finishes before you request a quote.
6 x 6 in W1.4 x W1.4 rolls
The standard 10 gauge concrete wire mesh roll for residential slabs and sidewalks.
4 x 4 in heavy WWR rolls
Heavier welded wire reinforcement rolls for floors and pavements.
Galvanized concrete wire mesh rolls
Zinc-coated rolls for moisture, salts, or outdoor exposure.
Cut-to-length rolled strips
Narrow rolls trimmed to drawing width for strips and patches.
How to Choose Concrete Wire Mesh Rolls
Get the specification right before you buy: undersized steel cracks, oversized steel wastes money.
Match gauge to slab
Undersized rolls let cracks run; oversized rolls waste money. 4 in residential slabs commonly use 10 gauge W1.4; loaded floors step up to 6 gauge or heavier.
Pick the opening
A too-wide opening gives weak crack control. 6 x 6 in suits most flatwork; 4 x 4 in adds steel for heavier loads.
Rolls vs sheets
Rolls suit narrow strips, patches, and smaller crews; sheets place faster over large slab areas. Choosing wrong adds freight and cutting waste.
Black vs galvanized
Black steel serves interior slabs; use galvanized concrete wire mesh rolls for moisture, salts, or outdoor exposure to avoid rust stains and weakening.
Why Buyers Choose Concrete Wire Mesh Rolls
Unreinforced concrete cracks; tied rebar is slow and expensive. Rolled mesh fixes both without overpaying for steel.
Stops random slab cracks
Unreinforced concrete develops random shrinkage cracks; distributed steel holds crack width and movement small.
Cuts rebar labor
No tying bars on strips, curbs, or patches — crews unroll, cut to length, and place mesh in minutes.
Lower freight and steel cost
Coils load densely with less space than flat sheets, and rolls usually cost less per square meter than rebar layouts.
Less on-site waste
Custom roll widths and cut-to-length strips reduce cutting loss on narrow pours and repairs.
Verified to ASTM A1064
Reinforcement supplied to ASTM A1064/A1064M on request, so your slab meets the standard buyers specify.
Concrete wire mesh rolls reinforce only when supported inside the slab, not when lying on the subgrade.
Installing Wire Mesh Rolls for Concrete Slab
Unroll and straighten
Cut the straps, unroll the mesh on the pour area, and trim to the required width.
Support on chairs
Set rolls on chairs or bolsters near mid-depth, or per the drawing.
Overlap adjacent rolls
Lap rolls one full mesh spacing plus 2 in, or as the engineer specifies.
Keep mesh off the ground
Mesh left on the subgrade adds almost no reinforcement value.
Concrete Wire Mesh Rolls Packing and Export
Commercial shipments of concrete wire mesh rolls need clear packing and logistics fields before pricing.
Rolled coils
Each concrete wire mesh roll strapped with protective edge guards against unwinding.
Pallet or loose
Palletized coils with film wrap, or loose coils banded for container loading.
Quantity basis
Quote by roll, square meter, ton, or full container.
Export delivery
Include destination port and trade term for freight costing.
Custom counts
Confirm rolls per bundle, coil diameter, and lifting method for site handling.
Concrete Wire Mesh Rolls in Use
Typical supply scenarios from recent export orders of concrete wire mesh rolls.

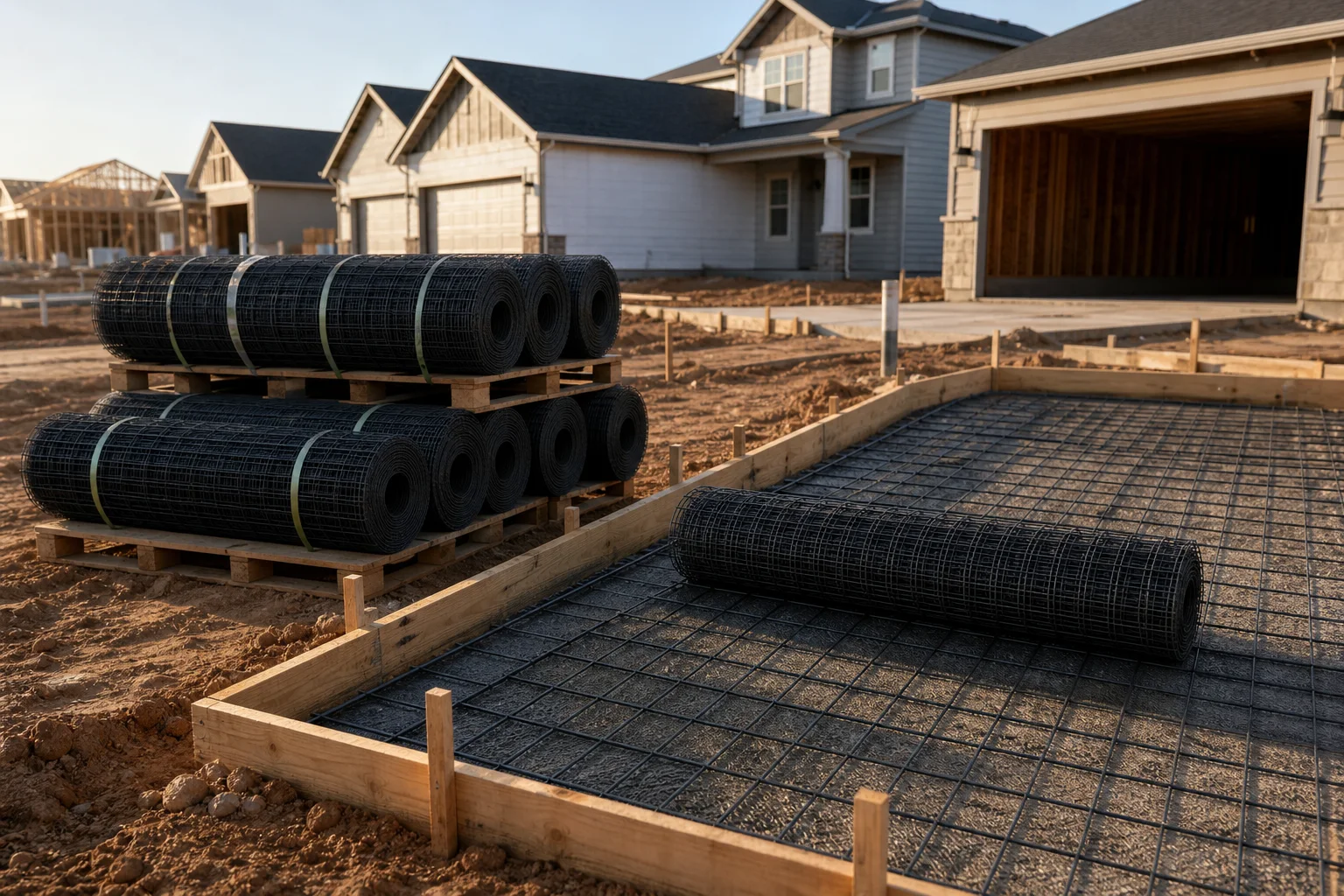

Residential slab program
6 x 6 in W1.4 rolls palletized for a housing developer's flatwork schedule.

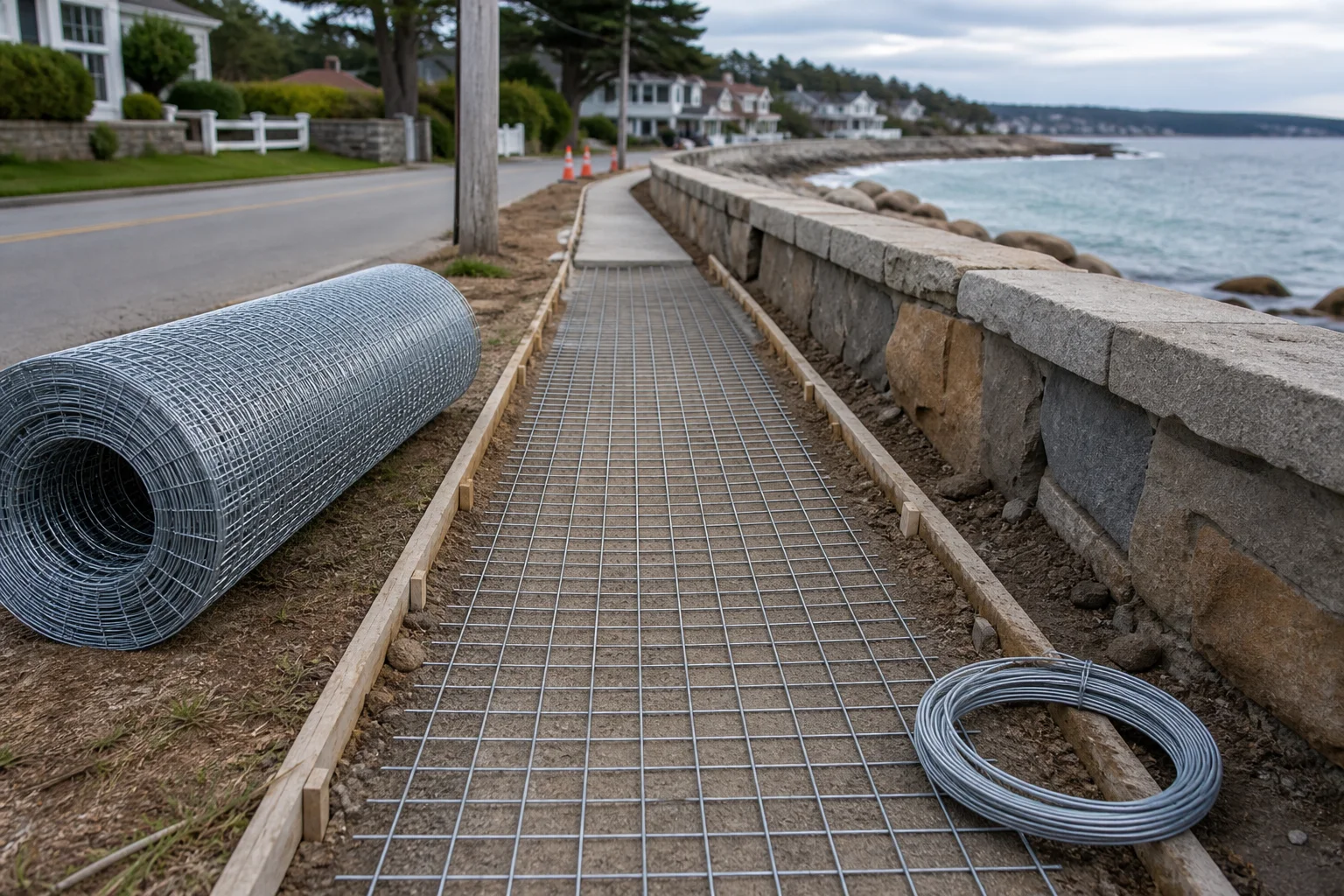

Sidewalk renewal
Galvanized rolls for a coastal municipality patch and footpath program.

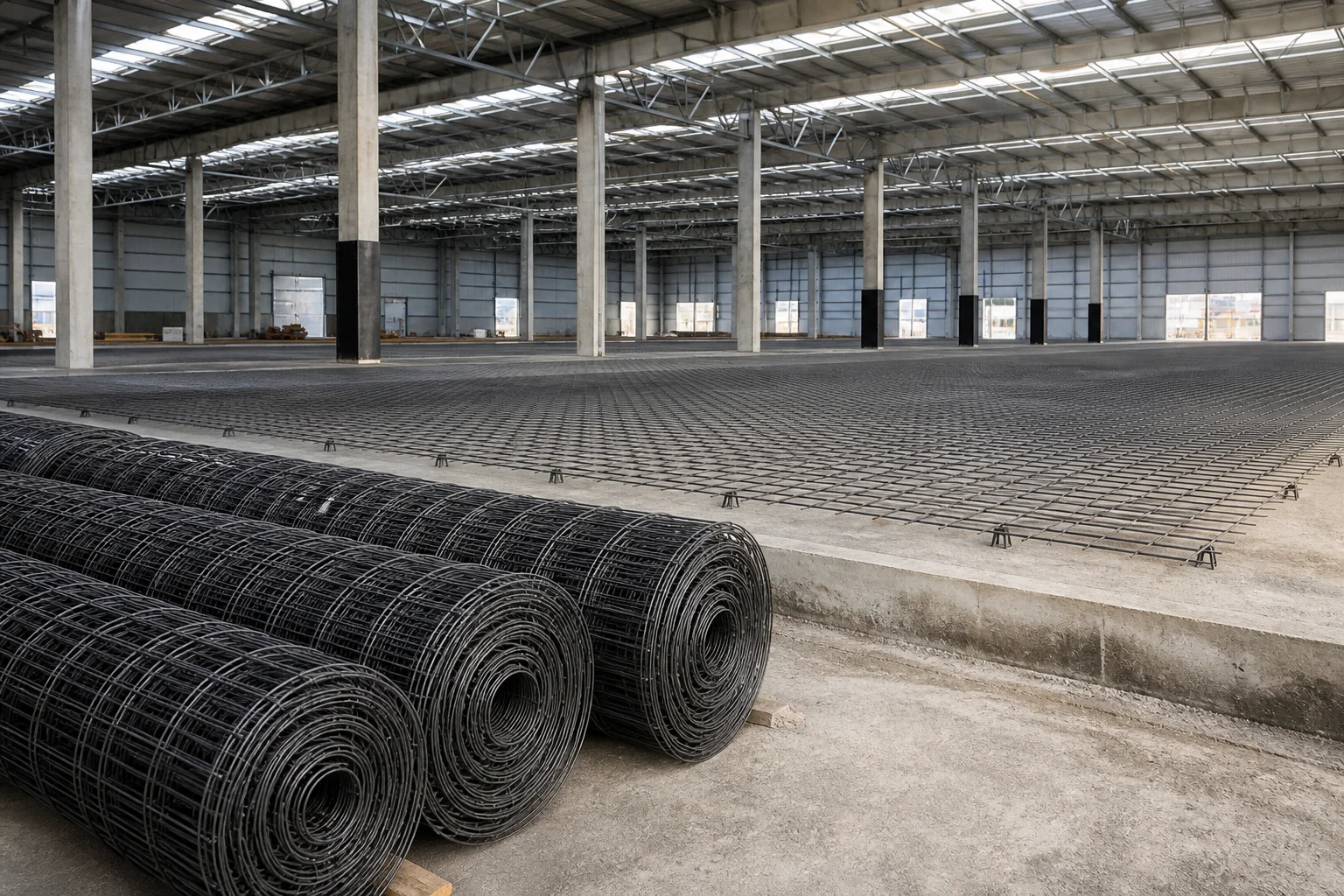

Warehouse floor
Heavy WWR rolls supplied by container for a logistics hub slab.
Foundation strips
Cut-to-length rolled mesh matched to strip footing drawings.
Concrete Wire Mesh Rolls Sourcing Resources
Compare related mesh categories and reinforcement standards. Confirm the edition and project requirements before ordering.
Last updated: 2026-08-13
Related pages
Concrete Wire Mesh Rolls FAQ
Common questions buyers ask before ordering concrete wire mesh rolls.
Need a specific roll width or gauge?
Send your drawing or specification and we will confirm availability, MOQ, and lead time.
Ask an engineerRequest Concrete Wire Mesh Rolls Pricing
Send opening, gauge, roll width, length, finish, quantity, and destination. We confirm specification, packing, and lead time for your concrete wire mesh rolls before quoting.
