Home/Standard Catalog/Chain-Driven Wire Mesh Conveyor Belt
SPU Code: SPU-WM-058Chain-Driven Endless Wire Mesh Belt

Chain-Driven Wire Mesh Conveyor Belt for Furnaces and Long Conveyors

This chain-driven wire mesh conveyor belt is listed in stainless steel or carbon steel, supplied as an endless belt with a bare finish. It is intended for furnace duties and long conveyor runs. Belt dimensions, mesh construction, chain pitch and drive interface are not specified as standard values, so confirm them against your conveyor before ordering.

Chat on WhatsAppRequest a Belt Quote
Belt construction and dimensions are confirmed for each conveyorListed ApplicationsChain-Driven Belt Specification ChecklistChain-Driven Conveyor Belt: Buyer Questions

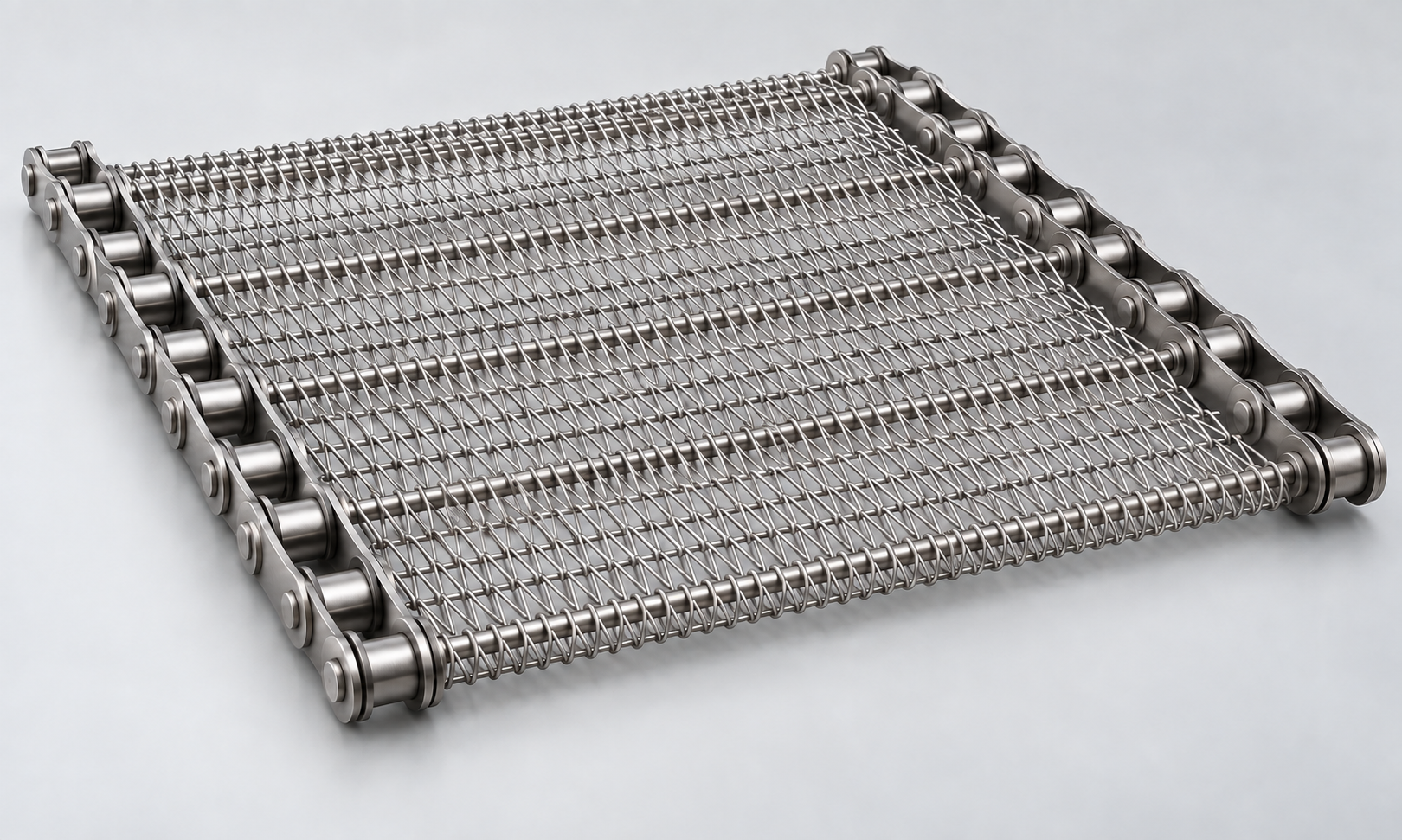

Illustrative configuration of a chain-driven wire mesh conveyor belt, showing side chains, transverse rods and a continuous metal mesh surface

Belt construction and dimensions are confirmed for each conveyor

No standard SKU dimensions or mesh measurements are published for this product. For a quote, provide the belt width and endless length, chain type and pitch, sprocket tooth count and relevant shaft details, mesh opening and wire dimensions, material grade, edge and joint requirements, operating temperature and furnace atmosphere, conveyed product and load, quantity, and destination. A conveyor drawing, photos, or a sample of the existing belt can help identify the required interface.

Don't see the specification you need? Ask about other options.

Tell us the product, specification, or application. You can inquire even if the details are incomplete.

Download the Full Wire Mesh Catalog

Get the complete catalog with specifications, applications, and ASTM compliance — as a PDF.

Request a Belt Quote

Send your conveyor drawing or belt dimensions, chain and sprocket details, required material grade, furnace conditions and product load. The confirmed requirements can be used to prepare a belt specification for review.

Chain-Driven Wire Mesh Conveyor Belt

Endless chain-driven wire mesh belt; dimensions and drive details are specified for the conveyor

Optional contact details

Your details stay private. We reply with a matched factory quote — no spam.

Prefer WhatsApp? Chat now

Privacy Policy

Your details stay private. We reply with a matched factory quote — no spam.

Reply within 2 business hoursLow MOQ · 7–15 day lead timeASTM E2016 · ISO 9001 · SGS

Listed Applications

The product record lists furnace service and long conveyors. Confirm whether the proposed belt construction, material grade, chain and drive interface suit your machine and process conditions before order release.

  • Furnaces
  • Long conveyor runs
Explore wire mesh conveyor belt applications→

Material and Operating Conditions

Specify the Required Material Grade

The product record lists stainless steel and carbon steel as material families but does not identify a grade, alloy composition or certificate. State the material designation and required documentation in your inquiry. Check the proposed material against the furnace temperature profile, atmosphere, cleaning method and other process exposure before approving the order.

No specific grade or alloy composition is recorded for this product. Confirm the required material designation and documentation before purchase.

Inputs for Belt Selection

  • Furnace conditions：Provide the operating and peak temperature, heating and cooling cycle, atmosphere and any contact with moisture or process chemicals. No operating temperature limit is published for this product.
  • Conveyed product and load：Describe the product size, weight, loading pattern, required support and belt speed. Confirm mesh opening and construction for the application; load capacity is not specified in the product record.
  • Chain and mesh interface：Provide the chain type and pitch, sprocket tooth count, shaft details and attachment arrangement. Confirm how the chain, transverse members and mesh connect and fit the existing conveyor.
  • Inspection and documents：State the dimensional checks, material documents, finish expectations and acceptance criteria required for the order. Agree these requirements before production.

Chain-Driven Belt Specification Checklist

The product record does not publish a standard SKU table, dimensions or an applicable belt tolerance standard. Use this checklist to describe the required construction and conveyor interface; confirm final values, tolerances and inspection criteria in the quotation and approved drawing.

SpecificationProduct RecordInformation to ProvideConfirm Before Production
Belt constructionChain-driven wire mesh; detailed pattern not specifiedDescribe the required mesh pattern and share a drawing or existing belt sampleApproved construction drawing or sample
MaterialStainless steel or carbon steelSpecify the required grade and furnace environmentMaterial designation and requested documents
Chain type and pitchNot specifiedProvide chain identification, pitch and relevant dimensionsAgreed chain specification and fit
Sprocket and drive interfaceChain-driven pattern; interface not specifiedProvide sprocket tooth count, pitch, shaft details and machine drawingEngagement and alignment with conveyor drive
Belt width and chain spacingNot specifiedProvide overall width, distance between chain centers and measurement referencesFinished dimensions and tolerances against the machine
Endless length and jointEndless belt; length and joint not specifiedProvide belt travel length and describe the joint or splice requirementLength measurement method and approved joint detail
Mesh and transverse membersWire mesh belt; dimensions not specifiedProvide mesh opening, wire diameter, cross-member spacing and product support needsAgreed construction dimensions and inspection method
Process conditionsFurnaces and long conveyors are listed applicationsState temperature profile, atmosphere, belt speed, product size and loadApplication and material review
Finish and acceptanceBare finishSpecify edge details, inspection needs and requested material documentsWritten acceptance criteria before production

Industry References for Chain-Driven Belts

  • “Chain attached on both sides of normal wire conveyor belt. Belt and chain are matched by stay pin.”Kansai Wire Netting, Chain Driven Conveyor BeltIndustry example describing one chain-to-belt construction. It does not define the construction or interface supplied for this product.
  • “Chain driven conveyor belts offer precise movement and tracking, especially in high-temperature environments”Wire-Mesh Products, Chain Conveyor BeltsIndustry description of chain-driven belts and common application context; it does not establish this product's performance or temperature limits.
  • “we need your belt’s geometry, drive method and operating conditions”Wire Mesh Belt Co., Wire Mesh Belt FAQsIndustry guidance on information used to identify a belt for quotation; confirm this product's requirements with its approved specification.

Chain-Driven Conveyor Belt: Buyer Questions

Related Products and Guidance

Browse all products
Balanced Weave Wire Mesh Conveyor Belt

Balanced Weave Wire Mesh Conveyor Belt

Carbon steel / stainless steel · mesh

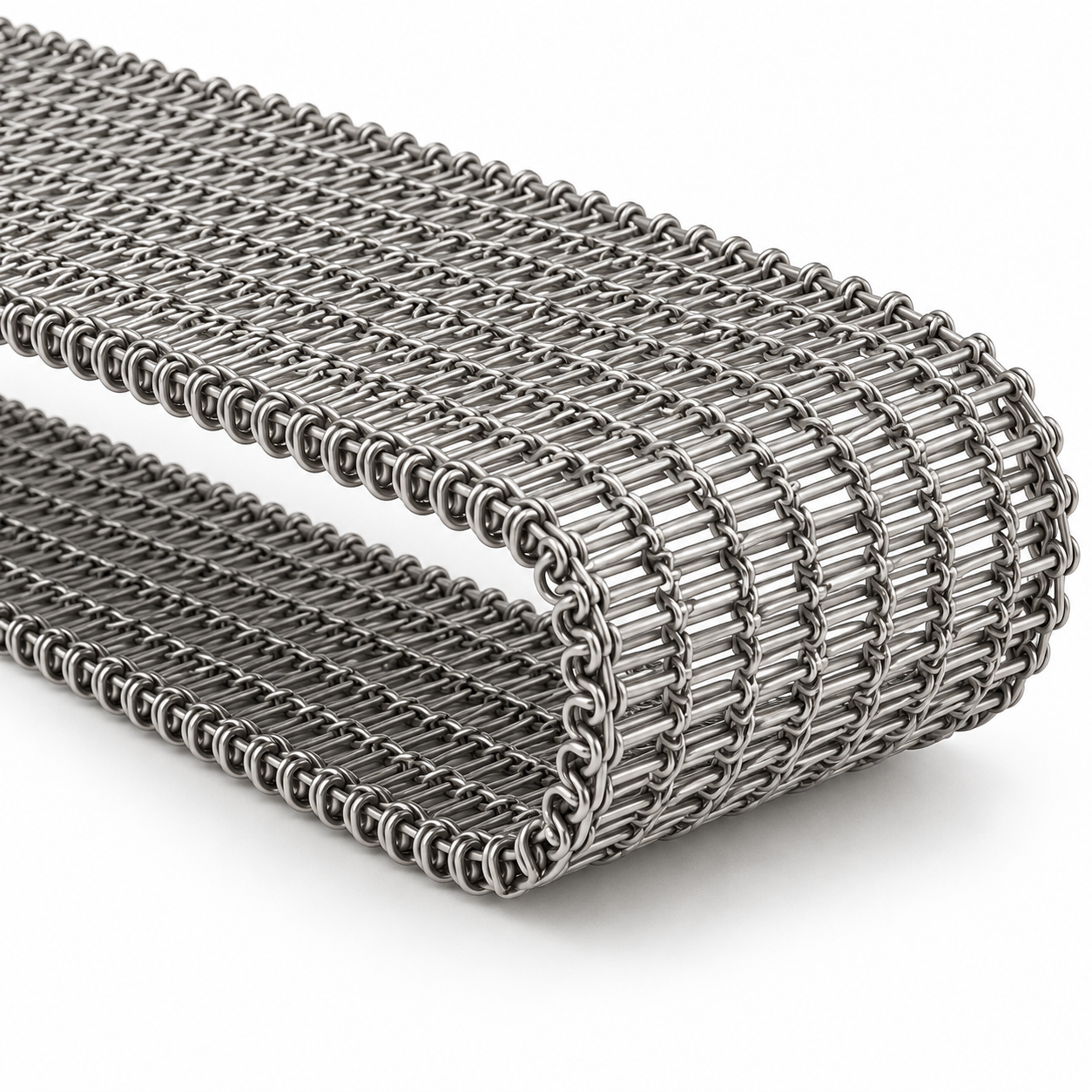

Compound Balanced Weave Conveyor Belt

Compound Balanced Weave Conveyor Belt

Stainless steel · mesh

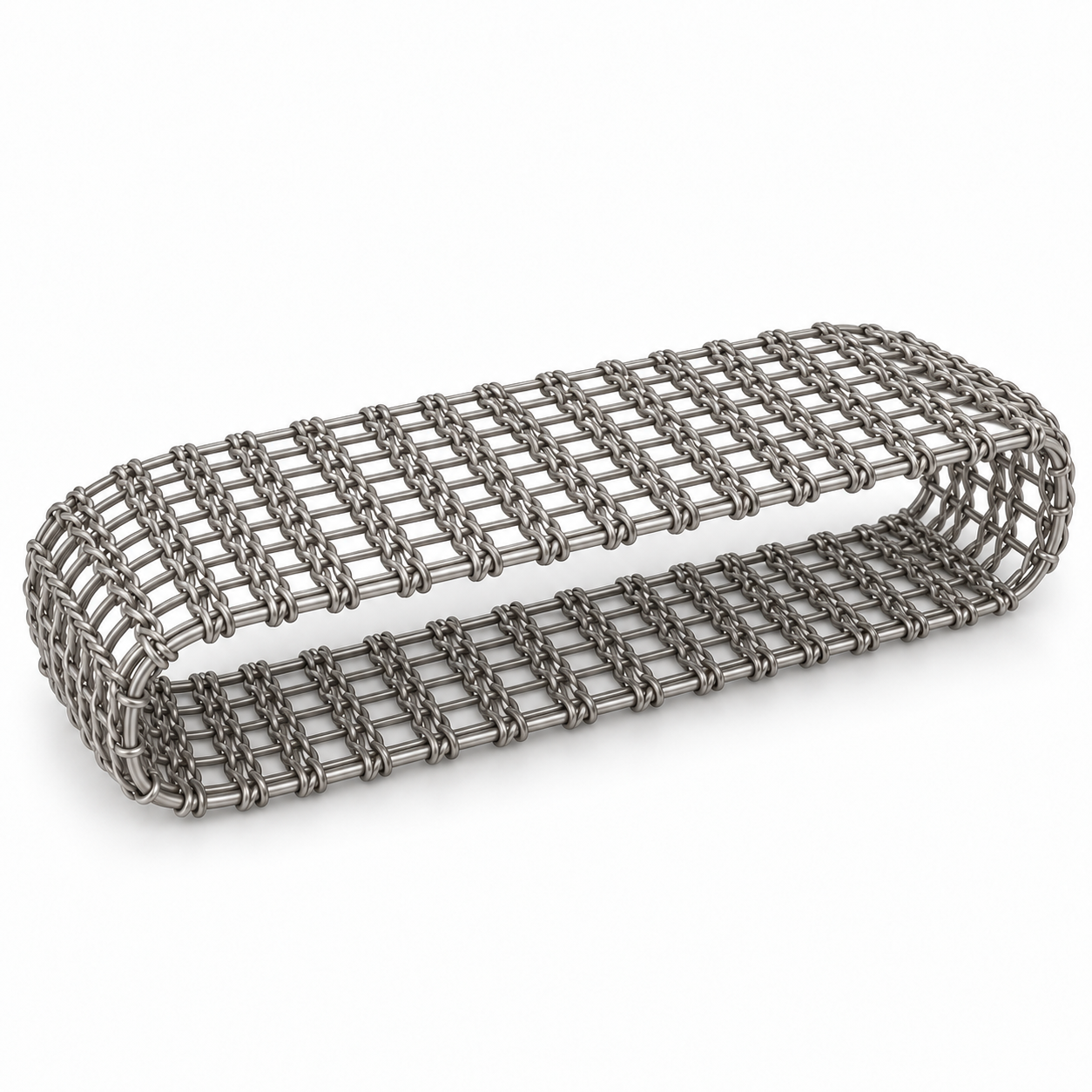

Double Balanced Weave Conveyor Belt
